Klipsch CP-4T - Page 3

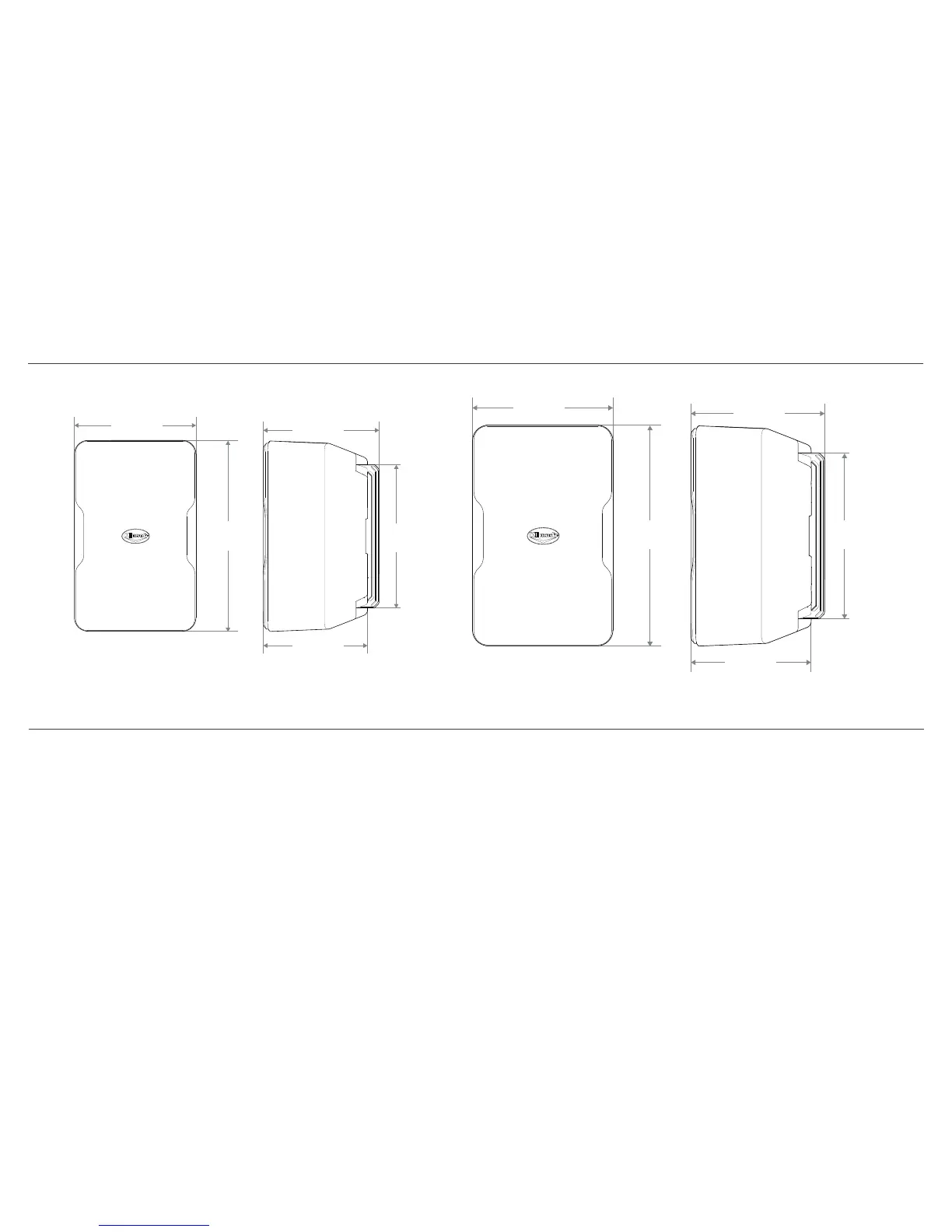

SPEAKER DIMENSIONS WITH/WITHOUT INCLUDED BRACKETS
CP-4T
CP-6T
Tools/Parts Needed For Installation:
a) A level
b) A pencil
c) A Philips #2 screwdriver or Phillips #2 bit with a drill with a LOW TORQUE SETTING
d) Two #10 or #12 2.5-3 inch (4-5cm) Pan Head Screws for each speaker for mounting into wall
stud OR minimum 10 lb. (5 kg) Wall Anchors for mounting if stud unavailable
e) (If using Safety Cables) One 1” (2.5cm) long, 1/4”- 20-thread screw for each speaker
BEFORE SPEAKER INSTALLATION/CONNECTION
5.5”
(14.0cm)
8.8”
(22.4cm)
7.2”
(18.3cm)
5.5”
(14.0cm)
4.7”
(11.9cm)
7. 0”
(17.8cm)
11.0”
(27.9cm)
9.4”
(23.9cm)
6.9”
(17.5cm)
6.1”
(15.5cm)
