Klipsch Synergy Series KSW-100 - Page 8

9

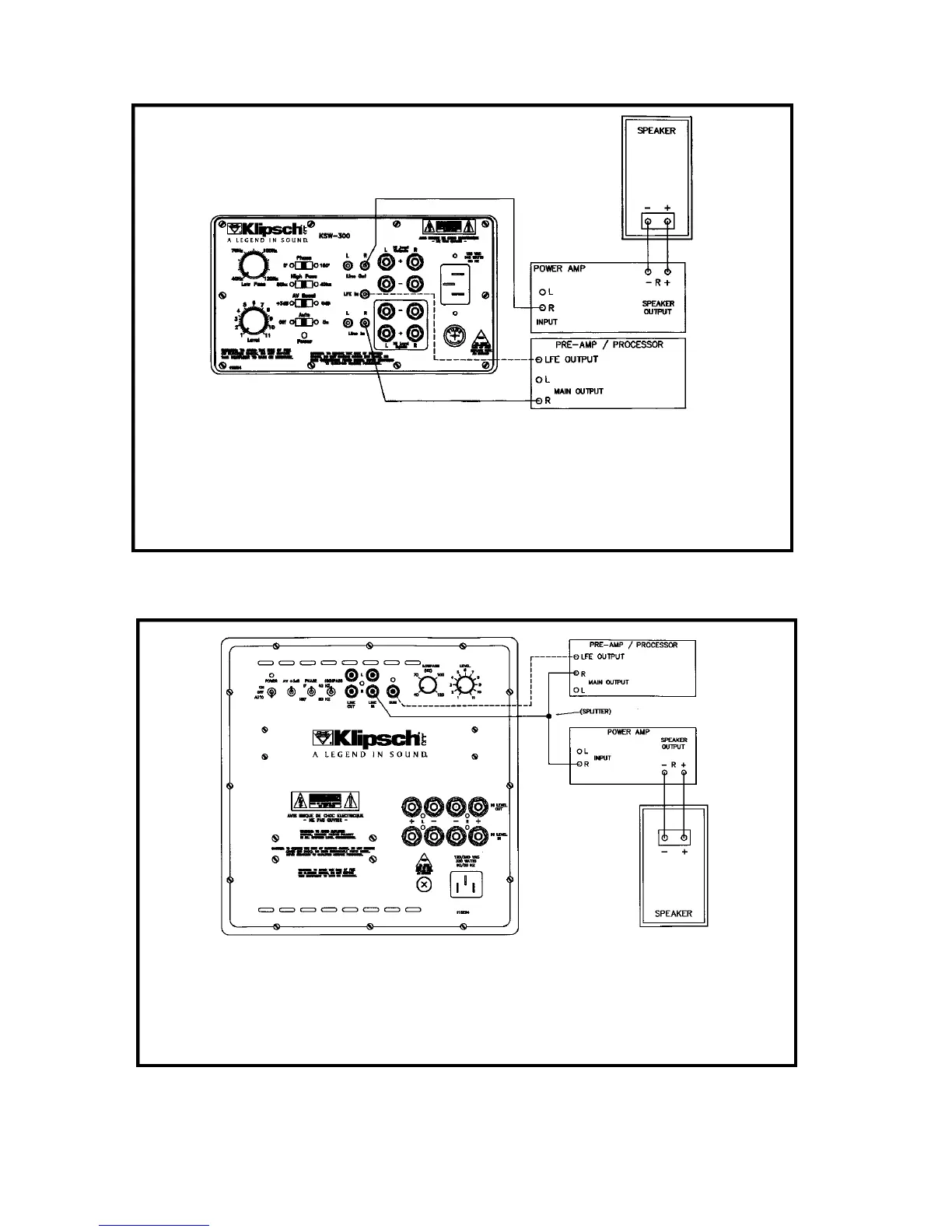

Figure C
Figure D
KSW 300
INPUT PANEL
• Main Speakers, Limited Range / Line Level Connections
• One Channel Shown / Repeat for Opposite Channel
• Optional LFE Connection Shown
• Separate Pre-amp and Power Amp Shown / Integrated Components
Require Pre-amp Outputs and Main Amp Inputs
KSW 100, 150, 200
INPUT PANEL
• Main Speakers, Full Range / Line Level Connections
• One Channel Shown / Repeat for Opposite Channel
• Optional LFE Connection Shown
• Separate Pre-amp and Power Amp Shown / Integrated Components
Require Pre-amp or Subwoofer Outputs
