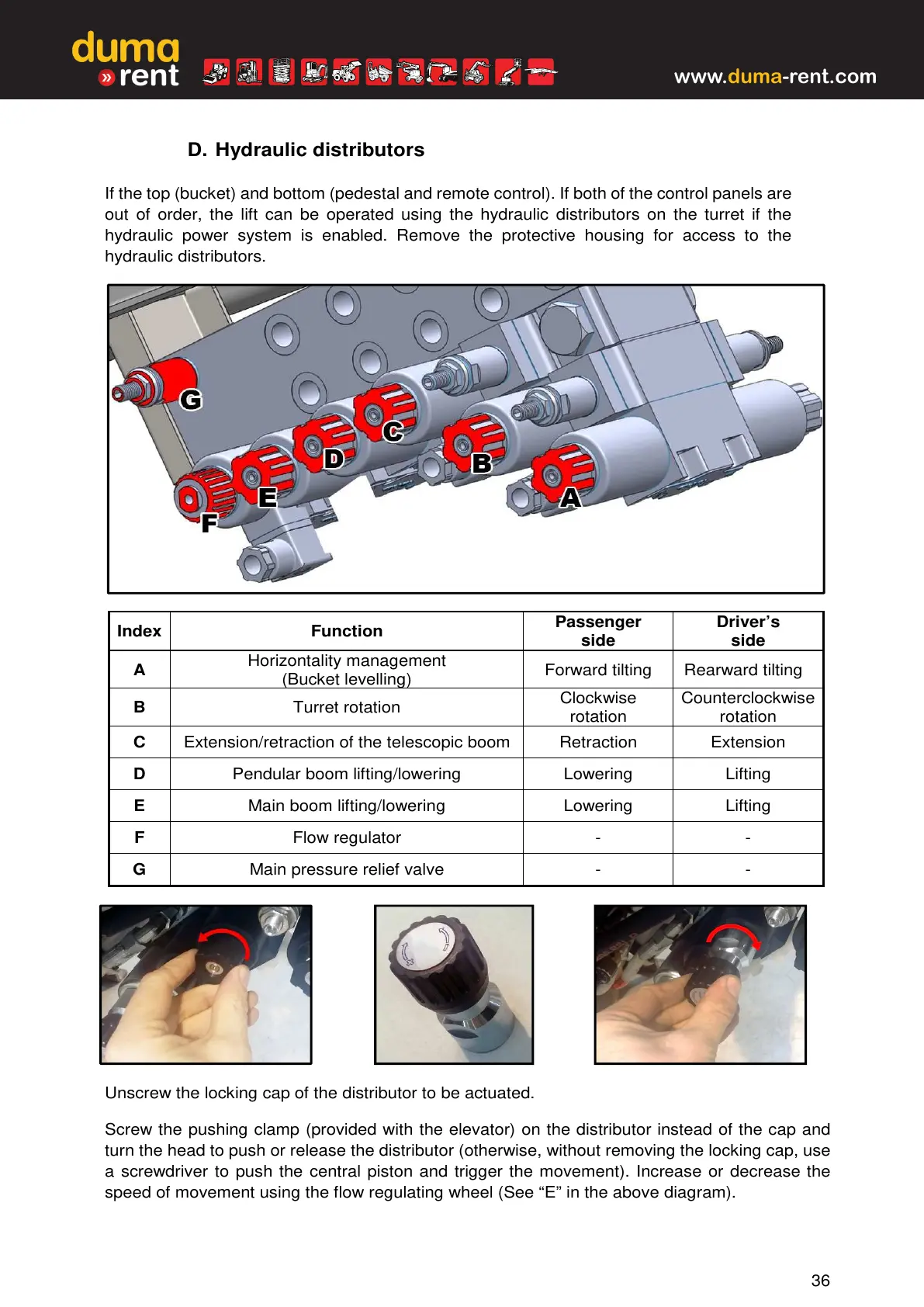

D. Hydraulic distributors
If the top (bucket) and bottom (pedestal and remote control). If both of the control panels are
out of order, the lift can be operated using the hydraulic distributors on the turret if the
hydraulic power system is enabled. Remove the protective housing for access to the
hydraulic distributors.
Index
C Extension/retraction of the telescopic boom Retraction Extension
D Pendular boom lifting/lowering Lowering Lifting
E Main boom lifting/lowering Lowering Lifting
F Flow regulator - -
G Main pressure relief valve - -
Unscrew the locking cap of the distributor to be actuated.
Screw the pushing clamp (provided with the elevator) on the distributor instead of the cap and
turn the head to push or release the distributor (otherwise, without removing the locking cap, use
a screwdriver to push the central piston and trigger the movement). Increase or decrease the
speed of movement using the flow regulating wheel (See “E” in the above diagram).
