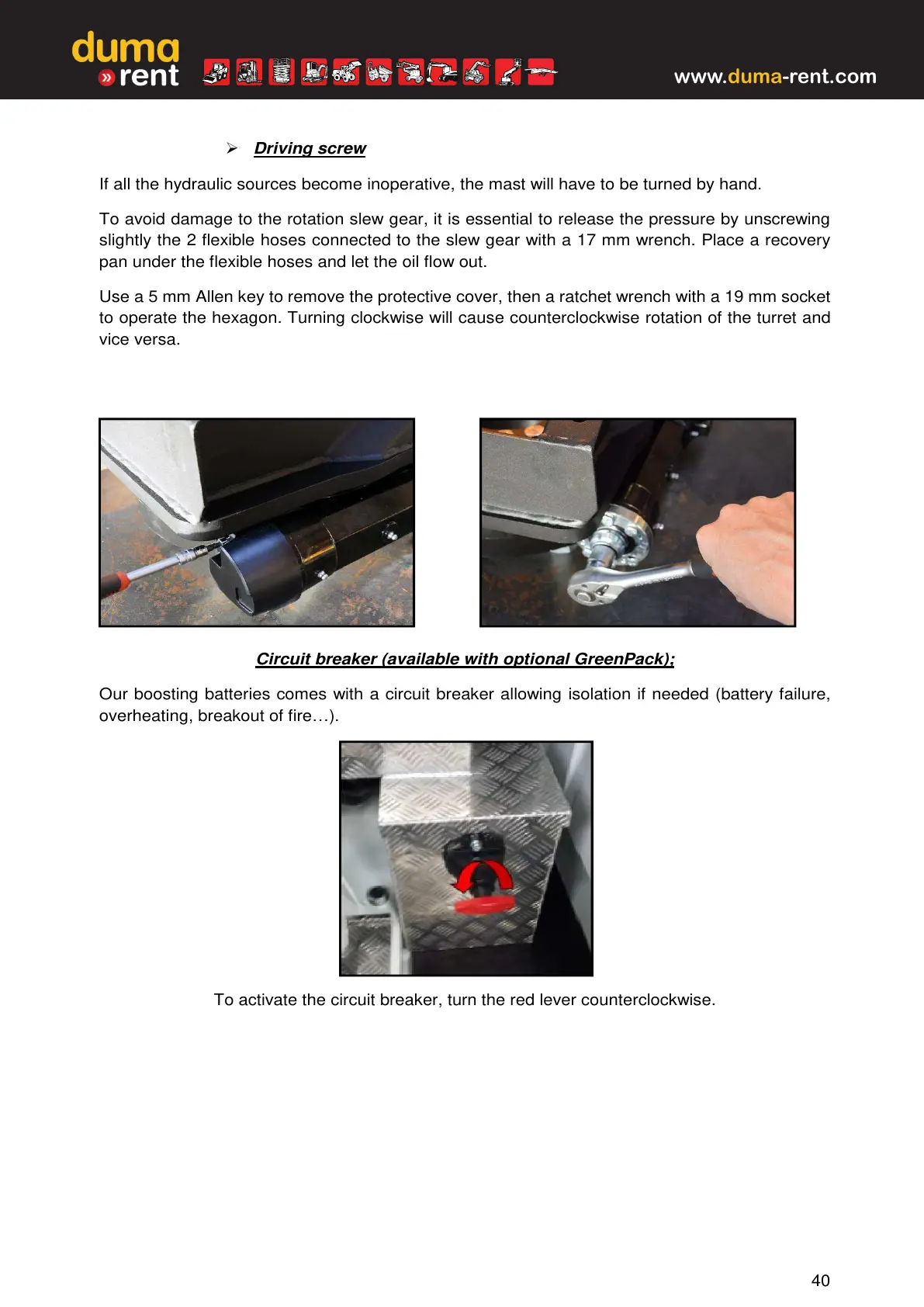

Driving screw
If all the hydraulic sources become inoperative, the mast will have to be turned by hand.
To avoid damage to the rotation slew gear, it is essential to release the pressure by unscrewing
slightly the 2 flexible hoses connected to the slew gear with a 17 mm wrench. Place a recovery
pan under the flexible hoses and let the oil flow out.
Use a 5 mm Allen key to remove the protective cover, then a ratchet wrench with a 19 mm socket
to operate the hexagon. Turning clockwise will cause counterclockwise rotation of the turret and
vice versa.
Circuit breaker (available with optional GreenPack);
Our boosting batteries comes with a circuit breaker allowing isolation if needed (battery failure,
overheating, breakout of fire…).
To activate the circuit breaker, turn the red lever counterclockwise.
