Kobalt 0786032 - Handle Assembly; Wheel Assembly

1
2
kobalttools.com
8
2
G
CC
D
AA
B
GG
DD
EE
FF HH
JJ F
Hexagon bolt
M6 x 30mm
x 2
CC
Flat washer 6
x 2
JJ
Bolt M8 x 90mm
x 2
AA
Wheel sleeve
x 2
DD
Washer 14
x 2
EE
Washer 10
x 2
FF
Big flat washer 8
x 2
GG
Locking nut M8
x 2
HH
2

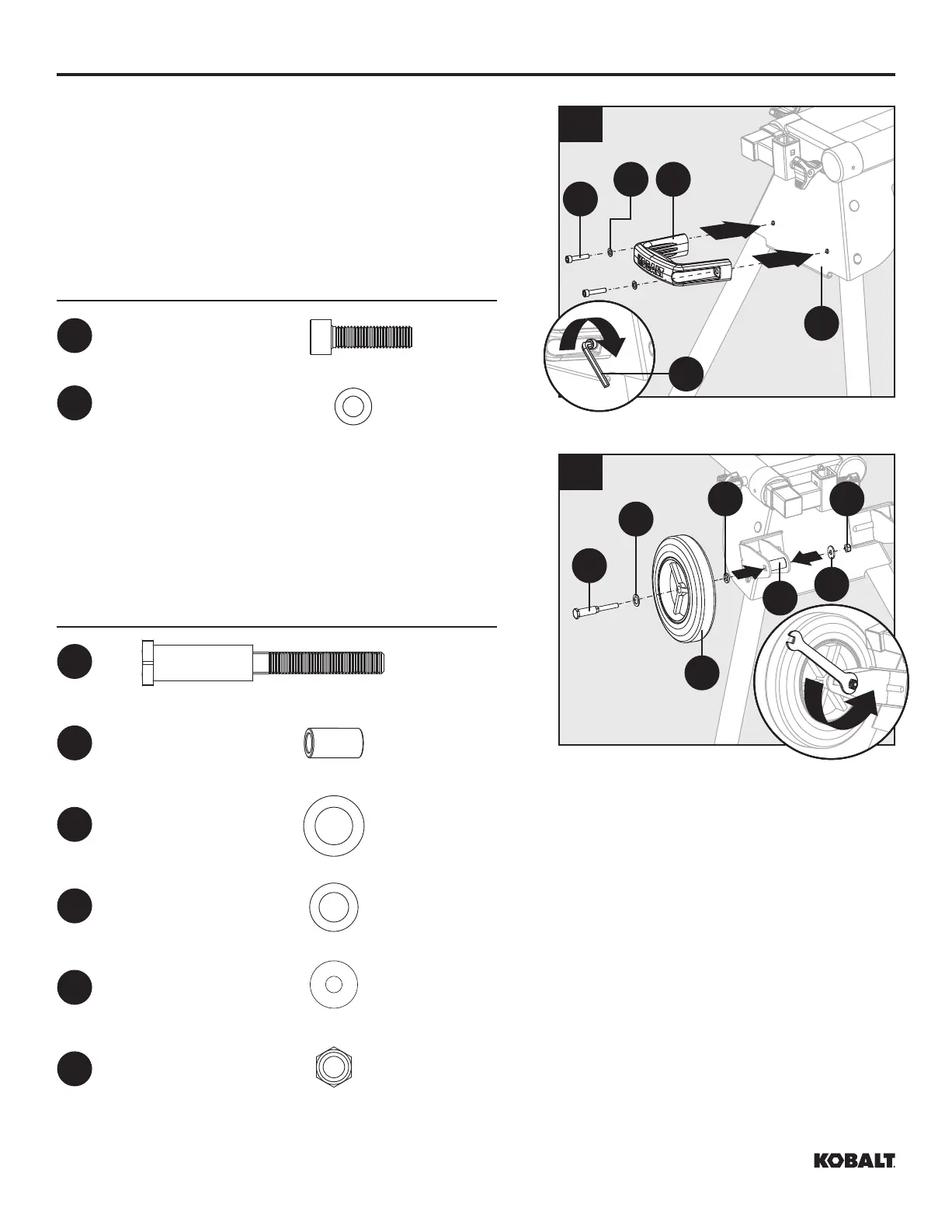

ASSEMBLY INSTRUCTIONS
STAND ASSEMBLY
1. Align the holes on the handle (F) with holes on the
miter saw stand (D). Insert the hexagon bolts M6 x 30
mm (CC) through flat washers 6 (JJ) and into the
mounting holes on the handle and miter saw stand.
Tighten the hexagon bolts M6 x 30mm (CC) with 5mm
hex key (G).
Hardware Used
2. Attach two wheels (B) to the miter saw stand (D) with
two bolts M8 x 90mm (AA), washers 14 (EE), washers
10 (FF), wheel sleeves (DD), big flat washers 8 (GG)
and locking nuts M8 (HH).
Tighten locking nuts M8 with 13mm open-end wrench
or adjustment wrench (not supplied).
Hardware Used
