ASSEMBLY
3. Attaching/Removing the Mulching Insert
WARNING
• Do not at any time make any adjustment to the
lawn mower without rst stopping the motor,
removing the battery pack, and waiting for the
blade to stop rotating.
a. Remove the battery.
b. Lift the rear-discharge door (P).
c. Grasp the handle of the mulching insert (U)
and fully insert it into the mower so that it is
securely seated.
d. Push the top of the mulching insert and insert it
into the mower. Check to see that it is securely
seated in the deck.
e. Release the rear-discharge door and make sure that it rests rmly against the mulching
insert.
f. To remove the mulching insert, lift the rear-discharge door, grasp the handle of the
mulching insert, and pull the mulching insert out
4. Attaching/Removing the Grass Bag
WARNING
• Do not at any time make any adjustment to the
lawn mower without rst stopping the motor,
removing the battery pack, and waiting for the
blade to stop rotating.
NOTICE: Remove the mulching insert or side-
discharge chute before attaching the grass bag on
the mower.
a. Remove the battery.
b. Adjust the handle to the Locked Storage Position
(please see Adjusting the Foldable Handle).
c. Lift the rear-discharge door (P).
d. Remove the mulching insert (U).
e. Hook the grass bag assembly on the pivot rod. Release the discharge door so that it rests
on the grass bag.
To Remove the Grass Bag
a. Lift the rear-discharge door on the mower. Lift the grass bag up and off the pivot rod.
b. Release the discharge door.
WARNING
• When using the grass bag, never operate the mower unless the hooks on the grass bag are
rmly seated on the pivot rod and the rear-discharge door rests rmly against the top of the
grass bag.
• Under normal usage, bag material is subject to wear. To reduce the risk of injury, frequently
inspect the bag assembly and replace if there are any signs of wear or deterioration. Use
only grass bags manufactured for this mower.

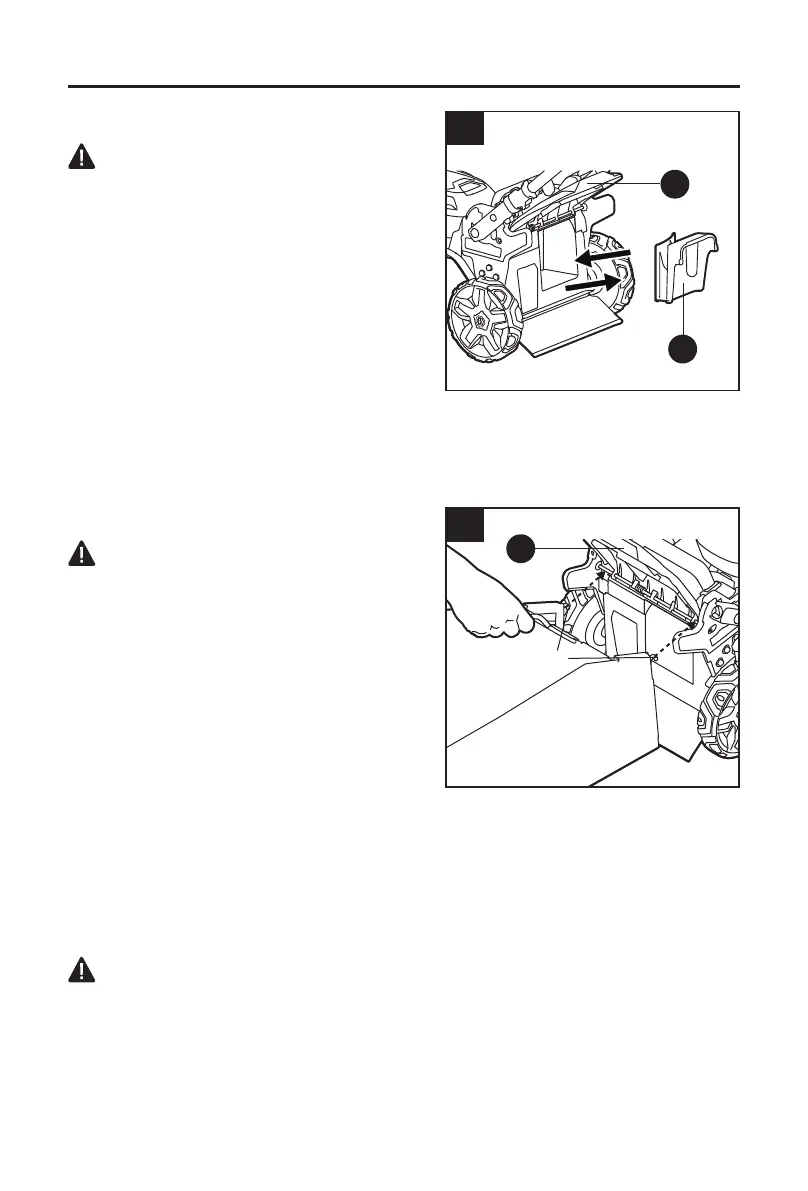

3
P
U
4
P
Hook
