Page #10 background imageLoading...
Page #10 background image
10

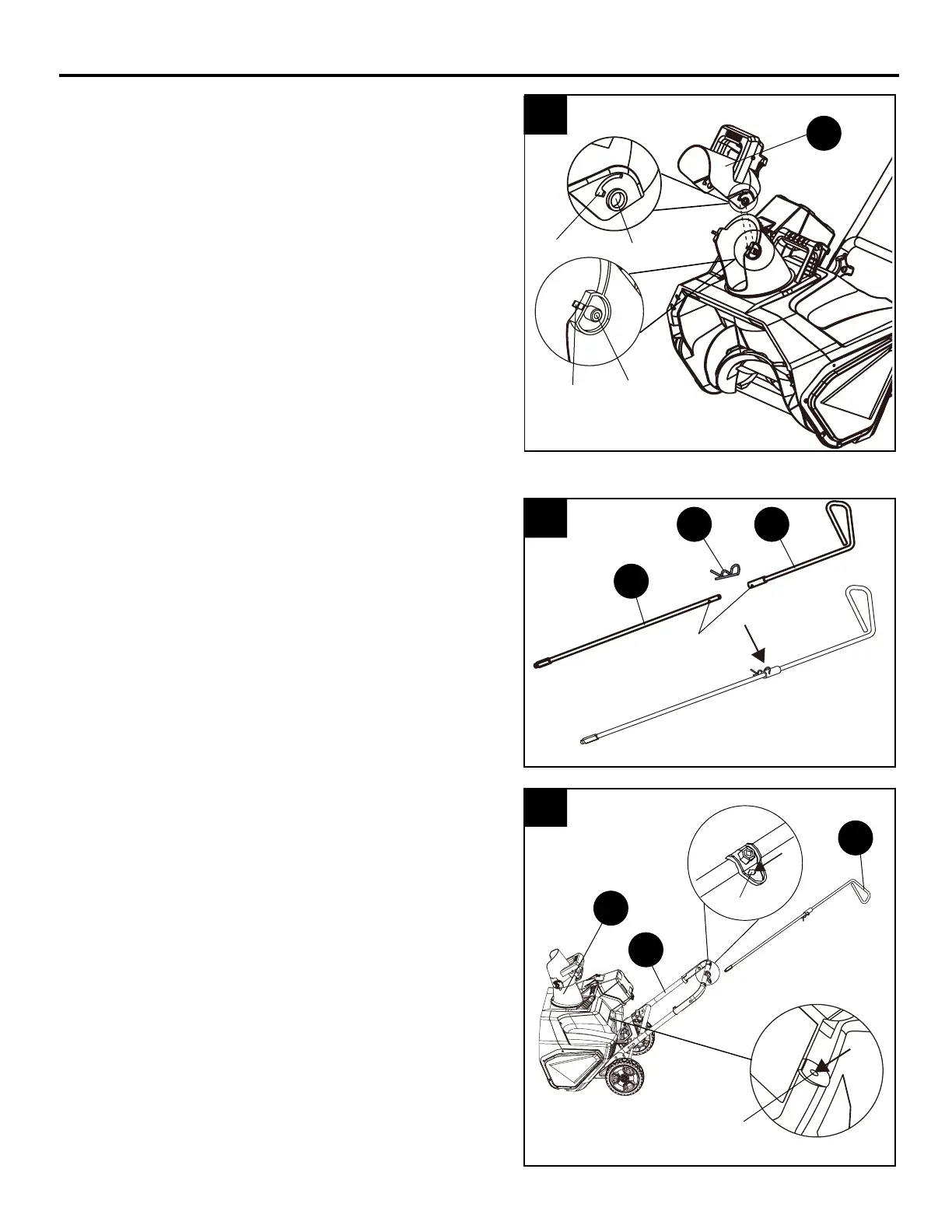

ASSEMBLY INSTRUCTIONS
3. INSTALLING THE CHUTE CONTROL ROD
3a. Align the holes on the upper chute control rod
(A) with the holes on the lower chute control
rod (B). Insert the hitch pin (DD).
NOTE: Position the discharge chute (I) so that it
faces forward.
3b. Insert the end of the chute control rod through
the keyed hole in the bracket that is attached
to the top of the middle handle (C).
Ensure that the handle (J) of the chute control
rod points upward and insert the rod into the
keyed hole in the back of the housing.
Firmly push the rod into the keyed hole in the
back of the housing until it snaps into place.
2a
E
Latching tab
Keyed holeSlot
Post
2. ASSEMBLING THE DISCHARGE CHUTE
2a. Push the chute deector (E) until the latching
tabs on both sides click into the slots and the
posts on both sides click into the keyed holes.
3a
A
B
DD
Holes
3b
I
Keyed hole
J
Keyed hole
C
