ASSEMBLY INSTRUCTIONS
4
5
6

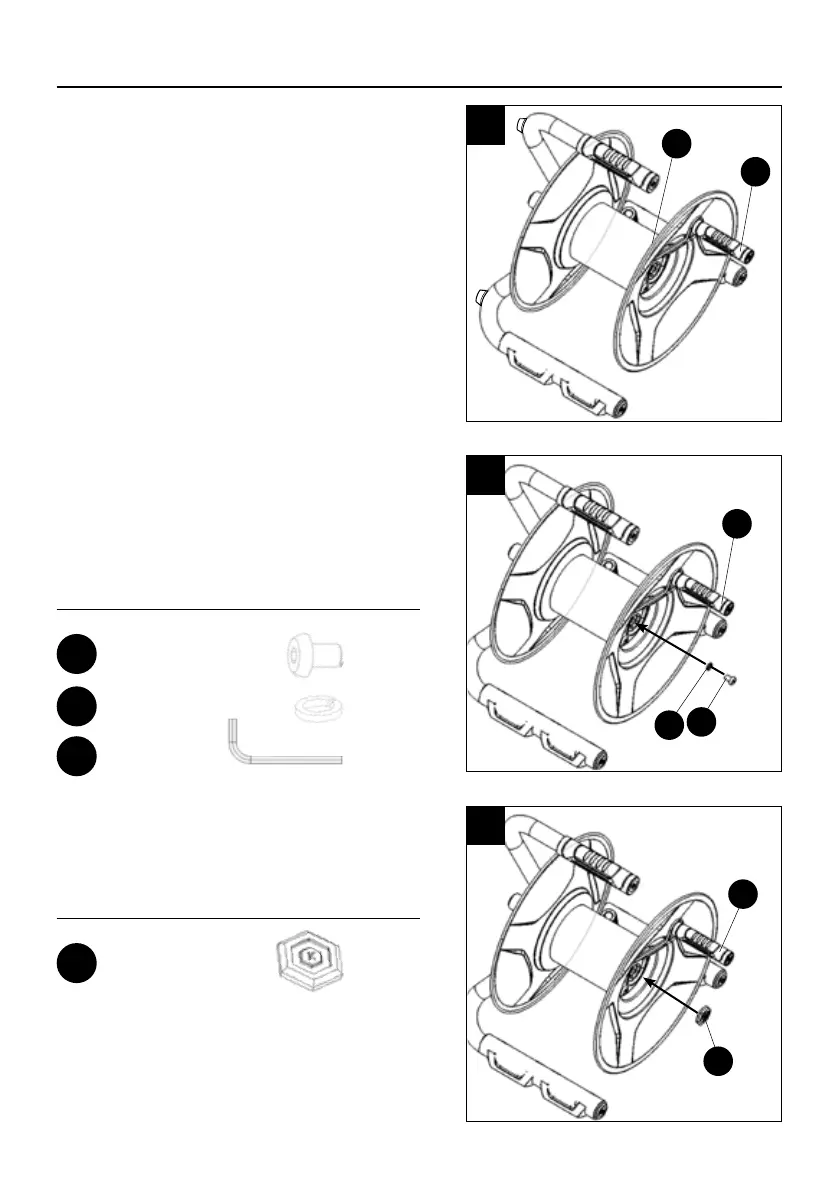

4. Insert crank handle (C) to the drum axle (A).
5. Insert M8 washer (DD) and M8 x 12 mm bolt
(CC) to the center axle.
Tighten the M8 x 12 mm bolt (CC) using
M8 L-wrench (FF) by turning it clockwise.
6. Verify the crank handle is rmly installed, then
push on and install the crank handle cap (EE)
before use.
Hardware Used
Hardware Used
M8 x 12 mm Bolt
M8 Washer
M8 L-Wrench
x 1
x 1
x 1
CC
DD
FF
Crank Handle Cap x 1
EE
C
C
C
DD
CC
A
EE
