ASSEMBLY INSTRUCTIONS
1
2

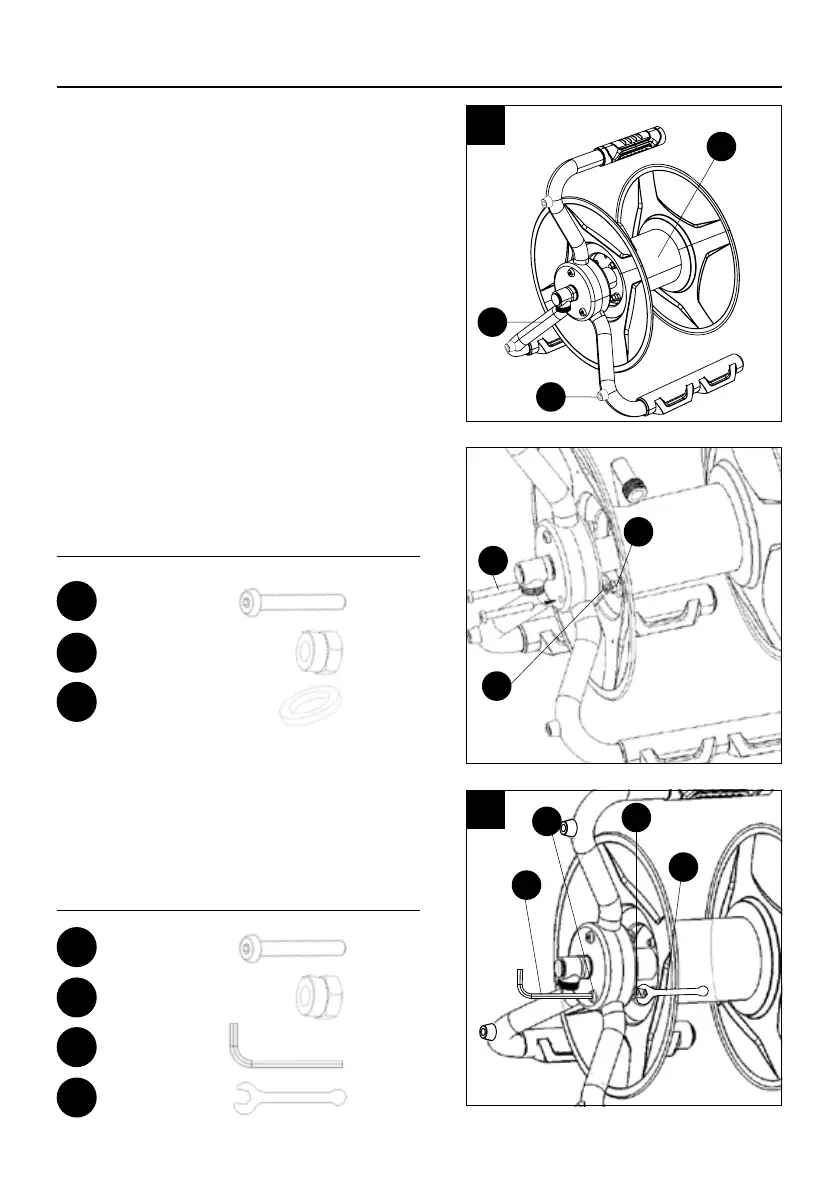

1. Fully insert leg (B) and leg (E) into the hub.
2. Insert M8 x 60mm bolt (AA) through the hub, the
leg, and M8 washer (HH) and then fasten into
M8 nut (BB).
3. Use M8 wrench (GG) to hold the M8 nut (BB)
in place while using M8 L-wrench (FF) to
tighten the M8 x 60 mm bolt (AA) by turning
it clockwise.
Hardware Used
Hardware Used
M8 x 60 mm Bolt x 2
AA
M8 x 60 mm Bolt x 2
AA
M8 L-Wrench x 1
FF
M8 Nut x 2
BB
M8 Flat Wrench x 1
GG
B
E
BB
AA
HH
M8 Nut x 2
BB
M8 Washer x 2
HH
3
FF
AA
GG
BB
A
