13

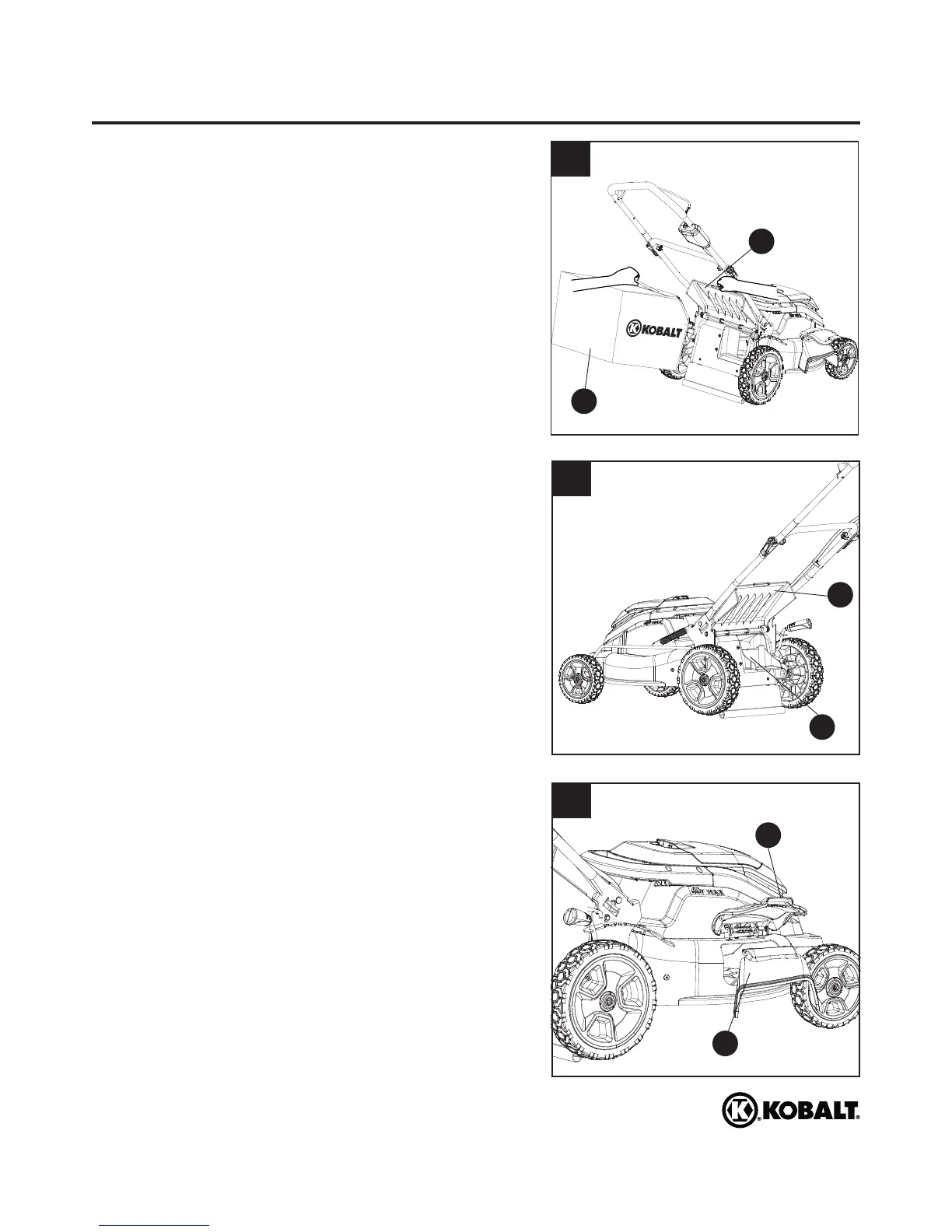

2. Installing the grass catcher bag
place under the chute cover so that the
hanger hooks on the grass catcher frame are
seated into the slots in the handle bracket.
installed correctly, the hooks on the grass
catcher will rest securely in the slots on the
handle brackets
2
K
D
ASSEMBLY INSTRUCTIONS
3. Removing the mulching plug
discharge cover (K).
mulching plug (B) out using the handle.
requires some force to remove it.
install the grass catcher bag.
the grass catcher bag is removed.
3
K
B
4. Installing side discharge chute
(C) with the pins on the underside of the side
discharge cover (J).
on the mower deck are secured in the openings in
the side discharge chute (C).
Release the side discharge chute (C) and side
discharge cover (J).
4
C
J
