14

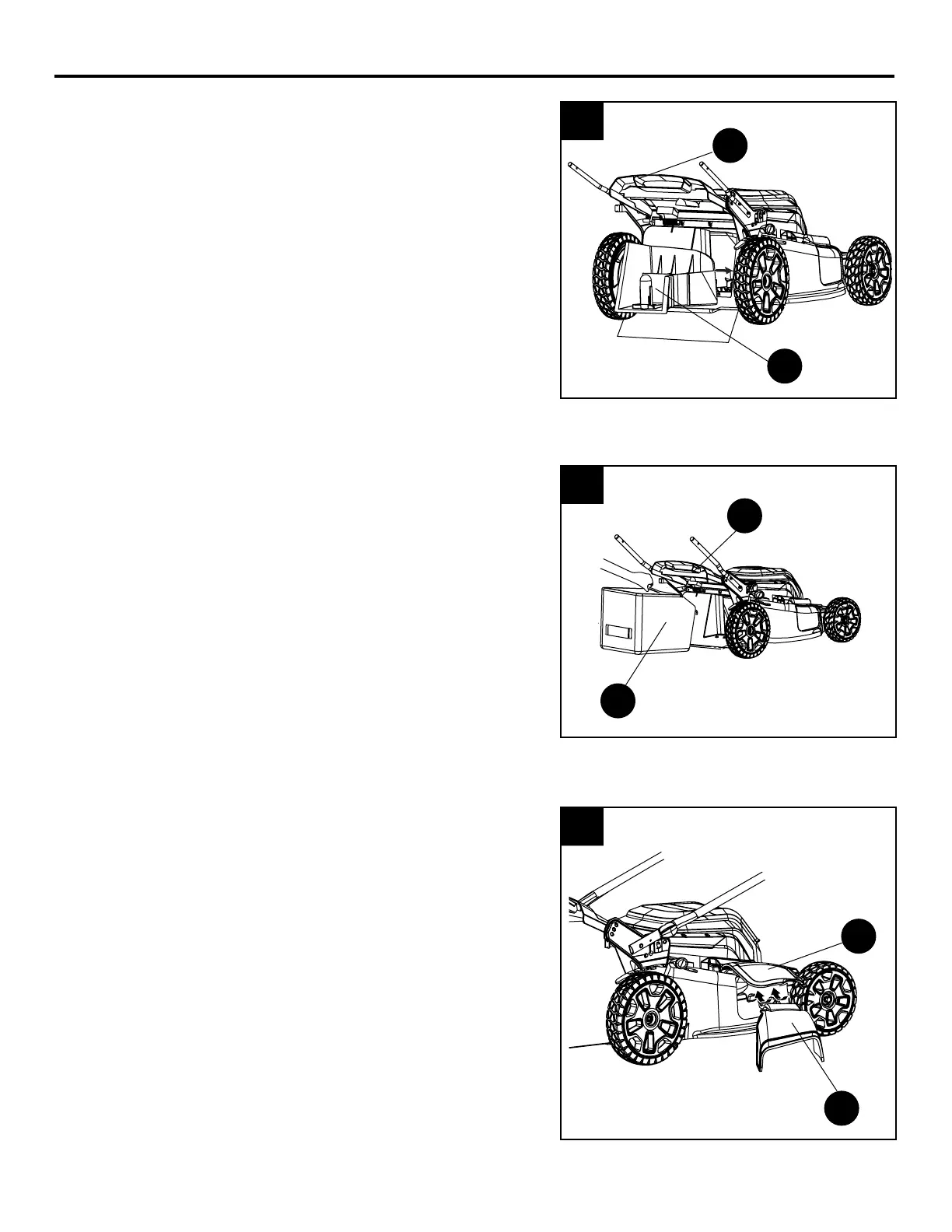

ASSEMBLY INSTRUCTIONS
• To remove the mulching plug (B), lift the rear
discharge door (H).
• Grasp the handle of the mulching plug (B). Using
this handle, lift and pull the mulch plug out.
• The mulching plug (B) is inserted at an angle, so it
requires some force to remove.
• The mulching plug (B) must be removed in order to
install the grass catcher bag.
• The mulching plug (B) must be re-installed when
the grass catcher bag is removed.
2. Removing the mulching plug
2
• Lift the rear discharge door (H).
• Lift the grass catcher (C) by its handle and place
under the rear discharge door so that the hooks on
the grass catcher are seated on the door rod.
• Release the rear discharge door (H). When
installed correctly, the hooks on the grass catcher
will extend through the openings on the rear
discharge door.
3. Installing the grass catcher bag
3
• Lift the side discharge cover (G).
• Align the grooves on the side discharge chute (D)
with the pins on the underside of the side discharge
cover (G).
• Lower the side discharge chute until the hooks on
the mower deck are secured in the openings of the
side discharge chute.
• Release the side discharge cover.
• Ensure the mulch plug is installed for side discharge
to operate correctly.
4. Installing the side discharge chute
4
G
D
C
H
H
B
To Next Page
