IV. - HOW TO ASSEMBLE THE PAD
Always unplug the machine before installing any accessory.
1. Unplug machine, secure handle tube in vertical position and lay down the machine turning it over wheels
until the underneath side of the machine is vertical and fully exposed.
2. Before laying down machine, place a clean towel on the floor to keep the Switch box from
scratching.
3. Install or replace pad. The pad should be replaced if it has become matted down to thickness of
3/8” or less.
4. Remove existing pad then center new pad over grip face. Press pad against grip face until the hooks
in the driver have set in the pad.
5. Return the machine to the upright position.
6. Do not operate this machine with out the pad in place.
7. Always leave a pad on the machine to protect the grip face from damage.
V.-HOW TO REPLACE RUBBER ISOLATORS (SHOCK ABSORBERS).
This unit works with 4 rubber isolators (shock absorbers) that reduce the vibration of the floor machine during
operation. If the unit vibrates or makes more noise than usual, then the replacement of the shock absorbers
may be necessary.
1. Always unplug the machine before replacing any part.
2. Follow instructions 1 & 2 on how to assemble the pad.
3. Remove the central part of the grip face pulling it off the pad driver.

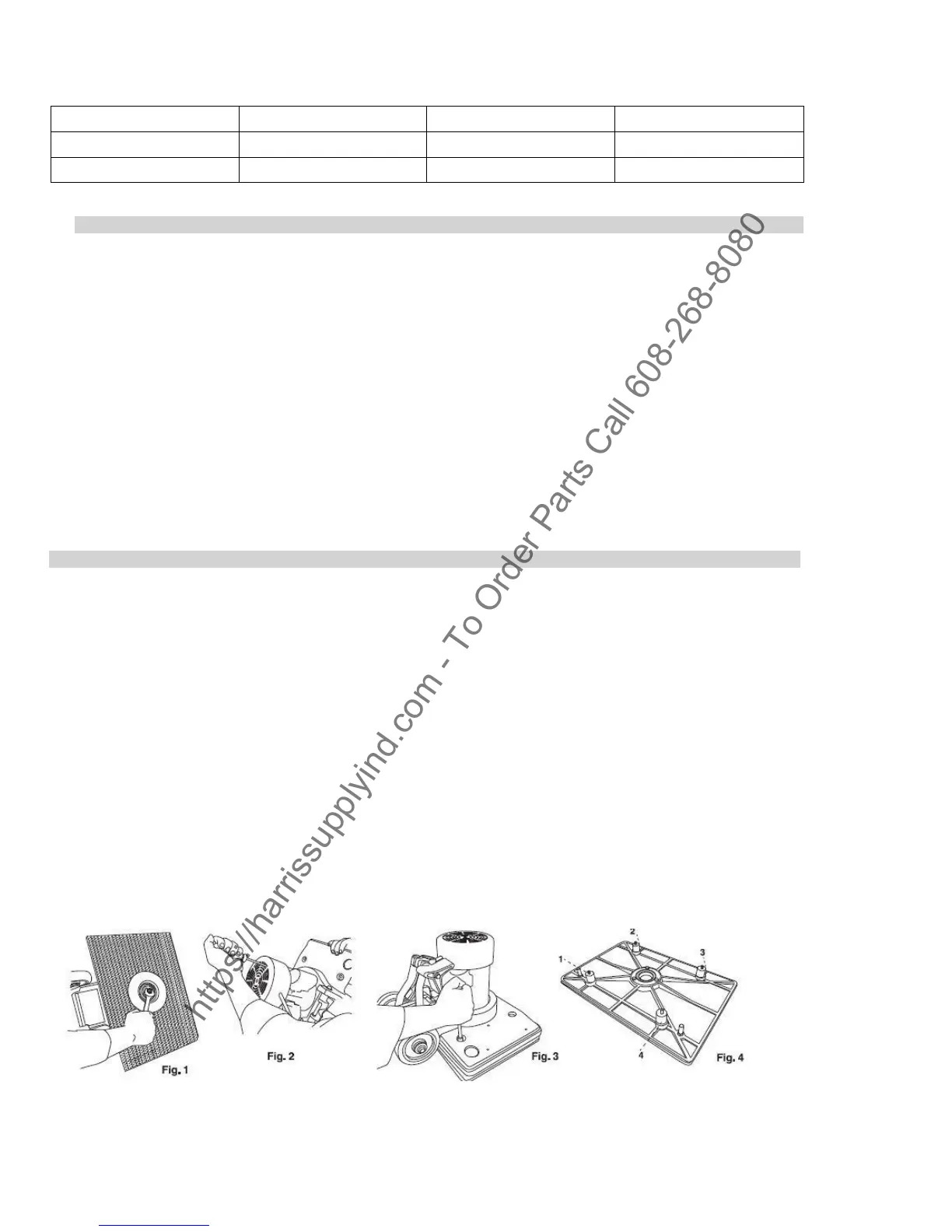

4. Remove the central screw on the bottom of the pad driver with a ¾ wrench (Fig. 1).
Note: To unscrew the central screw, you can use a screw driver to block the fan on top of the motor
(Fig. 2) this will hold the screw from spinning.
5. Remove the 4 screws that hold the pad driver with the chassis. (Fig.3).
6. Unscrew the 4 rubber isolators(shock absorbers) and replace with new ones (Fig. 4)
7. Follow the same instructions in reverse to reassemble the unit.
