Koblenz SP-2015 - Troubleshooting Chart

-6-
Updated: ABRIL-2016

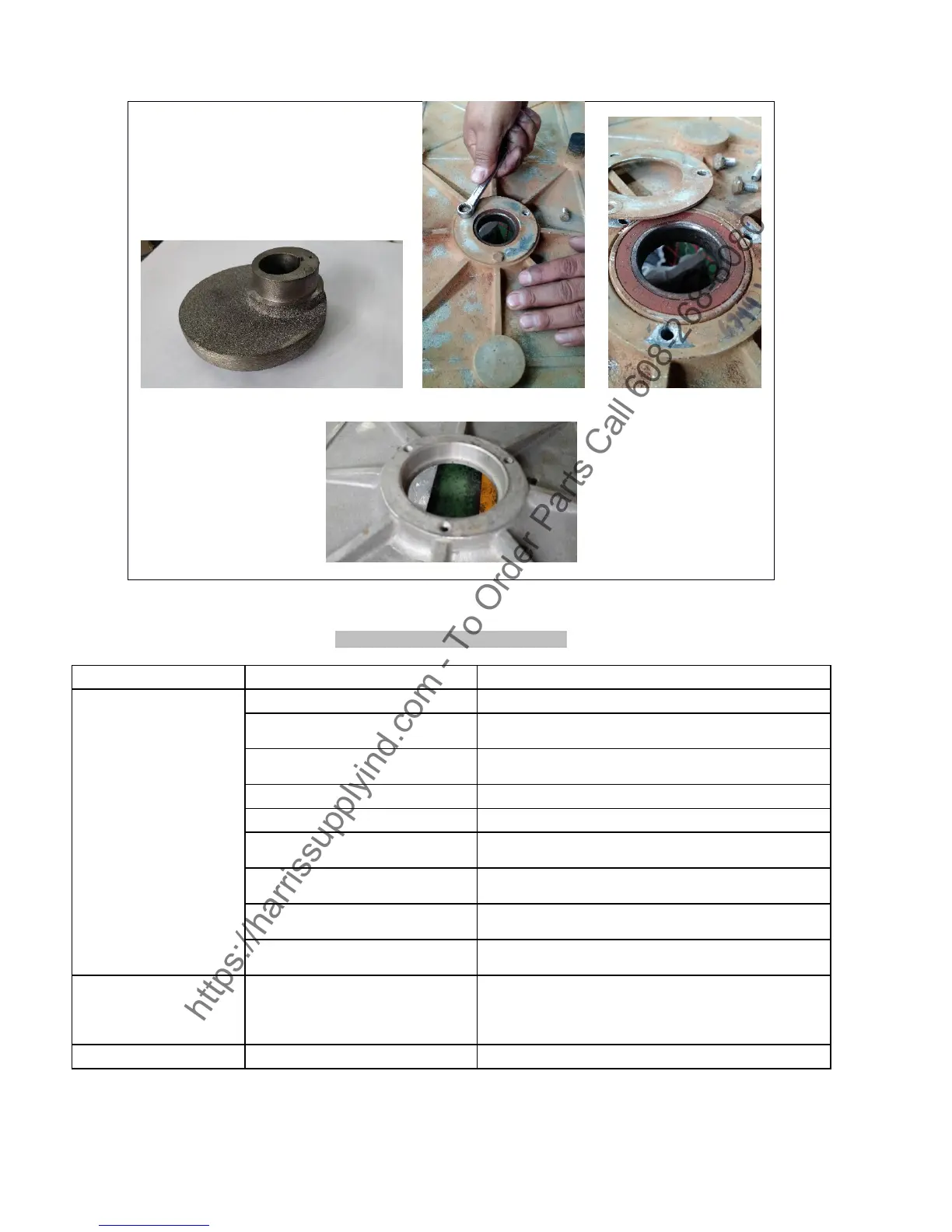

MAKE SURE THAT BOTH THE ORBITAL WEIGHT AND THE BEARING ARE NOT DAMAGED
OR WEAR, IF ARE DAMAGE OR WEAR, REPLACE IT
VI. –TROUBLE SHOOTING CHAR
FAILS
POSSIBLE CAUSE
SOLUTION
MOTOR DOESN`T
START
CONNECTED
CHECK CONNECTION
LINE CORD DAMAGE
CKECK LINE CORD AND REPLACE IF
NECESSARY
LINE CORD IMPROPERLY
CONNECTED
CHECK CONNECTION
MICROSWITCH DAMAGED
REPLACE MICROSWITCH
CAPACITOR DAMAGED
REPLACE CAPACITOR
MOTOR LINE CORD
DAMAGED
REPLACE MOTOR LINE CORD
MOTOR ASSEMBLY
DAMAGED
REPLACE MOTOR ASSEMBLY
IMPROPER MOTOR
CONNECTIONS
CHECK CONNECTIONS
SAFETY KNOB NOT
POSITIONED
POSITION SAFETY RELASE
MOTOR
DOESN’T
WORK
CORRECTLY
LOW VOLTAGE
CHECK VOLTAGE (LINE 120 V~ )
MOTOR NOYSE
BEARIG DAMAGED
REPLACE BEARING
