Kockum Sonics TI 96 User Manual

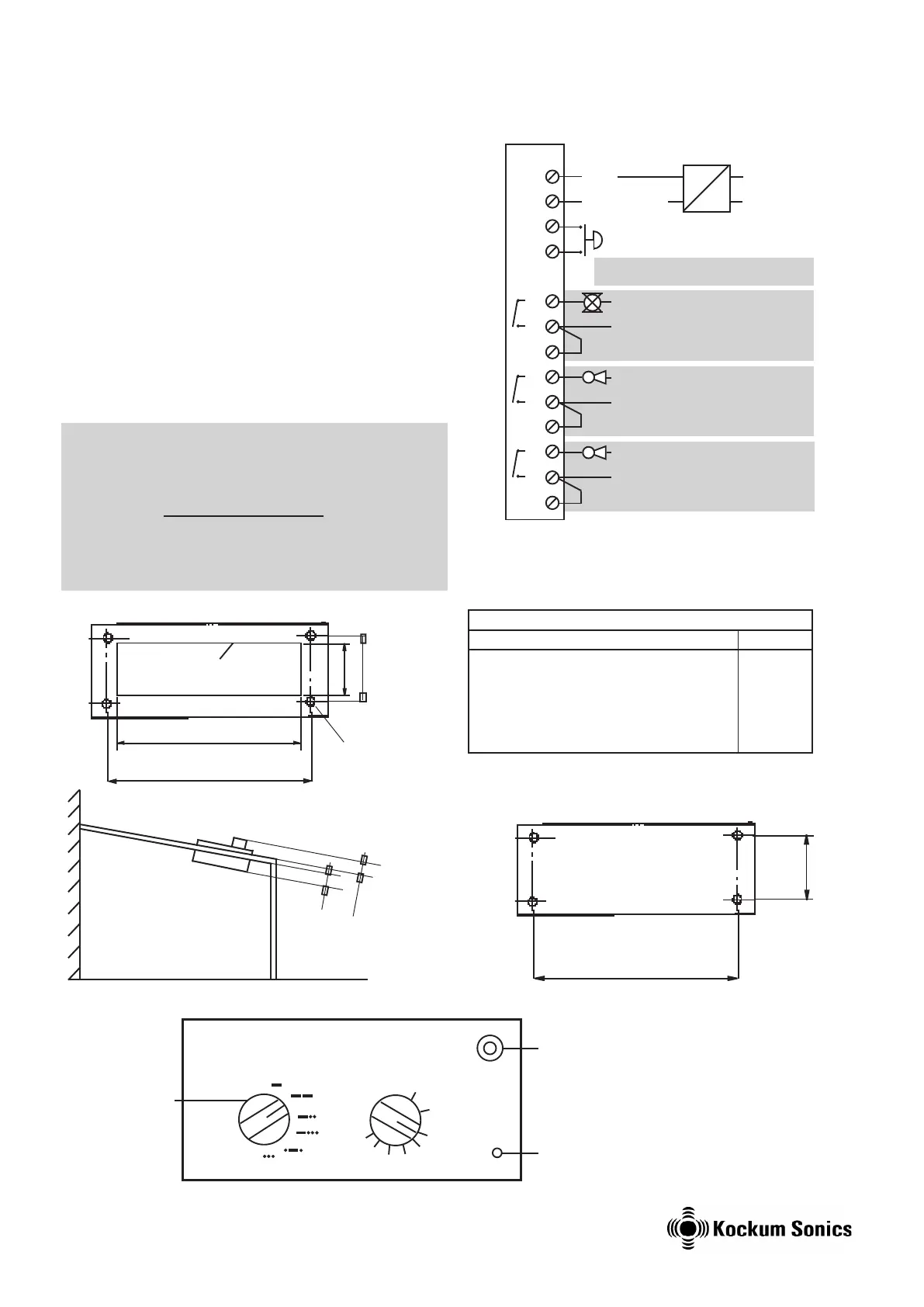

Signal Controller TI 96 Technical Data and Dimensions
(mm)
Technical Data
Voltage supply: 9-15,6V DC or 18-31,2V DC
Power consumption: 0,2 - 0,1A
Relay contactor: Max. voltage: 250V
Max. current: 6A
Dimensions: 206 x 116 x 70 (L x H x D)
Weight: 1,7 kg
Cable area: 0,2 - 6 mm2
Max cable diameter: 14 mm
Colour: Grey RAL7035 for Ref. No. 24510102
Grey RAL7035 for Ref. No. 24510106
Grey RAL7035 for Ref. No. 24510107
Black RAL9005 for Ref. No. 24510104
Protection class: IP23
The unit is CE-marked.
Units can be obtained from Kockum Sonics or their representatives.
When ordering, please, give reference number and part name.
164
87
Bulkhead mounting - Rear view
45
25
TI 96
Accessories
Name Ref.no.
Adaptor 230V AC to 12/24V DC 20142030
Adaptor 115V AC to 12V DC 20142031
Fuse for relay contact - 6A slow blow 20556260
Fuse for internal electronics - 1A quick blow 20550100
4 holes
Ø 5,2mm for
mounting to
console
170
Panel mounting
98
95
Panel cutout
188
Wiring diagram
WARNING! ONE SUPPLY ONLY FOR BELOW CON-
TACTS. EITHER +12...24 VDC OR 115/230 VAC
O VDC
+12/24 VDC / 125mA
EXTERNAL MANUAL WHISTLE SWITCH
0 VDC / 115 VAC / 230 VAC
*CONNECT JUMPER ONLY WHEN USING
+12/24 VDC FOR AFT WHISTLE SECTION
+12/24 VDC / 115 VAC / 230 VAC
* THESE JUMPERS ENABLES INBUILDT
SPARK SUPPRESSORS WHEN +12/24 VDC
IS USED FOR LANTERN/WHISTLE.
+12/24 VDC / 115 VAC / 230 VAC
*CONNECT JUMPER ONLY WHEN USING
+12/24 VDC FOR LANTERN SECTION
0 VDC / 115 VAC / 230 VAC
+12/24 VDC / 115 VAC / 230 VAC
0 VDC / 115 VAC / 230 VAC
*CONNECT JUMPER ONLY WHEN USING
+12/24 VDC FOR FORE WHISTLE SECTION
FORE WHISTLE
SECTION
AFT WHISTLE
SECTION
LANTERN
SECTION
1
2
3
4
5
6
7
8
9
10
11
12
13
TI 96
DC
AC
115/230V AC
IMPORTANT!
To meet the requirements for EMC-protection:
• Always use shielded cables.
• Be sure to properly connect the unit to ships ground.
• Connect the cables shield to the units cable clamps.
Only one power supply is permitted. If 115/230V AC is to be used for
TYFON and LANTERN section, an AC/DC adaptor must be used to
supply the TI96 on terminal 1 and 2.
The external manual switch must be able to handle 230V AC.
A - Sound aft
F - Sound fwd
AF - Sound aft and fwd
AFL - Sound aft, fwd
and lamp
FL - Sound fwd and
lamp
AL - Sound aft and
lamp
L - Lamp
SIGNAL CONTROLLER TI 96
HAND
OFF/RESET
Switch for signal
characters
Hand push-button
Indicating lamp
A
F
AF
AFLFL
AL
L
Picture shows panel layout for Ref No. 24510102 and 24510104
