KODAK HERO 5.1 All-in-One Printer

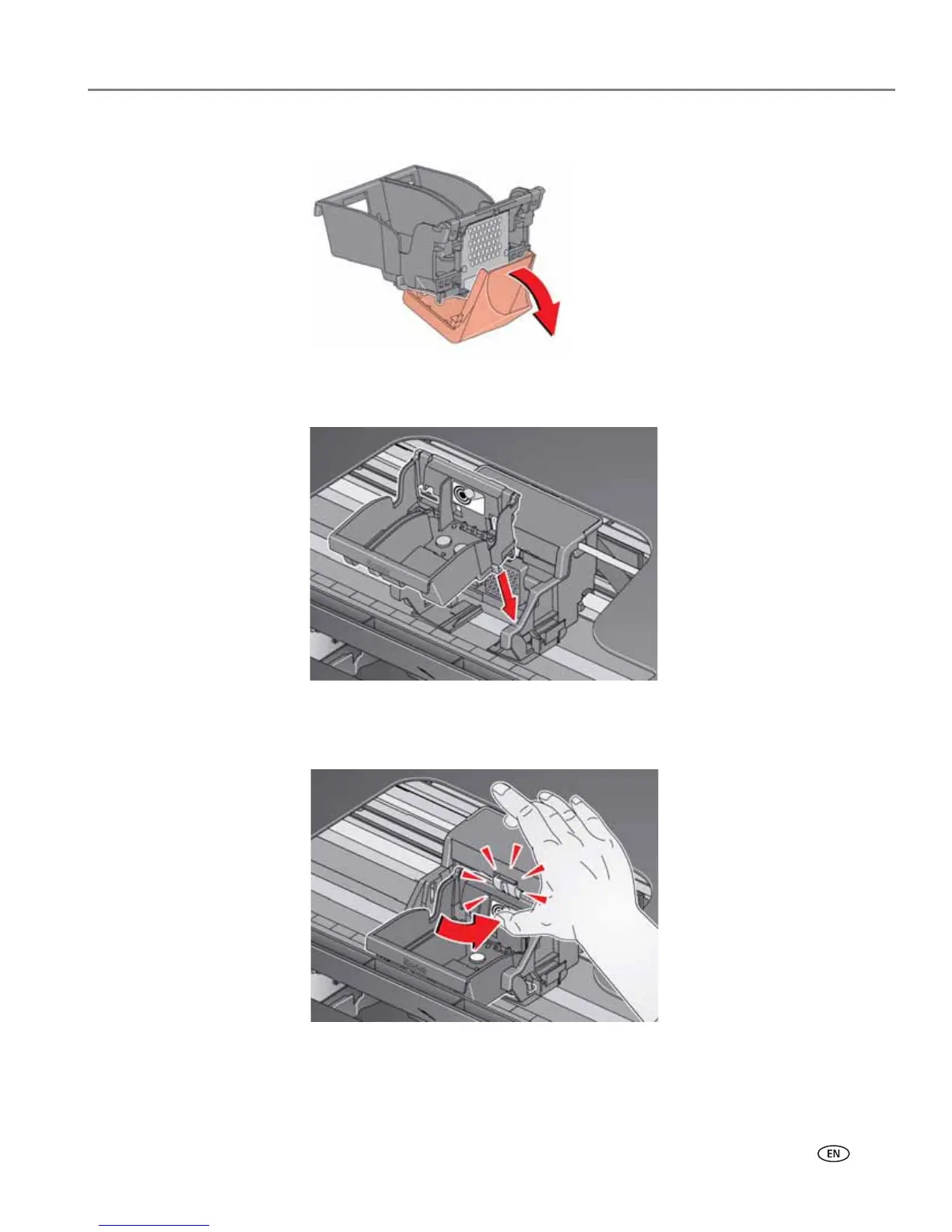

7. Remove the protective cap from the printhead.
8. Place the new printhead into the carriage.
9. Push firmly against the target label of the printhead until you hear a click.
