Illumination
Extra Bright Lamp Module with 82V/70h/
300W halogen lamp with integrated cold
light reflecting mirror.
Projector Measurements (see page 88):
Length: 340 mm
Width: 336 mm
Height: 140 mm
Height with tray: 175 mm
Weight without tray: approx. 9000 g
Weight of tray without slides: 540 g
Slide Formats:
24 x 36 mm
4 x 4 (superslide) with special condenser
Slide Trays:
KODAK EKTAPRO 80 Slide Tray for hold-
ing 80 slides with a maximum slide mount
thickness of 3.2 mm.
Slide Gate:
Gravity-feed slide change with register-
gate pressure levers in two planes.
Lens Mount:
Universal lens mount for both spiral- and
rack-mounted lenses (such as KODAK
Projection FF Lenses).
Height Setting:
Height setting to a maximum of 10
o
via two
turnable feet.
Levelling:
The projector may be operated at an angle
of plus or minus 30
o
from the horizontal
along the projector axis.
Note: Tilting the projector side ways will
adversely affect the lamp lifetime!
Housing:
Sturdy, fibre-glass reinforced housing (LEX-
AN).
All parts are marked and therefore fully
recyclable.
All important structural elements for the
optical equipment such as slide gate, lamp
module and base for the lens mount hous-
ing are in die-cast zinc assemblies.
Noise Development:
approx. 57 dB (A)
Projection Lamps
(available as accessories):
EXR 82V/35h/300W
Brightness 100%
FHS 82V/70h 300W
Brightness 80%
EXY 82V/200h 250W
Brightness 60%
Temperature range for safe operation
The operating temperature range of the
projector depends on the ambient temper-
ature and the voltage.
Minimum 0
o
C and maximum +30
o
C
Should the projector overheat, e.g., due to
lack of cooling air, the built-in thermal cut-
out automatically switches the lamp off and
then switches it on again once it has cooled
down.
Power Voltage: AC ONLY!
Different power voltages are adjustable via
the removable fuse link.
(120, 220, 230, 240 V)
Frequency:
50/60 Hz
Performance:
approximately 380 W
Fuses:
Primary circuit:
1 x T 2A L/250V for 220, 230 and 240V or 1
x 4 A slow blow/250V for 120V
Supply Voltage for External Units:
Provision of 12V/50 mA (DC) direct voltage
on the 8-pin remote control socket.
Slide Change Time:
1 sec (independent of mains voltage and
frequency).
Slide Access Times :
<5 sec for the longest search run.
Technical Data
5
1
2
4
6
7
8

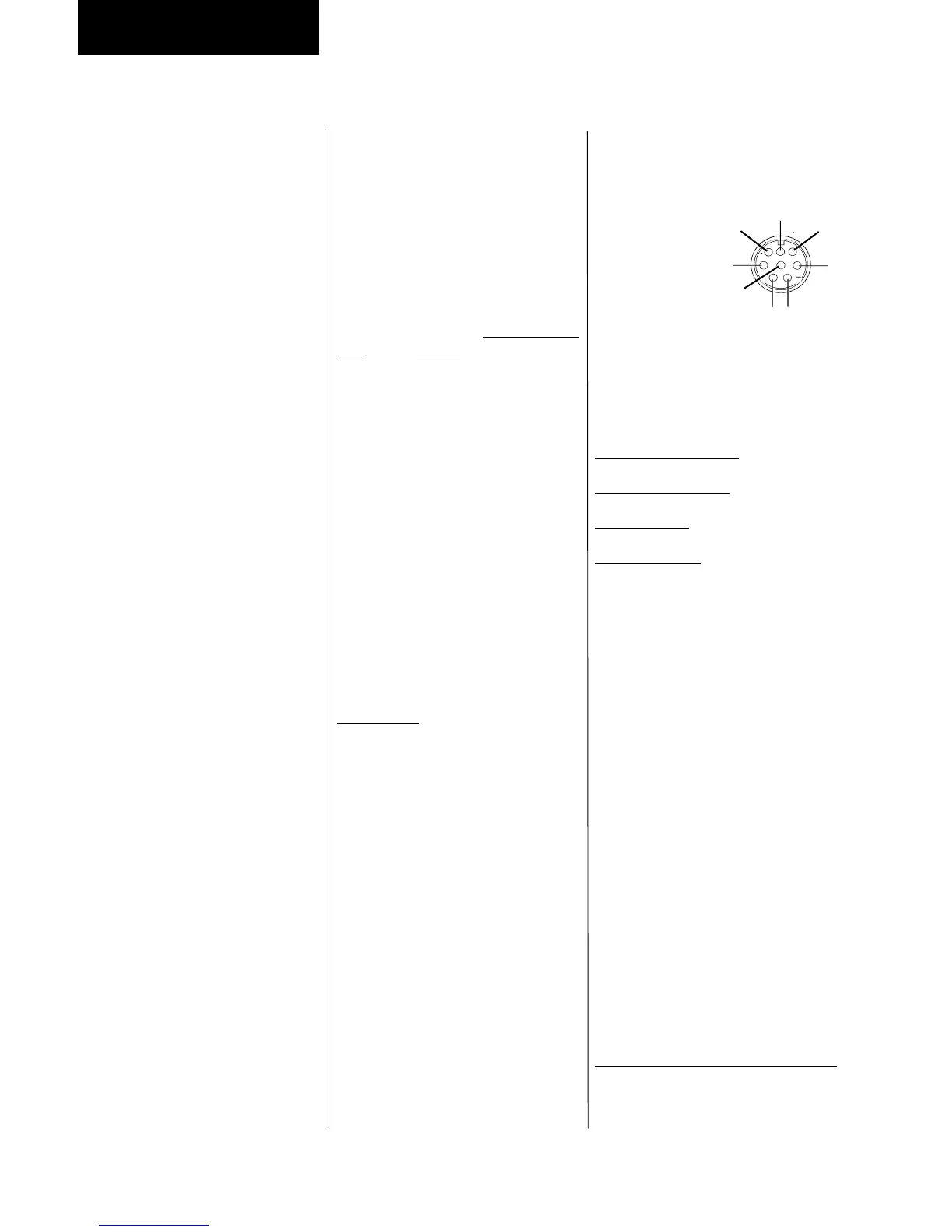

8-pin Standard Projector Socket:
(For connecting the KODAK EKTAPRO
Remote Systems or KODAK EKTAPRO
Twin Socket Adapter).
Pin 1: 12 VDC
Pin 2: Gnd
Pin 3: Signal 1 (LSB)
Pin 4: Signal 2
Pin 5: Signal 3
Pin 6: Signal 4
Pin 7: Signal 5 (MSB)
Pin 8: Interrupt
Control via contacts is also possible:
Please note:
Pin 8 must always be connected with pin
2!
Slide transport forwards:
connect pin 7 with pin 2
Slide transport reverse:
connect pin 6 with pin 2
Focus forwards:
connect pin 5 with pin 2
Focus backwards:
connect pin 4 with pin 2
KODAK and EKTAPRO are registered
trademarks.
