Viewfinder: V1, viewfinder; V2, finder eyepiece. Film and
transport: T1, rapid winding lever; T4, film counter; T5,
film counter setting wheel; T6, film indicator (in rewind
knob); T7, rewind knob; T8, reversing button; T9, film
release. Body: B3, back lock; B7, tripod bush; B8,
accessory shoe.

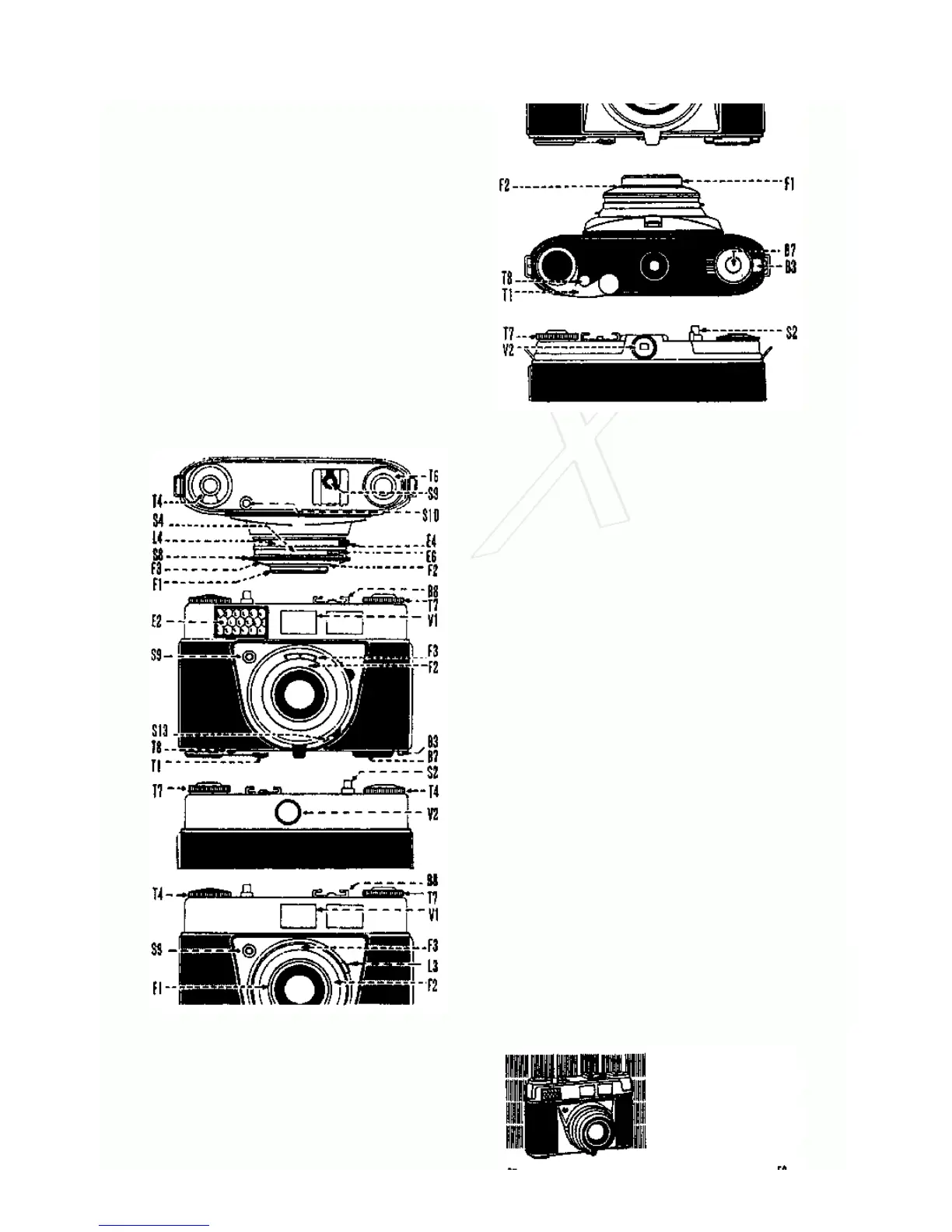

Top: Top view. Upper centre: Front view. Lower centre:
Bottom view. Bottom: Rear view of upper part of camera.
RETINETTE IA AND IB CONTROLS
Lens: L3, aperture lever; L4, aperture scale. Focusing: F1,
focusing mount; F2, distance scale; F3, depth of field scale.
Shutter: S2, release button; S4, shutter speed scale; S8,
shutter speed setting ring; S9, flash socket; S10, cable
socket in release button; S13, self-timer lever. Exposure
meter (on model IB); E2, meter cell; E4, exposure setting
ring coupled with exposure meter needle; E6, film speed
adjustment. Viewfinder: V1, finder window (shows exposure
meter needle on IB); V2, eyepiece. Film and transport: T1,
rapid winding lever; T4, film counter; T6, film indicator in
rewind knob; T7, rewind knob; T8, reversing button. Body:
B3, back lock; B7, tripod bush; B8, accessory shoe with
second flash socket.
Top: Top view of the Retinette IB, Upper centre: Front view
of the Retinette IB, Lower Centre: Rear view of upper part of
the Retinette models. Bottom:Front view of top section of the
Retinette IA.
RETINETTE I, II AND IIB CONTROLS
Focusing: F1, front cell focusing mount (l) or focusing knob
(connected to front lens mount on models II, IB); F2,
distance scale; F3, depth of field scale or automatic depth
of field indicator. Shutter: S2, release button; S5, light
value scale: S6, light value setting lever; S8 shutter speed
