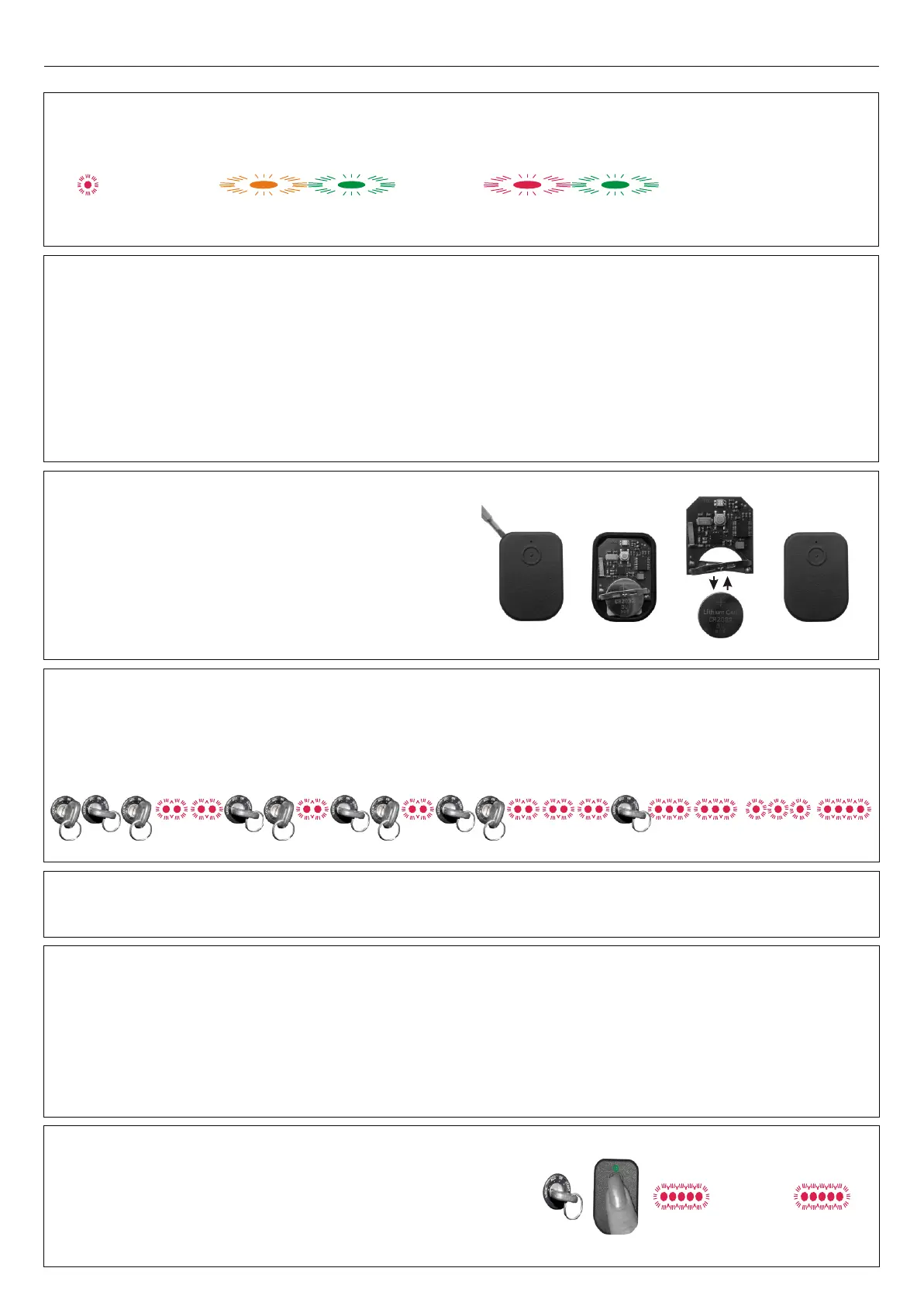

It is available to turn ON the ID card and the system unit only near or inside the car. Press and hold pressed down the
ID card button:
To check yourself shortly press the ID card button. If the LED makes flash of green colour, all is executed correctly.
1. When the ignition is turned ON, the series of four double buzzer sound signals with 1.7 second intervals are
audible. The ID card battery is low. Replace the battery by new one.
2. The buzzer sound signals are audible within 3 minutes every 5 seconds. The communication between the ID card and
system unit is lost. Check the ID card is not lost, not left at home, its battery is OK.
3. The short buzzer sound signal is audible with ignition is turned ON. The ID card and the system unit are turned OFF.
4. 'Anti-carjack' has been triggered, a car is immobilized. The communication between the ID card and system unit is
lost. Check the ID card is not lost, not left at home, its battery is OK.
5. When the ignition is turned ON, the buzzer all time is sounding by short signals. The ID card and the system unit
are turned OFF. You brought another learned and turned ON ID card. Turn on the system unit or turn OFF the ID card.
For troubleshooting of more complex troubles contact the immobilizer installer’s company.
The user can change the PIN code. It is strongly recommended for security reasons after system installation. Action
sequence:
1. Enter current PIN code (see TURNING ON THE OVERRIDE MODE).
2. Wait 3 seconds with ignition is turned OFF till the system LED will finish flash by triple flashes.
3. Enter code 81 analogically the PIN entering. Code entering will be confirmed by short buzzer sound signal.
4. Enter the new PIN two times one after other within 8-minute control time. If the same code will be entered both
times, the system will store it as the new PIN and will confirm it by buzzer sound. If you made a mistake, repeat this
chapter from beginning.
Find on a side of the ID card case a cave for a
screwdriver tip. Open the ID card case using the screwdriver
with a flat tip. Take off a board, pull out a battery and
replace by new CR2032 type 3V battery. Put the board back,
close the case. Pay the attention to the battery polarity. If
the polarity is wrong, your ID card will not operate. Your
product batteries are covered by European Directive
2006/66/EC, so the batteries must be collected and
disposed separately from normal household waste.
TROUBLESHOOTING
CHANGING THE PIN
BATTERY REPLACEMENT
0,1 second
2 seconds
2 seconds 2 seconds 2 seconds
Goes OFF,
2 seconds
Goes OFF,
2 seconds
Goes OFF,
the buzzer
sound signal
is audible
Release
the button
"KODINIS""KODINIS" IMB5, IMB5.1IMB5, IMB5.1
ID CARD AND SYSTEM UNIT TURNING ON
Red
Orange
Green
Red
Green
Vehicle immobilizer User manual
The immobilizer override mode is used in the following scenarios: the ID card is lost, the ID card battery is fully
discharged, the car is being repaired (ID card remains with you). The override mode can be turned ON by the use of the PIN
code. The factory preset PIN is written on the immobilizer sticker. The installer must give you the PIN. For example the PIN
code 2113 is entering by turning ON and OFF the ignition and counting flashes of the system LED (not ID card LED!):
Enter the PIN code (see TURNING ON THE OVERRIDE MODE). Wait for 3 seconds. While the override mode is not
yet turned ON (system LED flashes frequently), enter the code 11 by the same way as PIN code.
TURNING ON THE OVERRIDE MODE
TURNING OFF THE OVERRIDE MODE
O
N
O
N
O
N
N
O
O
N
F
O
F
F
O
F
O
F
F
F
O
F
O
F
F
PIN
digit '2'
PIN
digit 3'
Double
flashes
Double
flashes
Double
flashes
Double
flashes
Triple
flashes
Frequent
flashes
Quaduple
flashes
2
seconds
80
seconds
Override
mode
PIN
digit '1'
PIN
digit '1'
It is available to learn up to 5 ID cards. For learning details see
Installation manual. The user can easily check how many ID cards can
control the system. Turn OFF the ignition.. Press the ID card button and
observe the system LED. The number of LED flash packets shows
the number of learned ID cards. The number of flashes in the packet
corresponds to communication channel number (from 1 to 5).
HOW MANY ID CARDS CAN CONTROL THE SYSTEM?
O
FF
1 second
2 ID cards can control the system,
the 5th channel is used for communication
