TT-1701 2/17 7
4.16 Start the generator set.
4.17 After the generator set is running, select “Actuator
Throttle Arm” from the main screen. See
Figure 17.

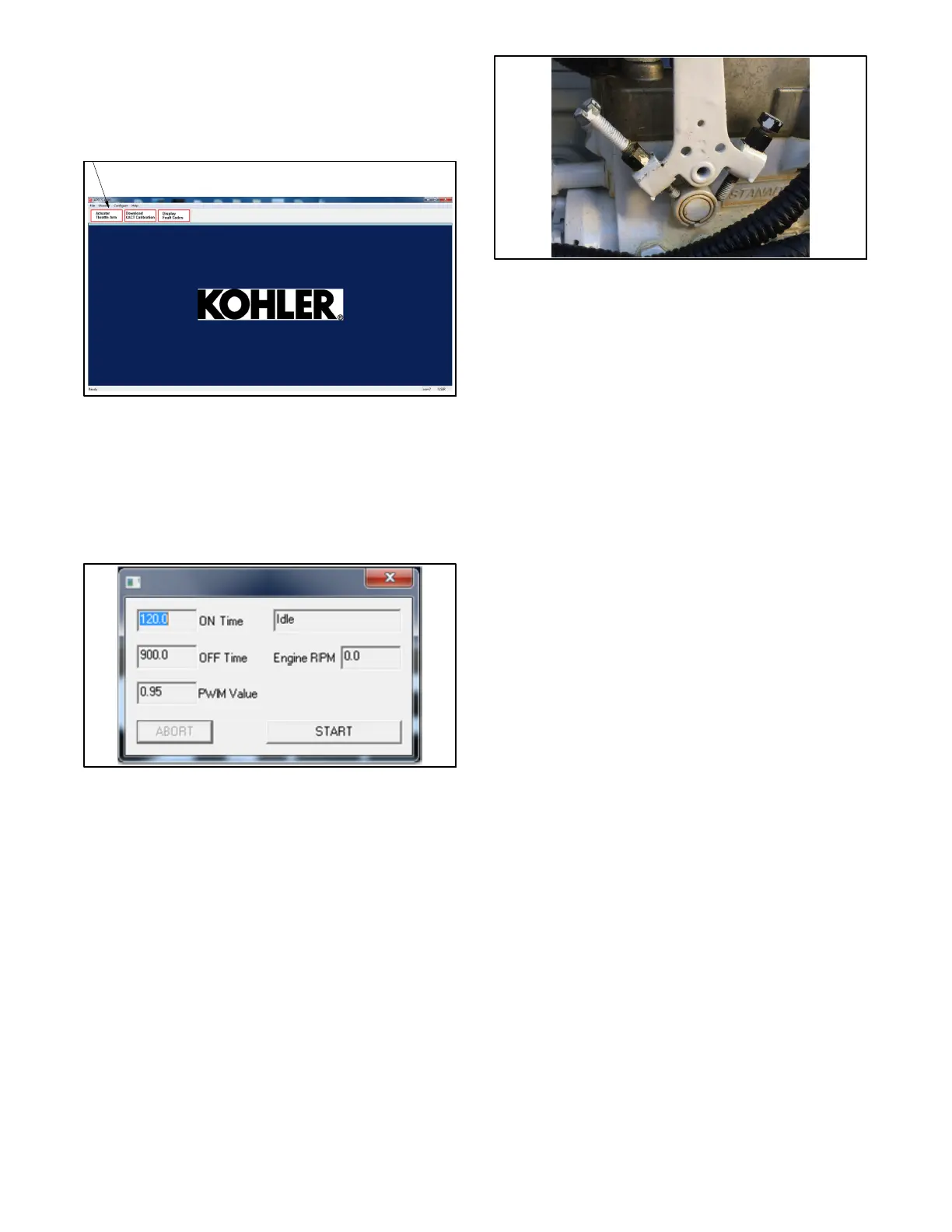

Figure 17 Main Screen
4.18 The following screen appears. See Figure 18.
While the engine is running, select “START”.
Note: Selecting the “START” button, turns the
actuator on FULL. The values shown in
Figure 18 are not adjustable.
Figure 18 Actuator Throttle Arm Screen
4.19 Using two 8 mm wrenches, loosen the jam nuts
and adjust the throttle position screws (see
Figure 19) until the Actuator Throttle Arm screen
(shown in Figure 18) shows the following for
Engine RPM:
For 60 Hz units Engine RPM 1890
4.20 Tighten the jam nuts and select “ABORT” o n the
Actuator Throttle Arm screen (shown in
Figure 18).
Note: The engine returns to normal rated speed
(1800 rpm for 60 Hz units.)
4.21 Close the Actuator Throttle Arm window, then
close the Kohler ACT Tool program on the
personal computer.
Figure 19 Throttle position screws and jam nuts
4.22 To shut down the generator set:
4.22.1 Turn the toggle switch on the interface
harness to OFF ( O ). See Figure 10.
Note: The generator set will continue to
run if the toggle switch is not turned
OFF.
4.22.2 Select the OFF/RESET button on the
Decision-MakerR 3000 controller.
4.23 Disconnect the 7N and P terminals from the TB12
terminal strip.
4.24 Unplug the interface harness from the electronic
governor inside the junction box.
4.25 Unplug the grey female connector from the
existing harness inside the junction box.
4.26 Take the grey connector from the existing harness
inside the junction box and plug it into the grey
connector on the electronic governor.
5. Install the air cleaner assembly.
5.1 Replace the air cleaner base and hardware.
5.2 Replace the air cleaner element.
5.3 Replace the air cleaner cover.
6. Restore the generator set to service.
6.1 Replace the junction box cover and any sound
shield door(s) and roof.
6.2 It is recommended that the battery be
disconnected for 5 minutes after completing these
steps and then, reconnected.
6.3 Check that the generator set is OFF.
6.4 Reconnect the generator set engine starting
battery, negative (--) lead last.
6.5 Reconnect power to the battery charger, if
equipped.
