Kohler 32EKOZD

TP-7045 3/18c 47Section 7 Installation Drawings
ADV-8858-B
NOTE: Dimensions are shown in mm [in.].

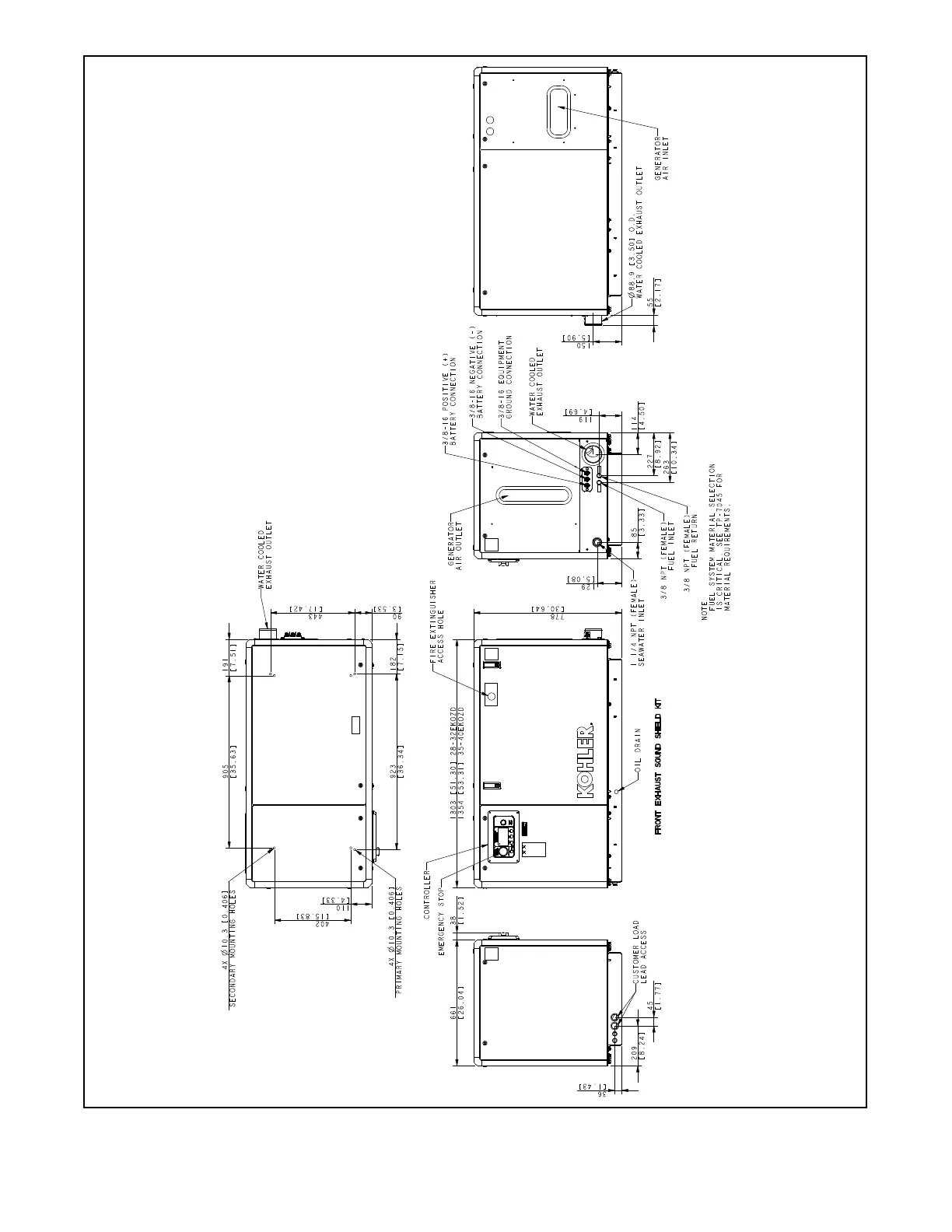

Figure 7-13 Dimension Drawing—Sound Shield, 32/40EKOZD and 28/35EFKOZD (Sheet 2 of 2)
