-3-

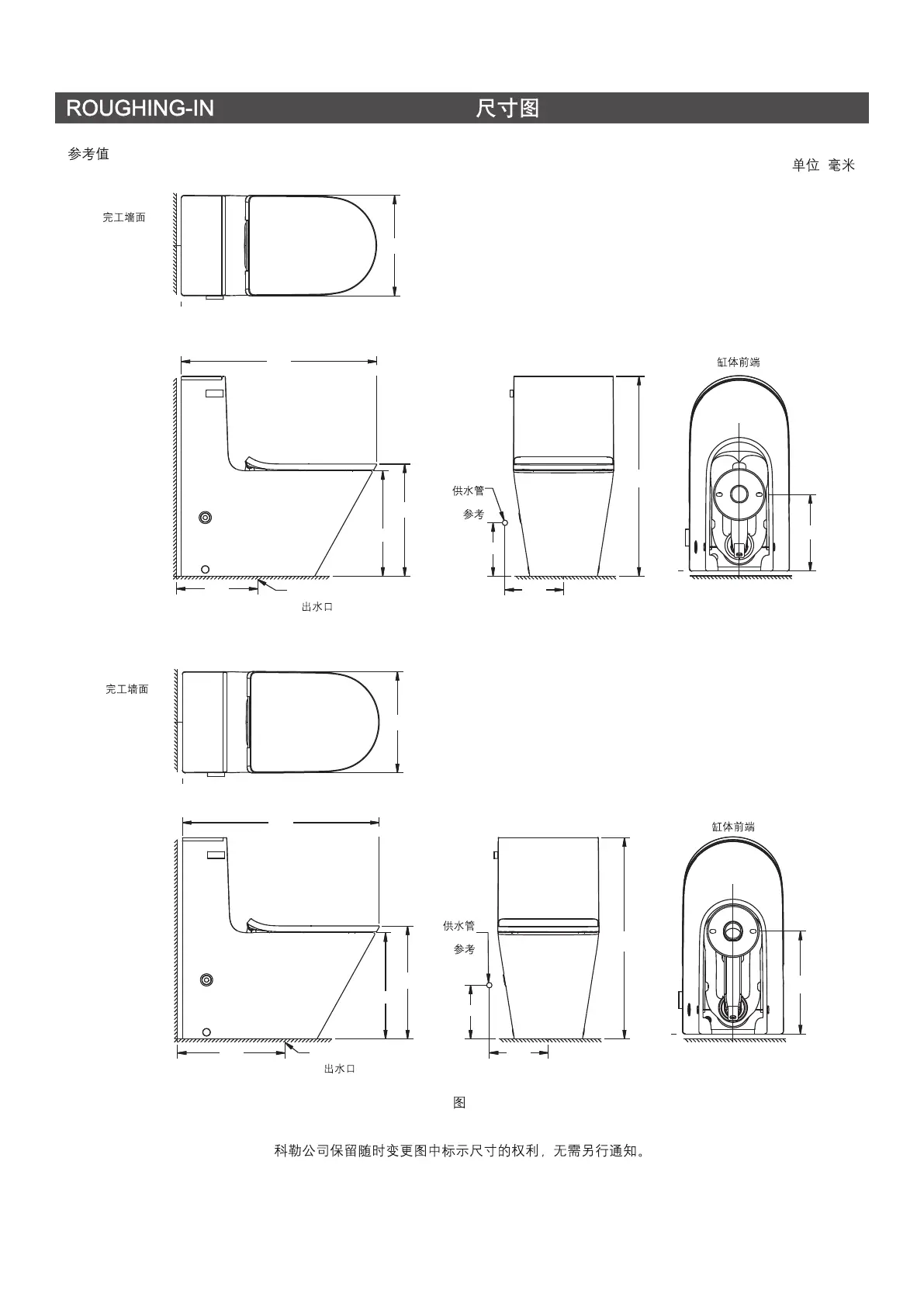

Unit: mm
:
Reference Value
K-EX22378T/K-EX24333T
Front of bowl
of outlet
C
L
Finished Wall
377
733
420.5
395
200
220
749.5
287
Supply
Reference
305
K-EX22379T
Kohler reserves the right to change marked dimensions without prior notice.
Fig.#1
1
Front of bowl
of outlet
C
L
377
733
420.5
395
200
220
749.5
Supply
Reference
400
382
Finished Wall
1416649-T01-A
