Section 7
Retractable Starter
7.4

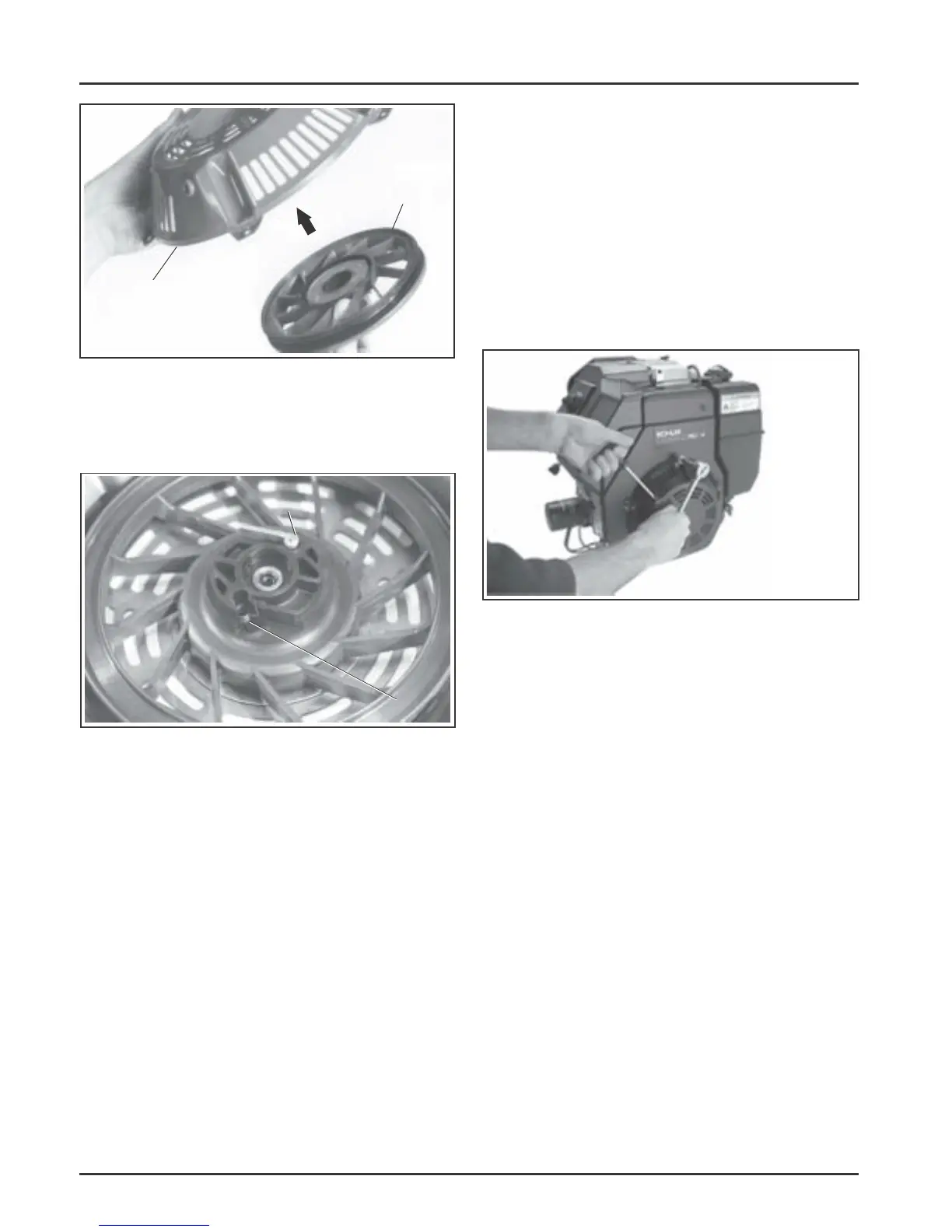

Figure 7-10. Installing Pawls and Pawl Springs.
5. Place the brake washer in the recess in starter
pulley; over the center shaft.
6. Lubricate the brake spring sparingly with
grease. Place the spring on the plain washer.
(Make sure the threads in center shaft remain
clean, dry, and free of grease and oil.) See Figure
7-6.
7. Apply a small amount of Loctite
®
No. 271 to the
threads of the center screw. Install the center
screw, with washer and retainer, to the center
shaft. Torque the screw to 7.4-8.5 N·m
(65-75 in. lb.).
8. Tension the spring and install the rope and
handle as instructed in steps 6 through 12 under
“Rope Replacement.”
9. Install the starter to the engine blower housing.
See Figure 7-11.
Figure 7-9. Installing Pulley and Spring into
Housing.
4. Install the pawl springs and pawls into the
starter pulley. See Figure 7-10.
Pulley &
Spring
Housing
Pawl
Pawl
Spring
Figure 7-11.
