Disassembly

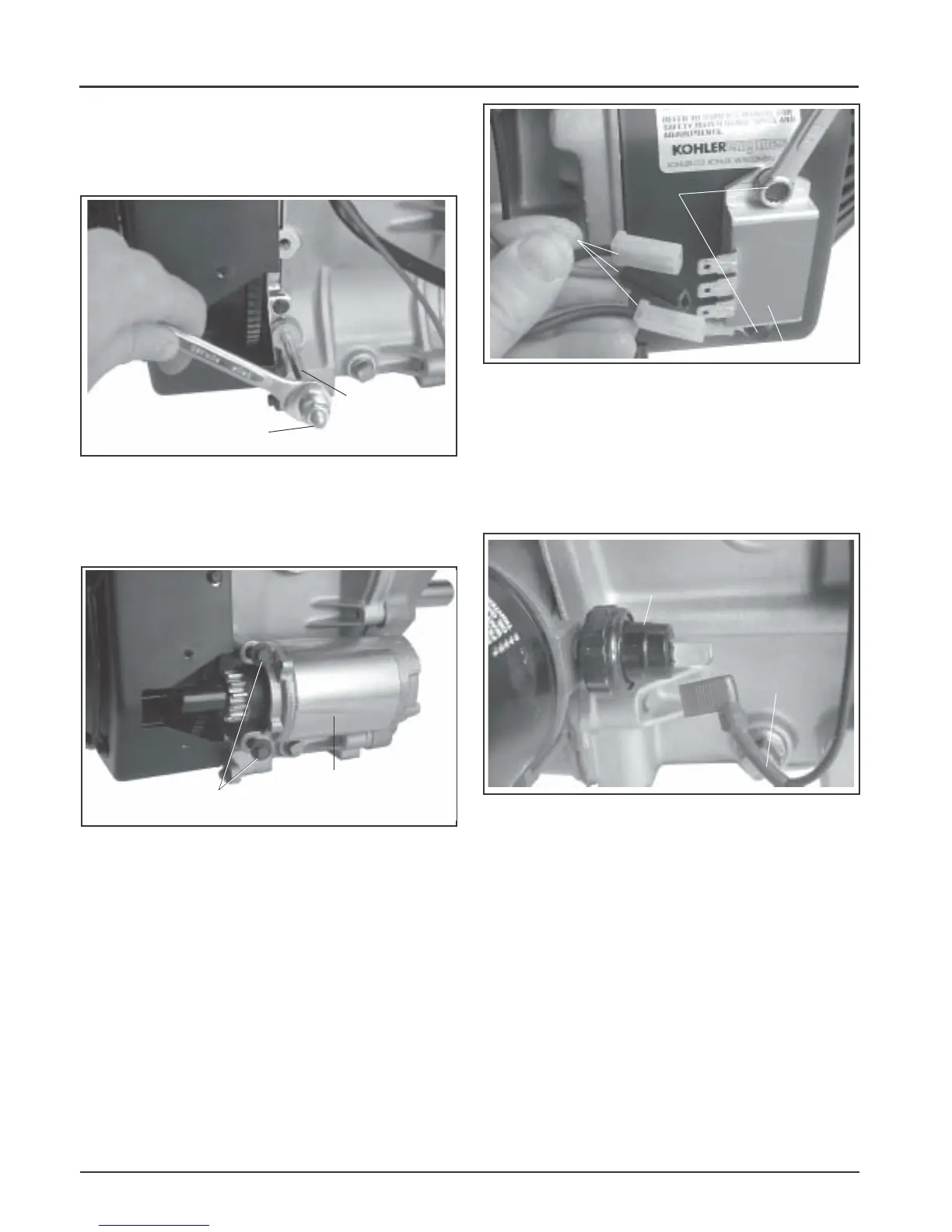

Figure 9-18. Removing Mounting Studs.
If the starter is mounted with two hex flange screws,
remove the screws and pull the starter out from
behind the pinion cover.
Figure 9-20. Removing Rectifier-Regulator.
Remove Oil Sentry
TM
1. Disconnect the lead from the Oil Sentry
TM
switch.
2. Remove Oil Sentry
TM
switch from the oil filter
adapter or adapter section of closure plate. See
Figure 9-21.
Figure 9-19. Starter Mounted With Bolts.
Remove Rectifier-Regulator
1. Remove the connector(s) from the rectifier-
regulator. See Figure 9-20.
2. Remove the two hex flange screws securing the
rectifier-regulator and the attached ground lead
(non-metal blower housing only).
d. If removal of the mounting studs is required,
use the two hex flange nuts from the
mounting studs, tightened flange to flange, to
remove. See Figure 9-18.
Figure 9-21. Removing Oil Sentry
TM
Switch.
Studs
Hex Flange Nuts
Starter
Mounting Bolts
Wire Connectors
Rectifier-Regulator
Mounting
Screws
Oil Sentry
TM
Switch
Lead
