8.16
Section 8
Electrical System and Components

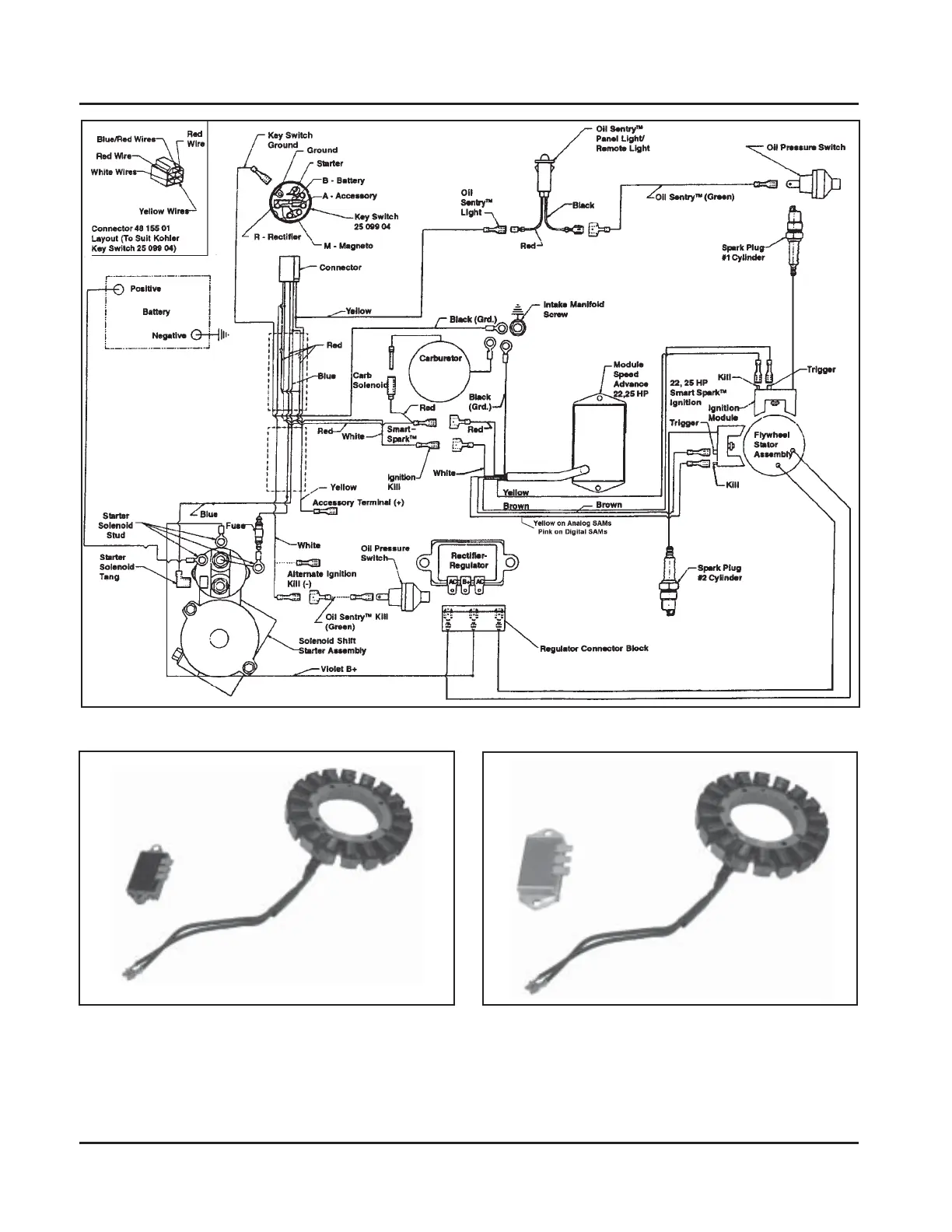

Figure 8-18. Wiring Diagram - 15/20/25 Amp Regulated Battery Charging System with SMART-SPARK
™
.
Figure 8-19. 15 Amp Stator and Rectifier-Regulator.
Figure 8-20. 20 Amp Stator and Rectifier-Regulator.
