8.13
Section 8
Electrical System and Components
8

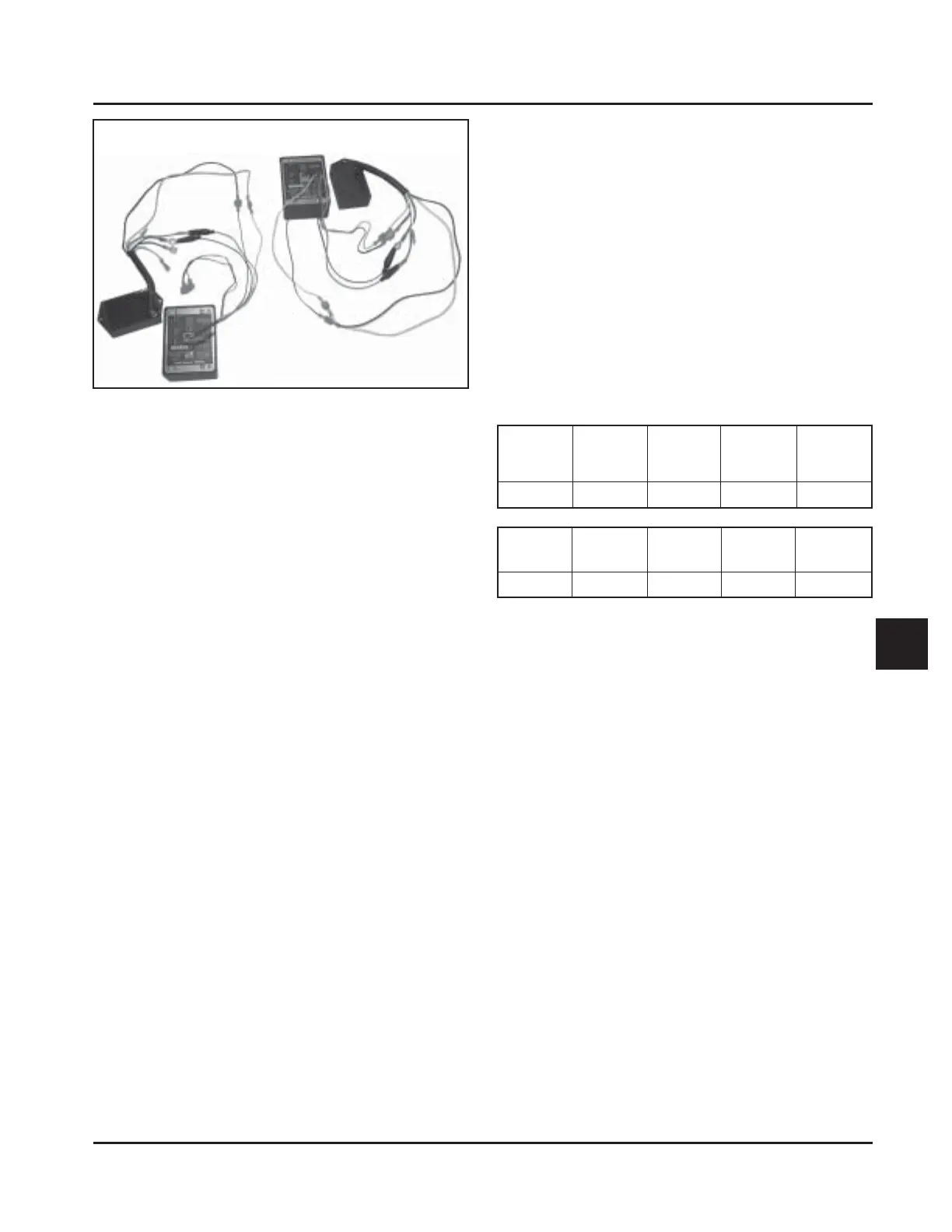

Figure 8-14. Connected Tester Leads.
The test procedure for twin cylinder SAMs will vary
slightly, depending on whether the module is analog
(ASAM) or digital (DSAM).
1. Check the SAM part number stamped on the end
of the housing.
a. If it is an ASAM (24 584 09 or 24 584 10),
separate the short yellow and brown leads
from the long ones. Each set will be tested
separately. Connect the tester to the SAM as
follows:
• Yellow tester lead to long yellow module
lead.
• Brown tester lead to long brown module
lead.
• Red tester lead to the red module lead.
• Black tester lead to the black or green
module lead.
The remaining tester leads (pink and brown
with black band) are not used for testing
ASAMs.
b. If it is a DSAM (all except 24 584 09 or
24 584 10), connect the tester as follows:
• Yellow tester lead to the long yellow
module lead.
• Brown tester lead to the long brown
module lead.
• Red tester lead to the red module lead.
• Black tester lead to the green or black
module ground lead with the eyelet
#
terminal.
• Pink tester lead to the short yellow or pink
module lead.
MAS
.oNtraP
-
8148542
7248542
9148542
8348542
9348542
.oNtseT
5678
MAS
.oNtraP
2148521
9048542
0148542
0348542
1348542
3348542
4348542
2348542
.oNtseT
123 4
3. Depress the tester button repeatedly until the
correct test number appears on the display. After
a few seconds, the test number will flash three
times and the test will begin. A reverse
numerical sequence will be displayed, starting
with a 6 and progressing down to 1, followed by
a “P” (pass) or “F” (fail), indicating the condition
of the part*. See Figures 8-15 and 8-16. If testing
an ASAM, return to step 1 and move the yellow
and brown tester leads to the short set of module
leads, then repeat the test.
4. If you get a “-“ sign instead of the numerical
sequence, and/or an “F” at the end of the test
cycle, recheck all of the connections, check the
condition of the tester battery** and repeat the
test. If you get the “-“or “F” sign again in the
retest replace the SAM.
*IMPORTANT!
Allow 15-20 seconds for the tester to clear and reset
itself between tests or if the test is interrupted before
completion of the test cycle. Otherwise, a false reading
may be displayed in the form of a “-” or a faint “8”.
ASAM Module
Test Connections
DSAM Module
Test Connections
• Brown tester lead with black band or
terminal to the short brown module lead.
#
NOTE: Some modules contain two black ground
leads, with one containing a white stripe. Do
not connect to the black/white lead with the
bullet connector or a “Fail” test result will
occur, regardless of actual condition.
Caution: Do not allow alligator clip leads to touch
each other.
2. Recheck the SAM part number, noting the last
two digits. Refer to the table below or on the
tester faceplate to determine the test number to
be used.
