11.29
Section 11
Reassembly
11

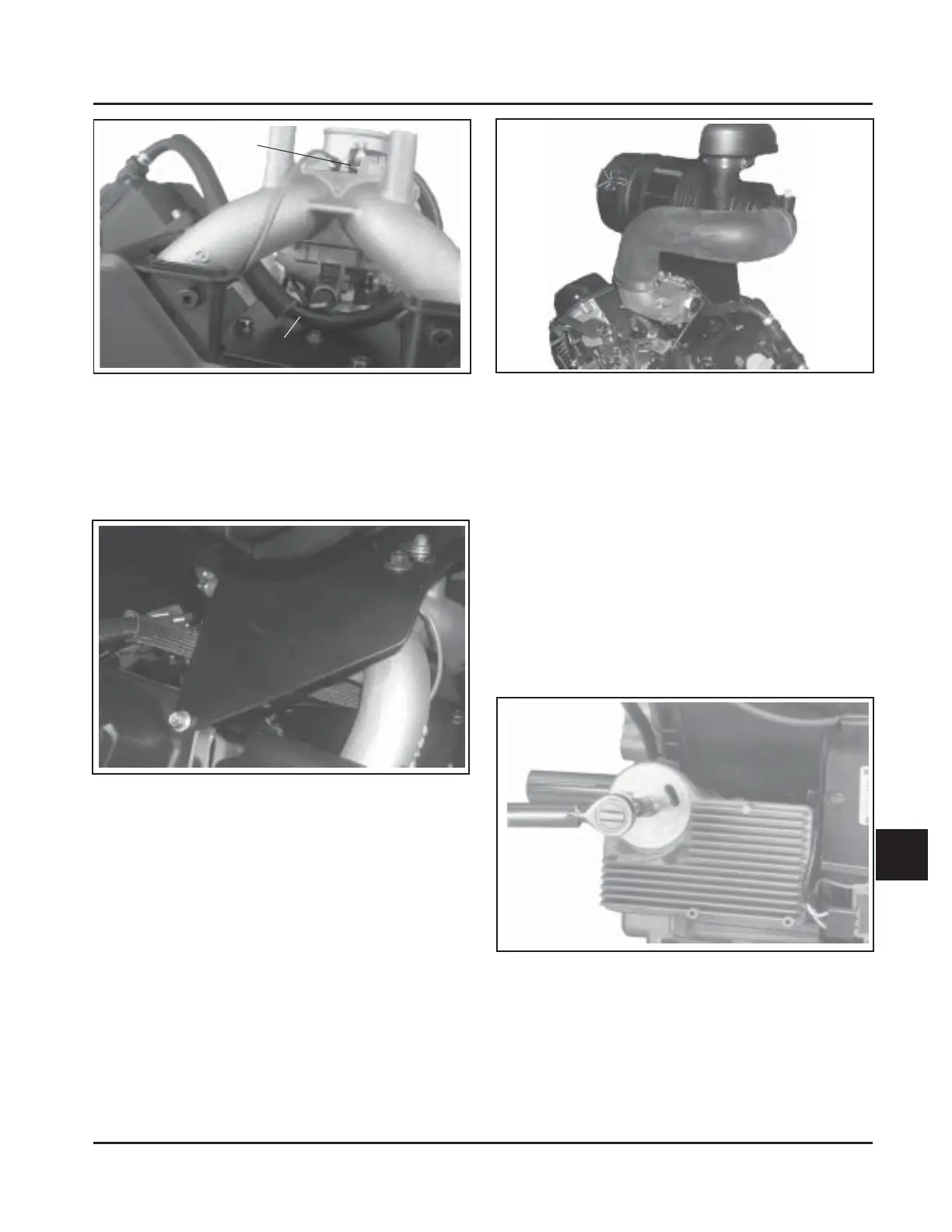

Figure 11-96. Breather Hose and Fuel Line Details.
2. Align the air cleaner mounting bracket with the
valve cover mounting holes and start the screws.
On two-barrel carburetor models start the two
mounting screws into the top of intake manifold.
See Figure 11-97.
Figure 11-97. Mounted Air Cleaner Bracket (Two-
Barrel Carburetor).
3. Check alignment of bracket and torque the valve
cover screws as prescribed in “Install Valve
Covers”. Torque the upper mounting screws into
the manifold (two-barrel models only) to 9.9 N·m
(88 in. lb.).
4. Connect the air cleaner hose to elbow or adapter
on carburetor and secure with a clamp. Install
and tighten hood onto the air cleaner inlet. See
Figure 11-98.
Figure 11-98. Assembled Heavy Duty Air Cleaner
(Two-Barrel Carburetor).
Install Muffler
1. Install the port liners (if equipped). Install the
muffler and attaching hardware to the muffler
bracket. Torque screws to 9.9 N·m (88 in. lb.).
2. Install the hex flange nuts to the exhaust studs.
Torque hex flange nuts to 24.4 N·m (216 in. lb.).
Install Oil Cooler
1. Reinstall the oil cooler on the engine (if equipped).
Install a new gasket between the cooler and the
closure plate. Torque nipple adapter to 27 N·m
(20 ft. lb.). See Figures 11-99 and 11-100.
Figure 11-99. Torquing Oil Filter Nipple (Crankcase
Mounted Cooler).
Carburetor
Inlet
Fuel Line
To Next Page
