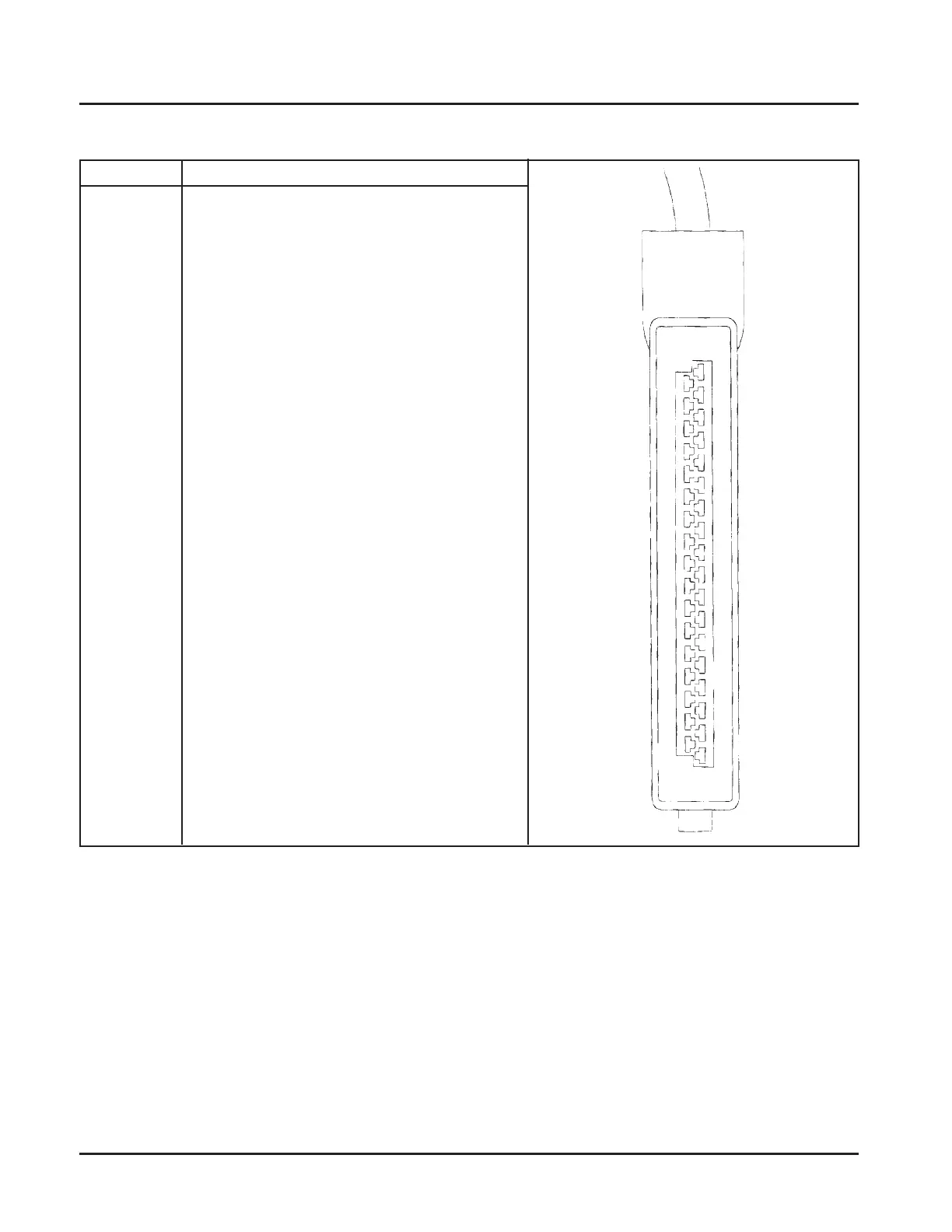

Kohler Command CH25

5B.28
Section 5B
EFI Fuel System
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Component
Ignition Coil #1
Not used
Engine Speed Sensor
ECU Production Test Terminal
Not Used
Not Used
Not Used
TPS Initialization Terminal
Engine Ground
O
2
Sensor
Not Used
Throttle Position Sensor
Not Used
Oil Temperature Sensor
Not Used
ECU Permanent Battery Voltage
ECU Switched Battery Voltage
Engine Ground
Ignition Coil #2
Vehicle Ground
Engine Speed Sensor
Not Used
Not Used
Not Used
Throttle Position Sensor
Not Used
Throttle Position Sensor/Oil Temperature Sensor
Power Relay
Not Used
Not Used
Malfunction Indicator Light
Not Used
Vehicle Ground
Not Used
Fuel Injectors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
“35 Pin” (MA 1.7) Metal-Cased ECU Systems
