Kohler Command CH750 User Manual

Electrical System
34 24 690 06 Rev. CKohlerEngines.com
W
C
H
D
B
I
A
AD
E
G
F
F
A
K
B
L
J
N
M
P
O
R
Q
S
T
U
V
R
W
R
X
Y
Z
V
AA
AB
AC
AF
AI
AJ
AL
AE
AK
AH
AG
R
T
V
V
AM
AN
AO
AH

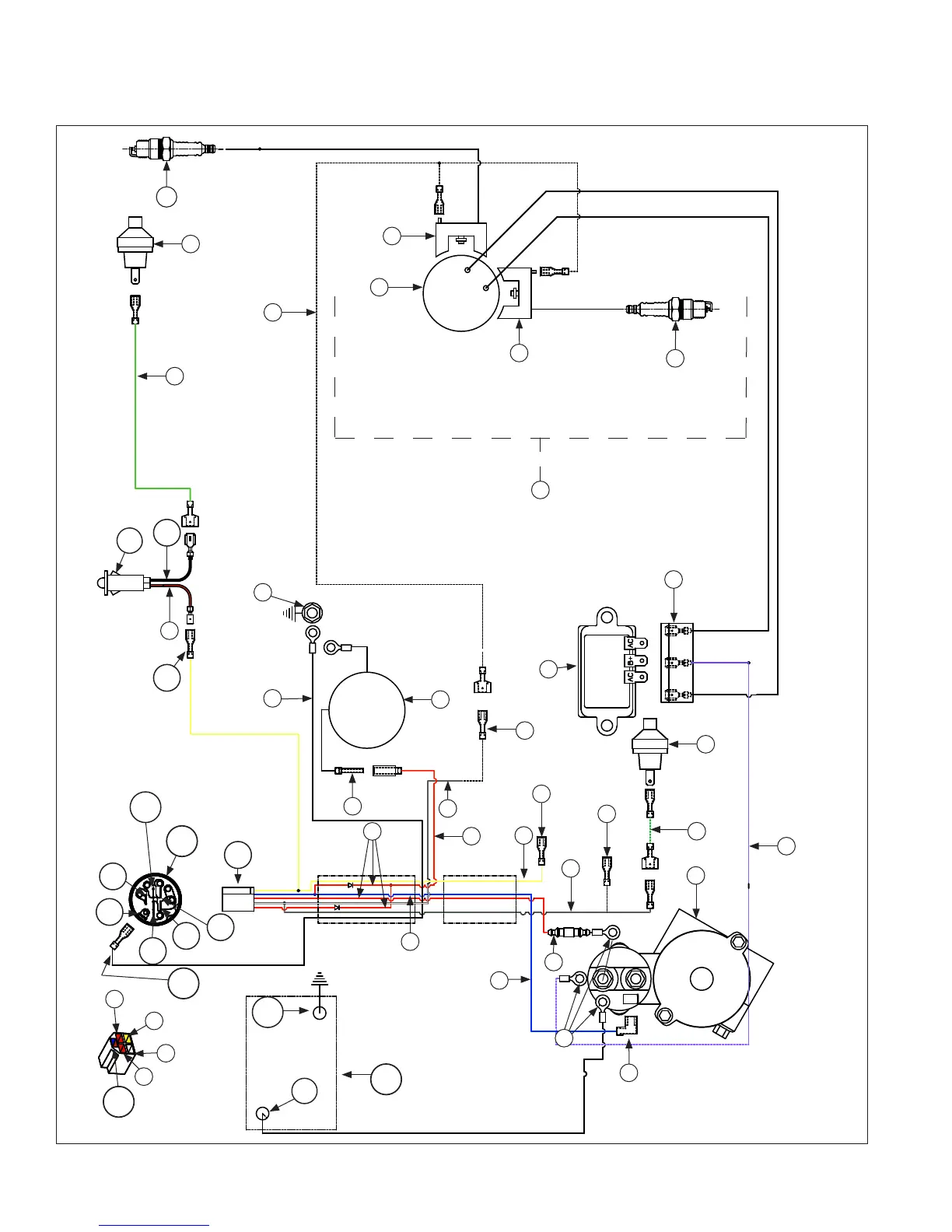

Wiring Diagram-15/20/25 Amp Regulated Battery Charging System with Fixed Timing

Kohler Command CH750 Specifications

General

Compression Ratio	8.5:1
Fuel Type	Gasoline
Starter Type	Electric
Ignition System	Electronic
Lubrication	Full Pressure
Engine Type	4-cycle, twin-cylinder, OHV, air-cooled, gasoline engine
Displacement	747 cc (45.6 cu. in.)
