Disassembly/Inspection and Service
24 690 06 Rev. C KohlerEngines.com
External Engine Components
U
V
V
A
P
N
O
B
C
B
D
G
I
H
J
F
E
K
D
M
Q
B
L
S
T
T
S
R
R
X
W

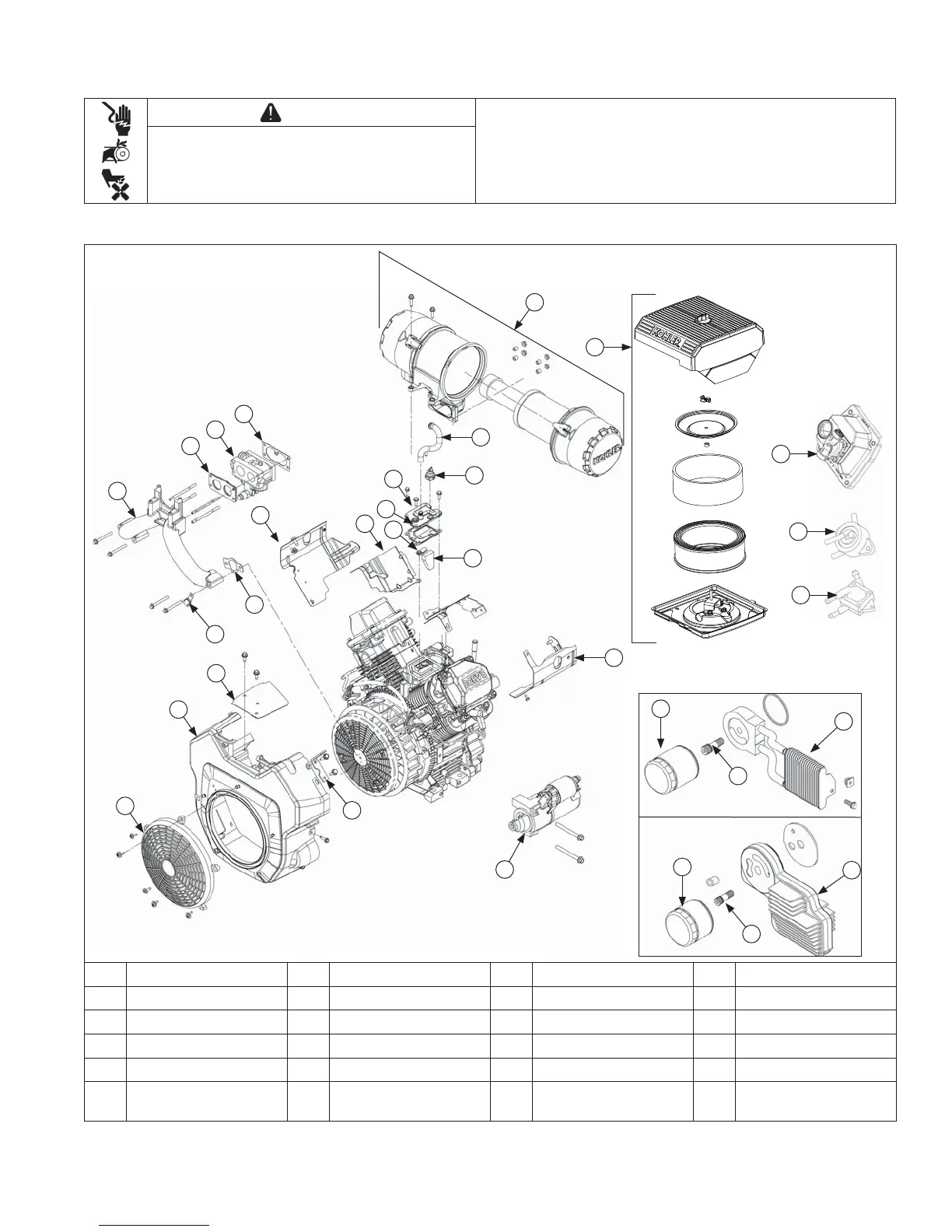

A Intake Manifold B Gasket C Carburetor D Outer Baf e
E Breather Tube F Oil Sentry
G Breather Cover H Breather Gasket
I Inner Baf e J Breather Reed K Filter L Electric Starter
M Lifting Bracket N Fixed Guard O Blower Housing P Debris Shield
Q Wire Clip R Oil lter S Nipple T Oil Cooler
U
Valve Cover Fuel
Pump
V Pulse Fuel Pump W
Heavy-Duty Air
Cleaner
X
Low-Pro le Air
Cleaner
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
