Kohler Command PRO CH750 User Manual

Clutch
58 24 690 06 Rev. KKohlerEngines.com
WET DISC TYPE CLUTCH (if equipped)

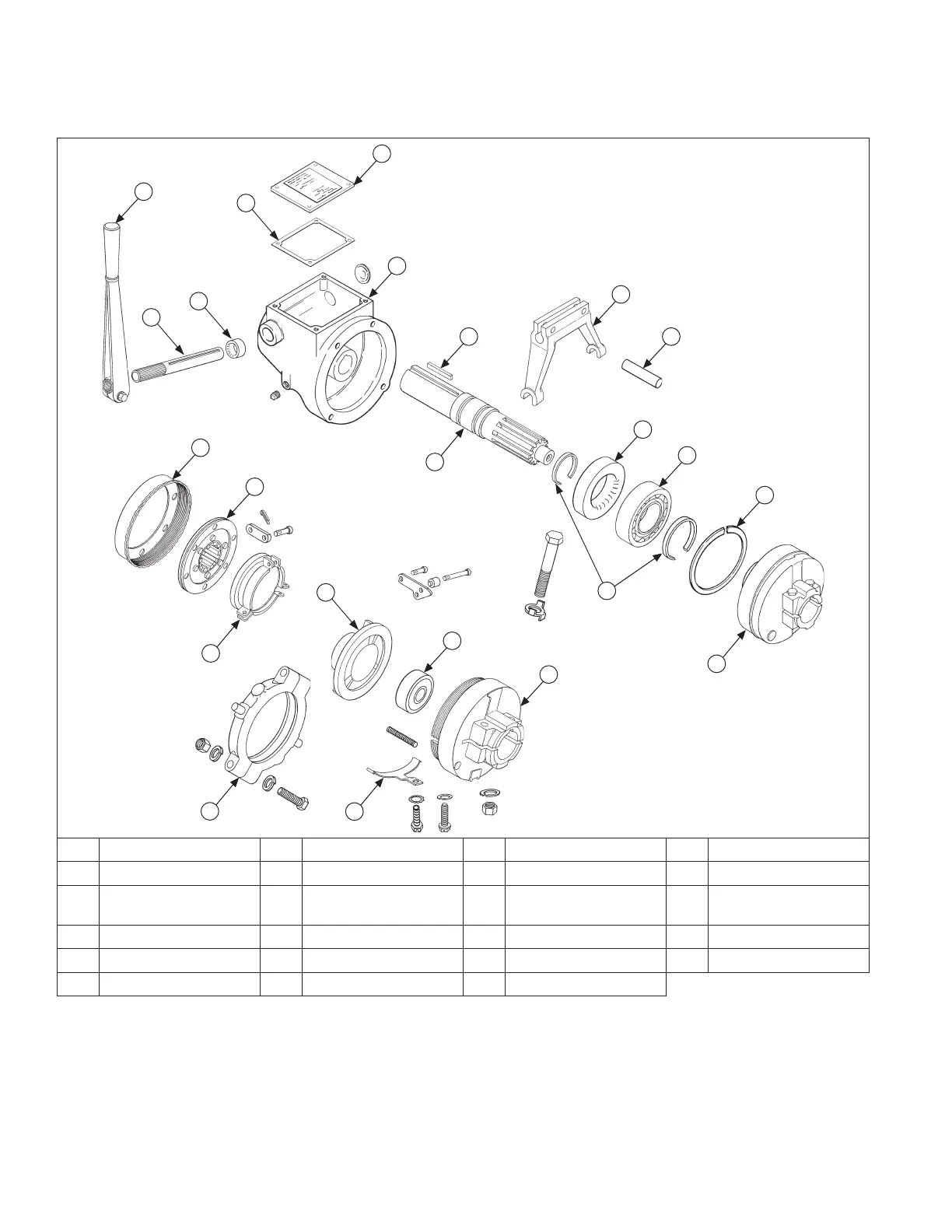

Wet Disc Type Clutch Components
I
J
M
W
P
N
L
H
G
A
E
F
O
S
R
T
U
V
K
D
C
B
Q
A Shifting Lever B Gasket C Seal D Shaft (Yoke)
E Nameplate F Clutch Housing G Adjusting Ring H Driven Member
I Release Sleeve J
Bearing Release
Assembly
K Pressure Plate L Pilot Bearing
M Adjusting Lock N Clutch Assembly O Key P Power Shaft
Q Retaining Rings R Yoke S Roll Pin T Oil Seal
U Ball Bearing V Snap Ring W Clutch Assembly

Kohler Command PRO CH750 Specifications

General

Compression Ratio	8.5:1
Cooling System	Air-cooled
Spark Plug	Champion RC12YC or equivalent
Governor Type	Mechanical
Oil Capacity	2.0 U.S. qt (1.9 L)
Lubrication	Full Pressure
Max Torque	42.4 ft-lbs (57.5 Nm) @ 2400 RPM
Fuel System	Carburetor
Ignition System	Electronic
Starter	Electric
Spark Plug Gap	0.030 in (0.76 mm)
Displacement	747 cc
