Disassembly/Inspection and Service
14 690 12 Rev. -- KohlerEngines.com

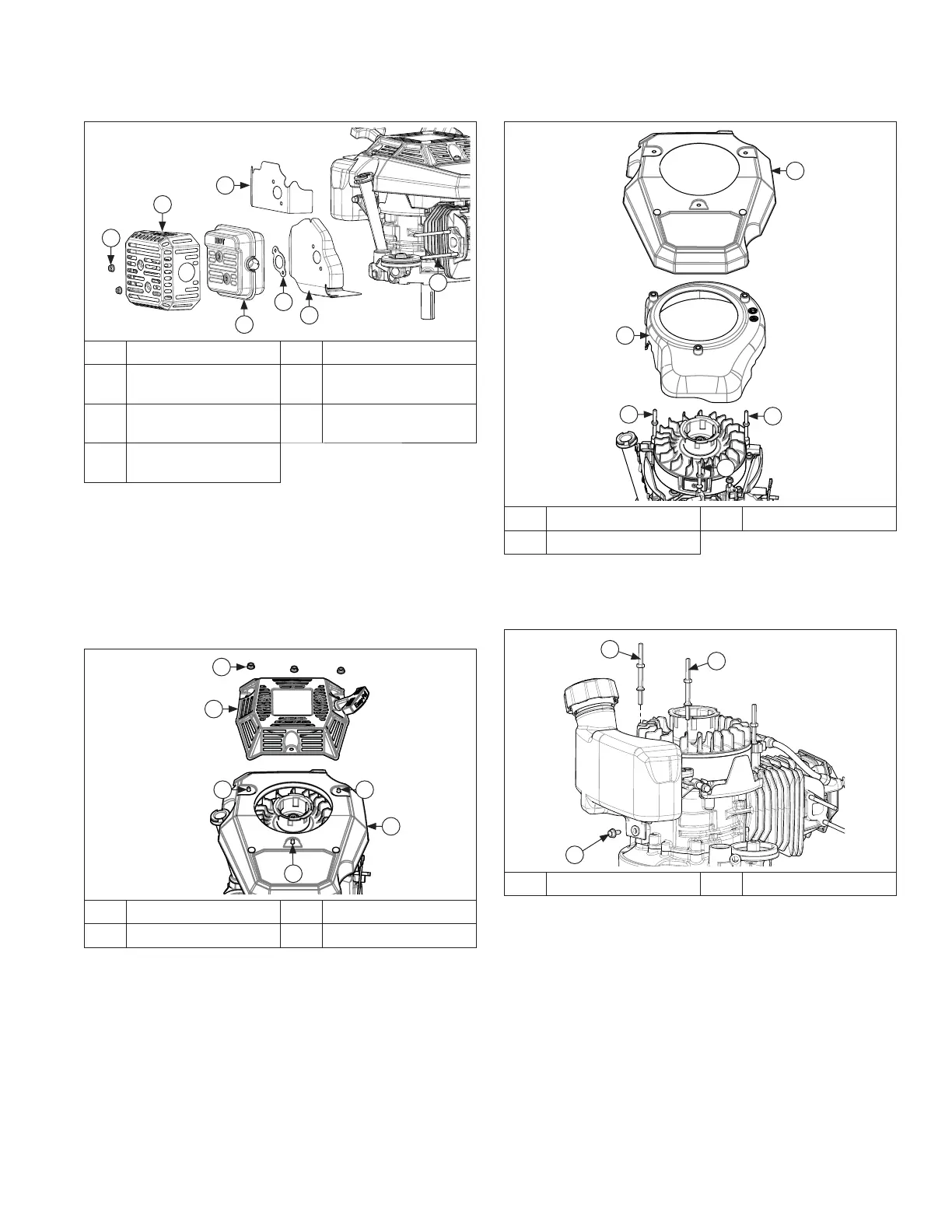

Remove Engine Cover and Blower Housing
A
B
C
C
C
A Engine Cover B Blower Housing
C Stud
1. Lift engine cover off studs.
2. Remove blower housing with inserts.
Remove Fuel Tank (if equipped)
A
B
B
A Screw B Stud
1. Ensure fuel tank is empty.
2. Detach fuel tank from crankcase by removing screw.
3. Remove studs securing top of fuel tank and lift off
tank.
Remove Muffl er Assembly
E
D
G
A
B
C
F
A Nut B Muffl er Guard
C Muffl er D
Muffl er Gasket
(CV200, CV224)
E
Barrel Baffl e
(CV200, CV224)
F Exhaust Stud
G
Muffl er Gasket
(CV173)
1. Remove nuts from exhaust studs and remove
muffl er guard.
2. Slide muffl er off studs.
3. Remove muffl er gasket from exhaust studs.
4. On CV200 & CV224 engines, loosen screw securing
barrel baffl e to cylinder and slide barrel baffl e off
studs.
Remove Retractable Starter
A
B
C
C
C
D
A Nut B Retractable Starter
C Stud D Engine Cover
Remove nuts securing retractable starter assembly to
engine cover; lift starter off studs.
To Next Page
