Install External Governor Controls
1. Install governor lever onto governor cross shaft.
2. Connect choke linkage into bushing/lever from back.
Make certain that control shaft offset is back.
Connect throttle linkage and spring to governor
lever.
3. Move governor lever toward carburetor as far as it
will go (wide-open throttle) and hold in position.
4. Insert a long thin rod or tool into hole on cross shaft
and rotate shaft counterclockwise (viewed from end)
as far as it will turn, then torque nut to 6.8 N·m
(60 in. lb.).
5. Connect governor spring from throttle control lever to
appropriate hole in governor lever. Connect
governed idle spring from governed idle bracket to
G-hole in governor lever. Refer to Governor Lever
and Hole Position/RPM Chart. Note that hole
positions are counted from pivot point of governor
lever.

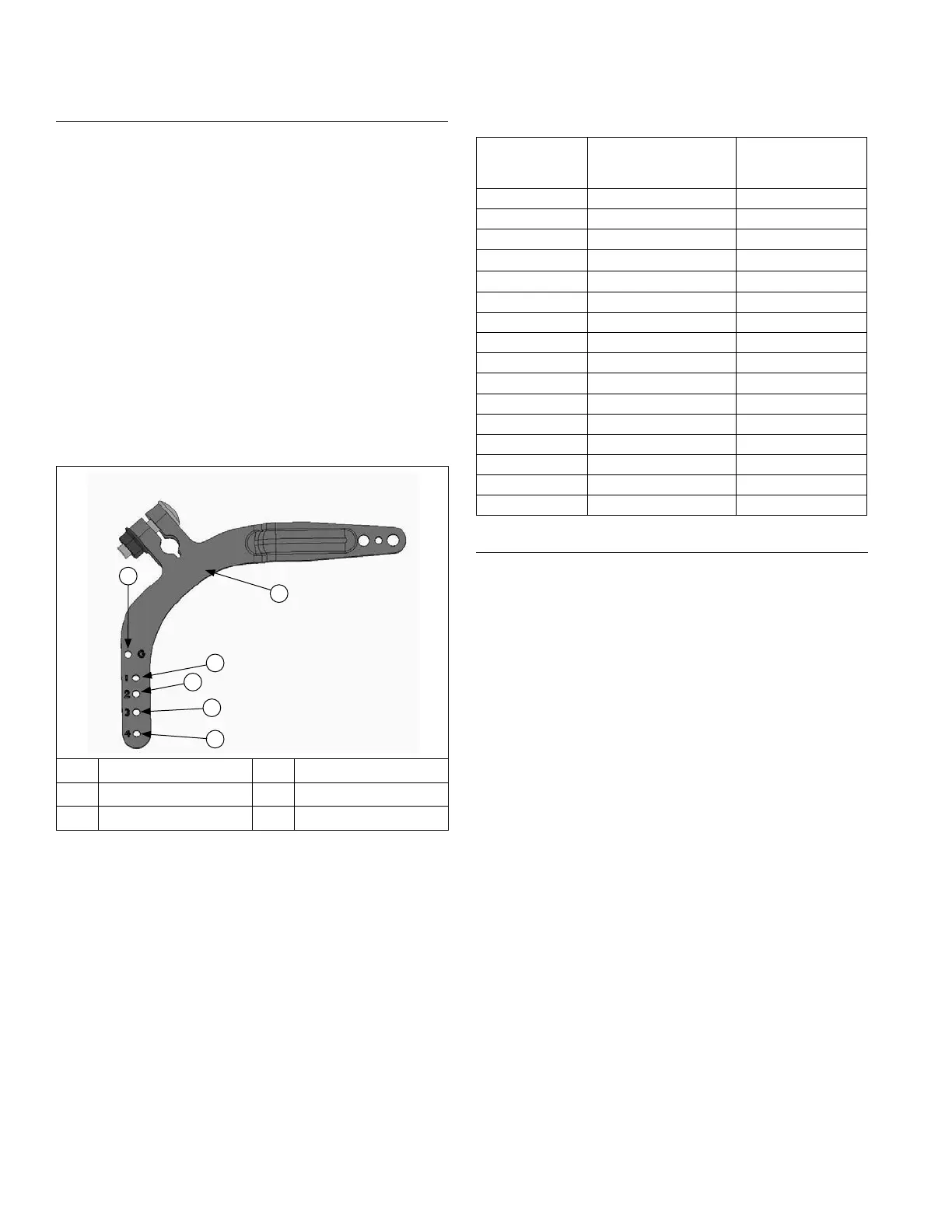

Governor Lever Hole Position
B
A
F
E
D
C
A Governor Lever B Governed Idle Hole
C Hole 1 D Hole 2
E Hole 3 F Hole 4
Governor Lever and Hole Position/RPM Chart
(Governed Idle, 10% Regulation)
High Idle
RPM
Governor Lever
Hole No.
Governor
Spring Color
Code
4200 4 Black
4000 3 Purple
3950 3 Purple
3900 3 Green
3850 3 Green
3800 3 Red
3750 3 Red
3700 2 Green
3650 2 Green
3600 2 Red
3550 2 Red
3500 2 Clear
3450 2 Clear
3400 2 Clear
3350 2 Clear
3300 2 Clear
Install Electric Starter Motor
1. Install starter motor using screws. Position lift
bracket to also secure dipstick tube.
2. Torque screws to 15.3 N·m (135 in. lb.).
3. Connect leads to solenoid.
4. Install dipstick tube and align mounting hole with
threaded hole in lift bracket. Secure with M5 screw.
Torque screw to 4.0 N·m (35 in. lb.).
Reassembly
64
