Specifi cations
524 690 32 Rev. A KohlerEngines.com
Dimensions in millimeters.
Inch equivalents shown in [ ].
FLYWHEEL SIDE
138.19
[5.440]
AIR FILTER COVER
ASSEMBLY REMOVAL
VALVE COVER
29.24 [1.151]
SPARK PLUG BOOT
94.01
[3.701]
413.75
[16.289]
OIL FILL
132.54
[5.218]
AIR FILTER COVER
ASSEMBLY REMOVAL
231.81 [9.126]
SAFETY AIR FILTER
ELEMENT REMOVAL
344.13 [13.548]
PRIMARY AIR FILTER
ELEMENT REMOVAL
41.35 [1.628]
SPARK PLUG
BOOT REMOVAL
71.27 [2.806]
SPARK PLUG REMOVAL
71.04 [2.797]
SPARK PLUG
REMOVAL
320.71
[12.626]
SPARK
PLUG
BOOT
REMOVAL
319.21
[12.567]
SPARK
PLUG
REMOVAL
29.81 [1.174]
SPARK PLUG BOOT
OIL FILTER
20˚
20˚
319.10
[12.563]
SPARK
PLUG
REMOVAL
320.65
[12.624]
SPARK
PLUG
BOOT
REMOVAL
70.11 [2.760]
SPARK PLUG
BOOT REMOVAL
15.50
[0.610]
OIL FILTER
REMOVAL
92.10
[3.626]
ENGINE MOUNTING SURFACE
MOUNTING HOLE “A”
ENGINE
184.20
[7.252]
134.79
[5.307]
139.99
[5.512]
CRANKSHAFT
4X Ø 10.3 [0.406] MOUNTING HOLES (THRU)
ENGINE MOUNTING SURFACE
MOUNTING HOLE “A”
LIFT STRAP
444.77
[17.511]
STARTER SIDE
51.00
[2.008]
OIL DRAIN PLUG 3/8” NPT
12.28
[0.483]
89.00
[3.504]
67.50
[2.657]
MUFFLER MOUNTING
BOSSES
12.00
[0.472]
EXHAUST
PORT #1
50.00
[1.969]
SPARK PLUG
OIL FILL
DIPSTICK
30.00
[1.181]
SPARK PLUG
OIL FILTER SIDE
ENGINE MOUNTING SURFACE
OIL DRAIN PLUG 3/8” NPT
353.02
[13.898]
209.95
[8.266]
51.95
[2.045]
MOUNTING
HOLE “A”
67.50
[2.657]
MUFFLER MOUNTING
BOSSES
32.00
[1.260]
EXHAUST
PORT #2
622.28
[24.499]
REGULATOR RECTIFIER
101.45
[3.994]
85.50
[3.366]
155.52
[6.123]
152.08
[5.987]
OIL FILTER
64.02
[2.520]
99.93
[3.934]
52.75
[2.077]
OIL FILTER
4.07
[0.160]
PILOT
89.00
[3.504]
12.28
[0.483]
15.07
[0.593]
Ø 28.45 [1.120]
Ø 47.0-50.0
7/16-20 UNF-2B INCH 38.1
CTSK Ø 12.5-14.5 X 60˚
4 X Ø 25.0
7/16-14 UNF-2B INCH 21.0
CTSK Ø 13.5 X 90˚
LIFT STRAP
334.79
[13.181]
75.28
[2.964]
122.11
[4.808]
308.12
[12.131]
SOLENOID
SHIFT
STARTER
65.00
[2.559]
MUFFLER
MOUNTING
30˚
30˚
M8 X 1.25
4 STUDS
50.00
[1.969]
EXHAUST
PORT #1
MOUNTING
HOLES
50.00
[1.969]
EXHAUST
PORT #2
MOUNTING
HOLES
283.58
[11.164]
MUFFLER
MOUNTING
PTO SIDE
REGULATOR ASSEMBLY
ENGINE MOUNTING SURFACE
MOUNTING HOLE “A”
4 X Ø 25.0
3/8-16 UNC-2B INCH 21.0
CTSK Ø 12.0 X 90˚
4 X Ø 21.0
5/16-24 UNF-2B INCH 17.0
CTSK Ø 7.0 X 90˚
PILOT Ø 146.05 [5.750]

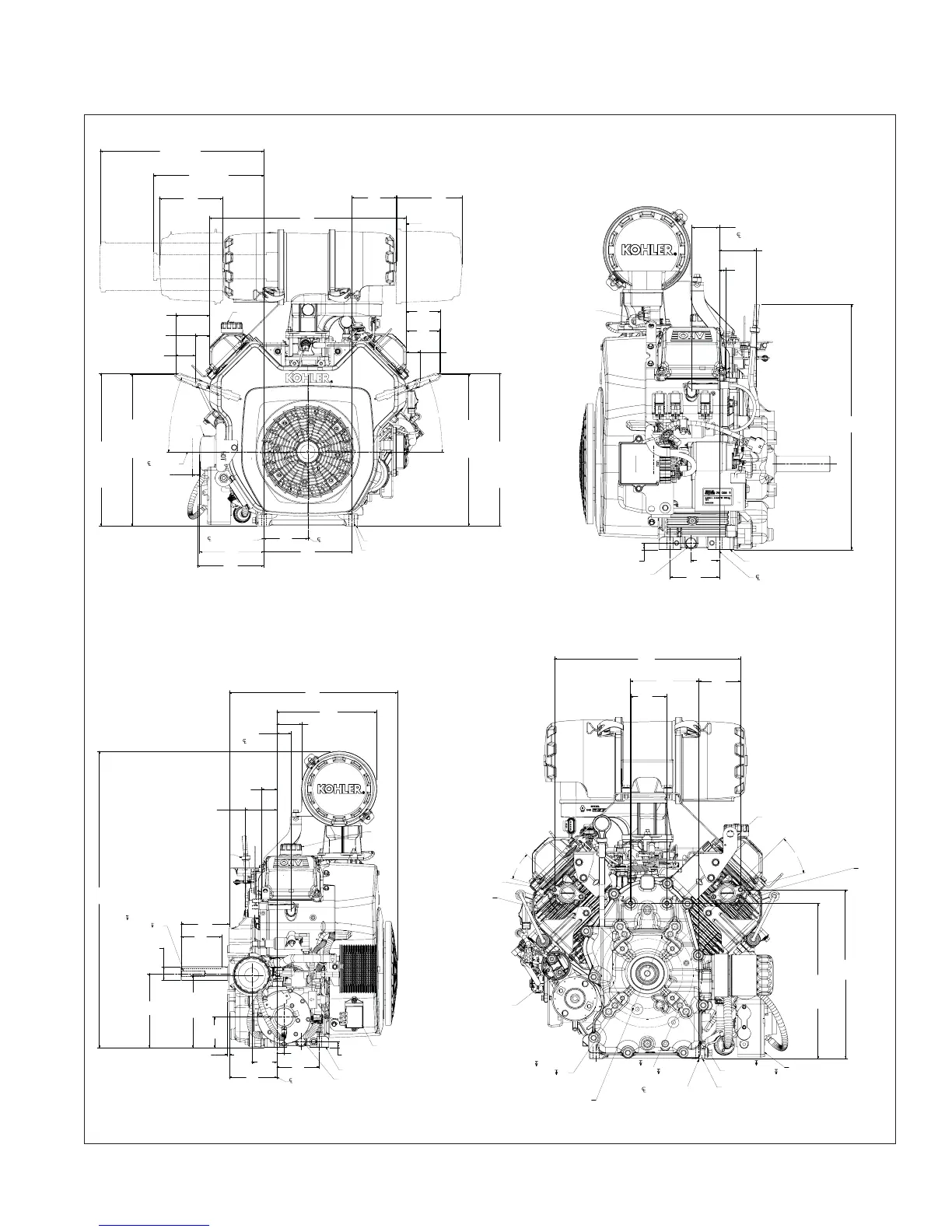

Engine Dimensions with Heavy-Duty Air Cleaner
