Kohler command pro PCH740 - Page 58

WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Before disconnecting negative (–) ground cable, make sure
all switches are OFF. If ON, a spark will occur at ground
cable terminal which could cause an explosion if hydrogen
gas or propane fuel vapors are present.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

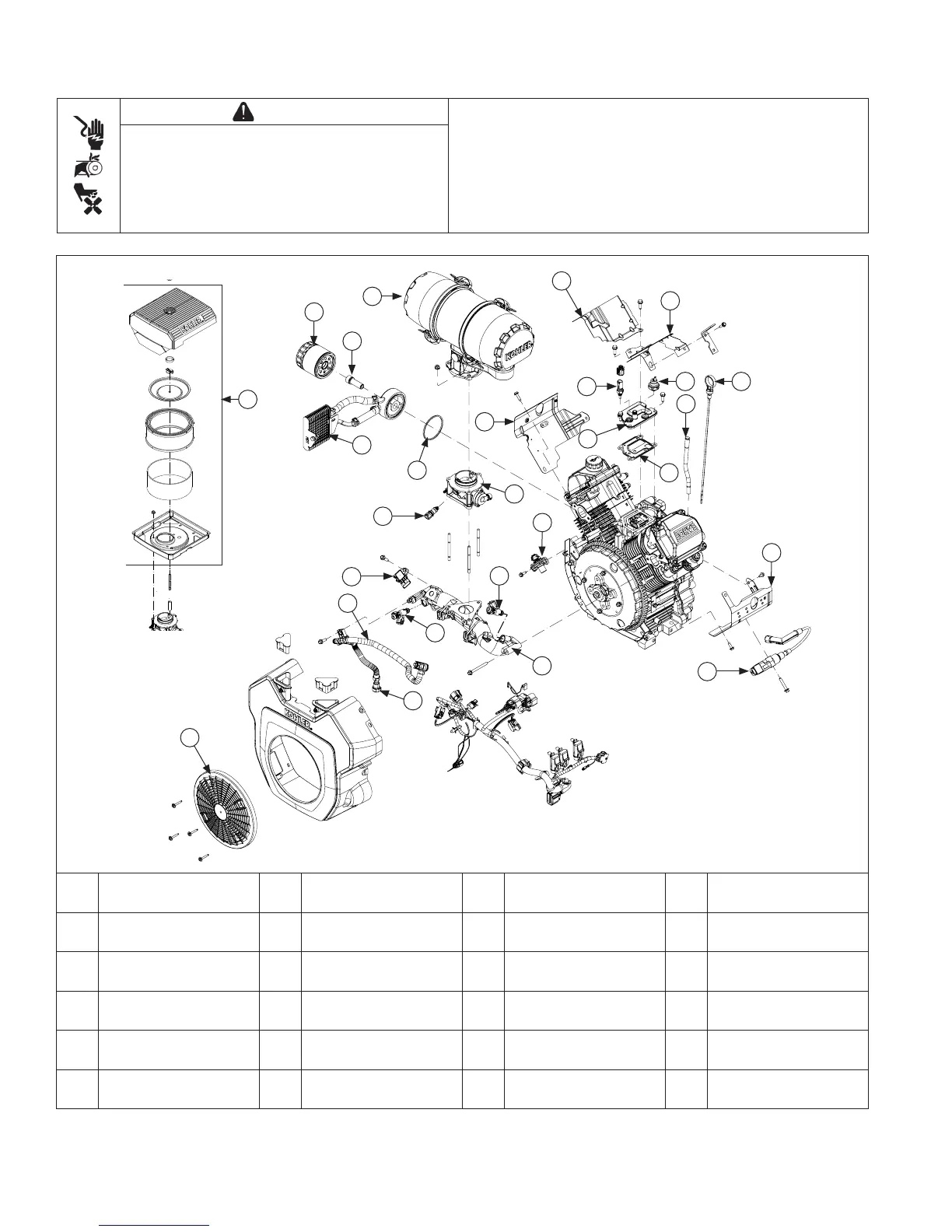

External Engine Components
A
I
C
M
R
L
G
K
I
B
H
F
Q
U
N
X
K
O
P
S
D
E
J
T
S
W
V
A
Heavy-Duty Air
Cleaner
B
Low-Profi le Air
Cleaner
C Oil Filter D Nipple
E Oil Cooler F Oil Cooler O-Ring G
Air Temperature
Sensor
H
Throttle Body
Assembly
I Barrel Baffl e J
Oil Temperature
Sensor
K Valley Baffl e L Oil Sentry
™
M Dipstick Tube N Dipstick O
Breather Cover
Gasket
P Breather Cover
Q Ignition Coil R
Crankshaft Position
Sensor
S
Gaseous Propane
Fuel Injector
T Intake Manifold
U MAP Sensor V
High Pressure Fuel
Line Assembly
W Fuel Quick Connect X Debris Screen
Disassembly/Inspection and Service
58 24 690 32 Rev. AKohlerEngines.com
