A
D
M
F
E
C
L
I
K
J
N
P
O
Q
B
G
Style AStyle B
RS
H
A Valve Cover B Valve Cover O-ring C Hex Flange Screw D Rocker Arm Pivot
E Rocker Arm F Push Rod G Hydraulic Lifter H Valve Cap
I Valve Keeper J Valve Spring K Valve Seal L
Valve Spring
Retainer
M Spark Plug N Cylinder Head O
Cylinder Head
Gasket
P Valve
Q Dowel Pin R
Hydraulic Lifter
Style A (Ribbed)
S
Hydraulic Lifter
Style B (Smooth)

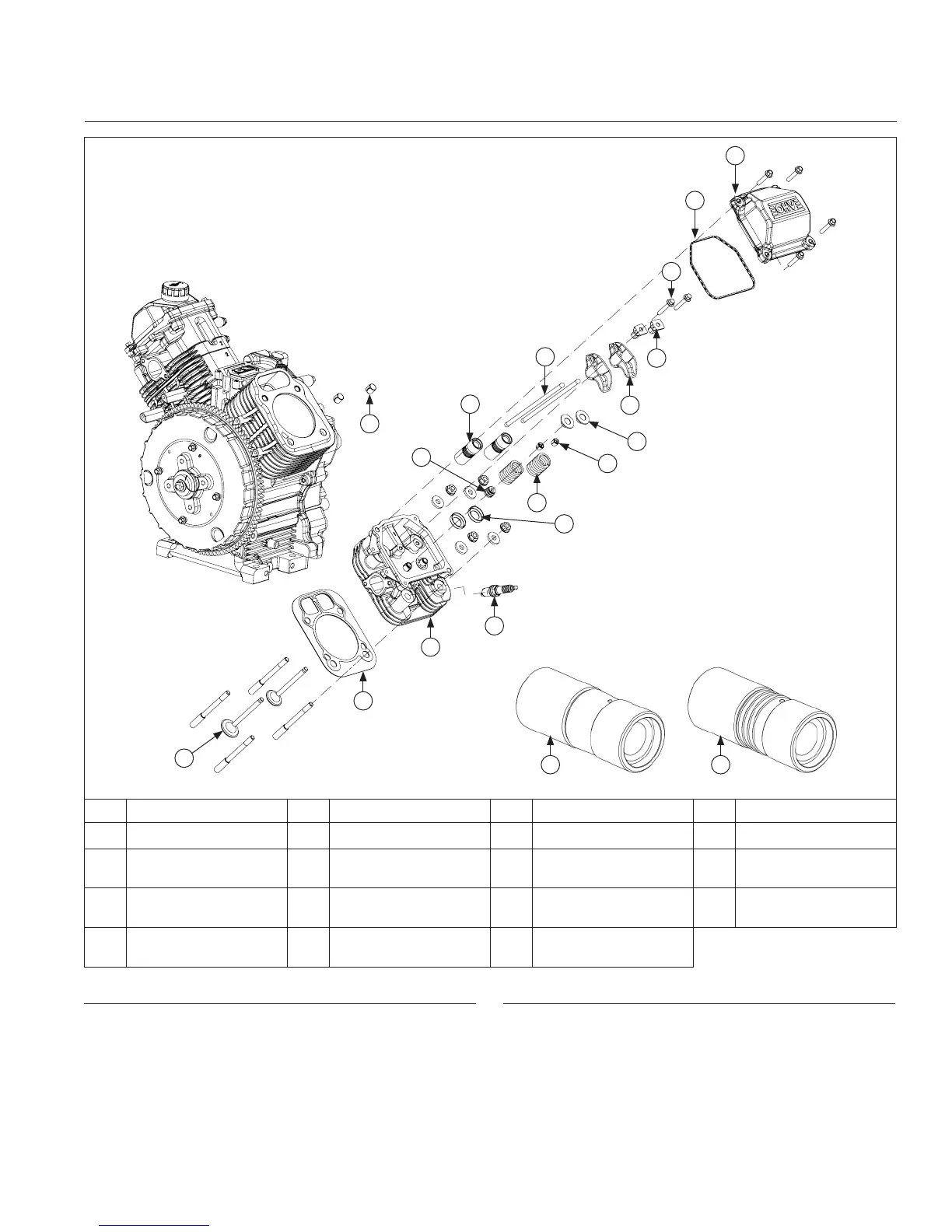

Cylinder Head Components
Remove Valve Covers
1. Remove screws securing each valve cover. Note
valve cover differences for proper location in
reassembly. Ensure any brackets removed are
reassembled in same location.
2. Covers should lift off without prying.
Remove Spark Plugs
Remove spark plug from each cylinder head.
Disassembly/Inspection and Service
