8. Connect the Wiring - Hardwired
WARNING: Risk of electric shock. Grounding is required. A qualified electrician should make all
electrical connections.
NOTE: Follow this step when hardwiring your toilet. If you are using the plug-in cord, continue to the
″Check Operation″ section.

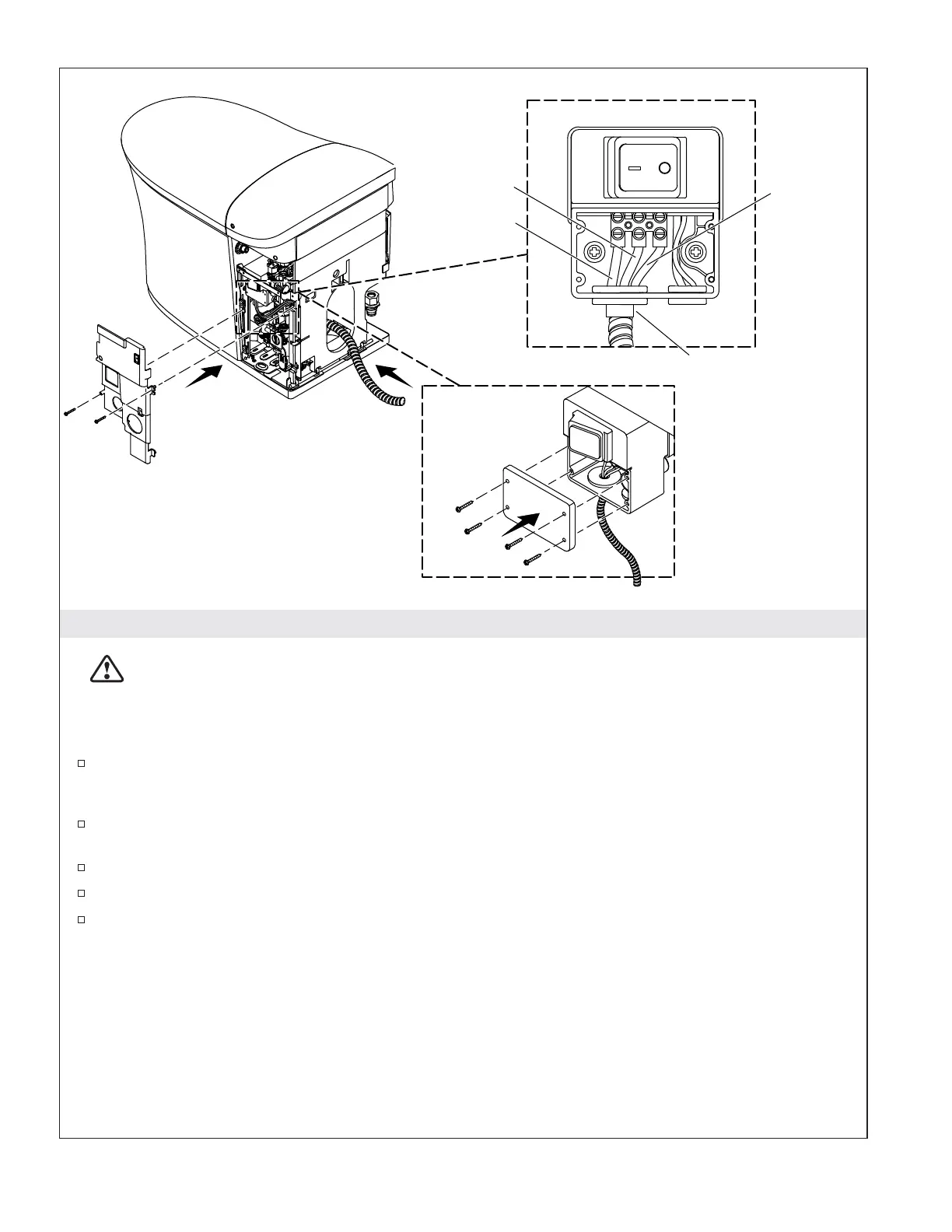

Route the branch circuit supply conductors through UL Listed flexible conduit from the junction box
or other approved enclosure to the field wiring compartment at the rear of the toilet as shown and
in accordance with local electrical installation codes.
Using a suitable strain relief, connect the Line, Neutral, and Ground wires to the electrical
connections as shown.
Install the electrical connection cover with the four screws.
Install the electrical panel cover with the two screws.
Continue to the ″Check Operation″ section.
Line (Black)
Neutral
(White)
Ground
(Green)
Qualified electrician
to provide suitable
strain relief.
Kohler Co. 11 1295780-2-A
