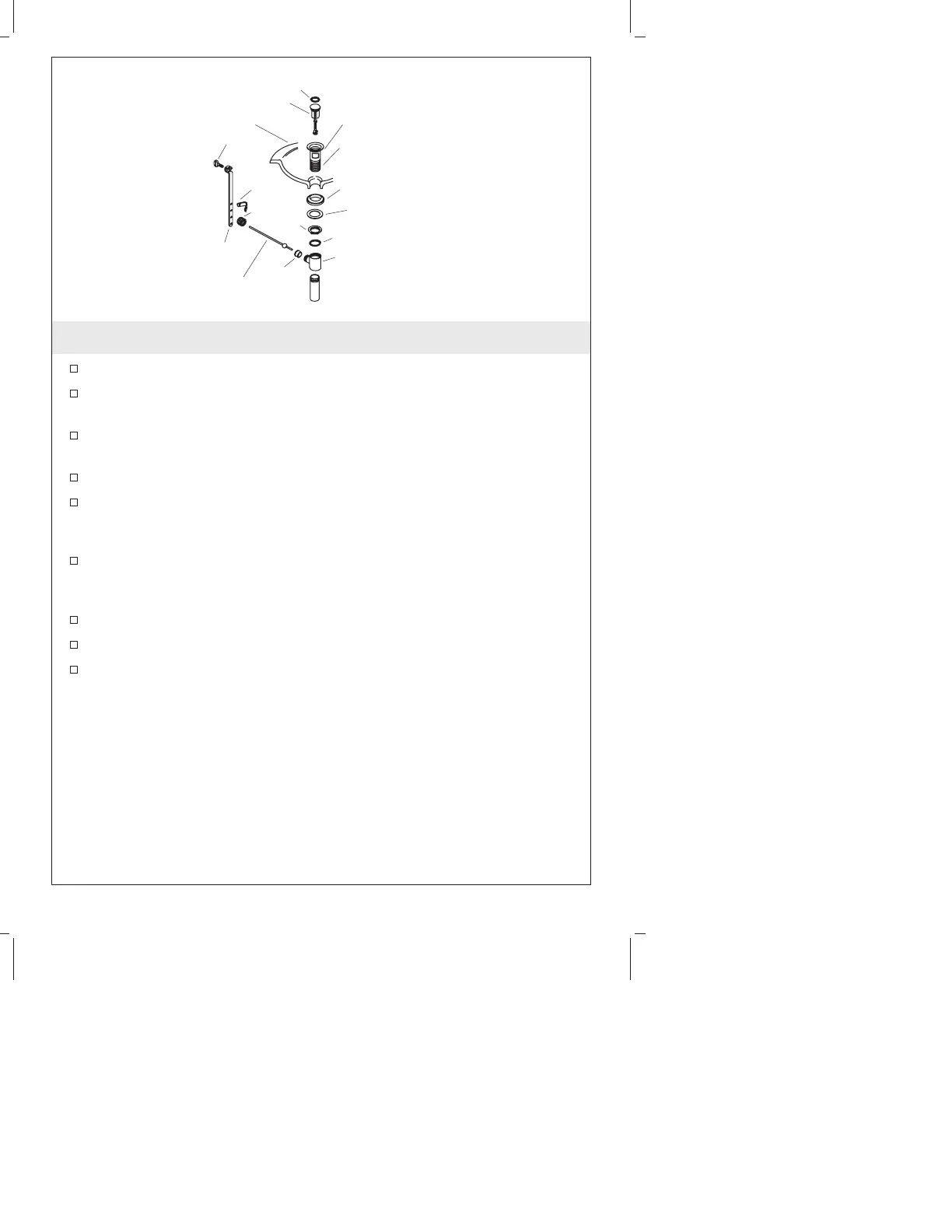

6. Drain Installation-Style A
Remove the protective material from the flange.
Wrap the bottom 2/3 of the flange threads with three layers of
sealant tape.
Apply a ring of plumbers putty or other sealant to the underside
of the flange according to the putty manufacturer’s instructions.
Insert the flange into the fixture drain hole.
Assemble the gasket (tapered side up) and washer to the flange
and partially thread the nut to the flange. Do not fully tighten the
nut at this time.
Install the body washer and drain body with the seal hole facing
the back of the fixture and securely tighten the nut. Use care to
avoid scratching the finish.
Remove any excess putty or sealant.
Insert the stopper into the flange.
Insert the seal into the seal hole on the body.
Seal
Stopper
Lavatory
Screw
Spring
Clip
Gasket
Nut
Nut
Link
Rod
Seal
Flange
Apply Plumbers
Putty.
Apply 3 layers of
sealant tape to
bottom 2/3.
Washer
Body Washer
Drain Body
