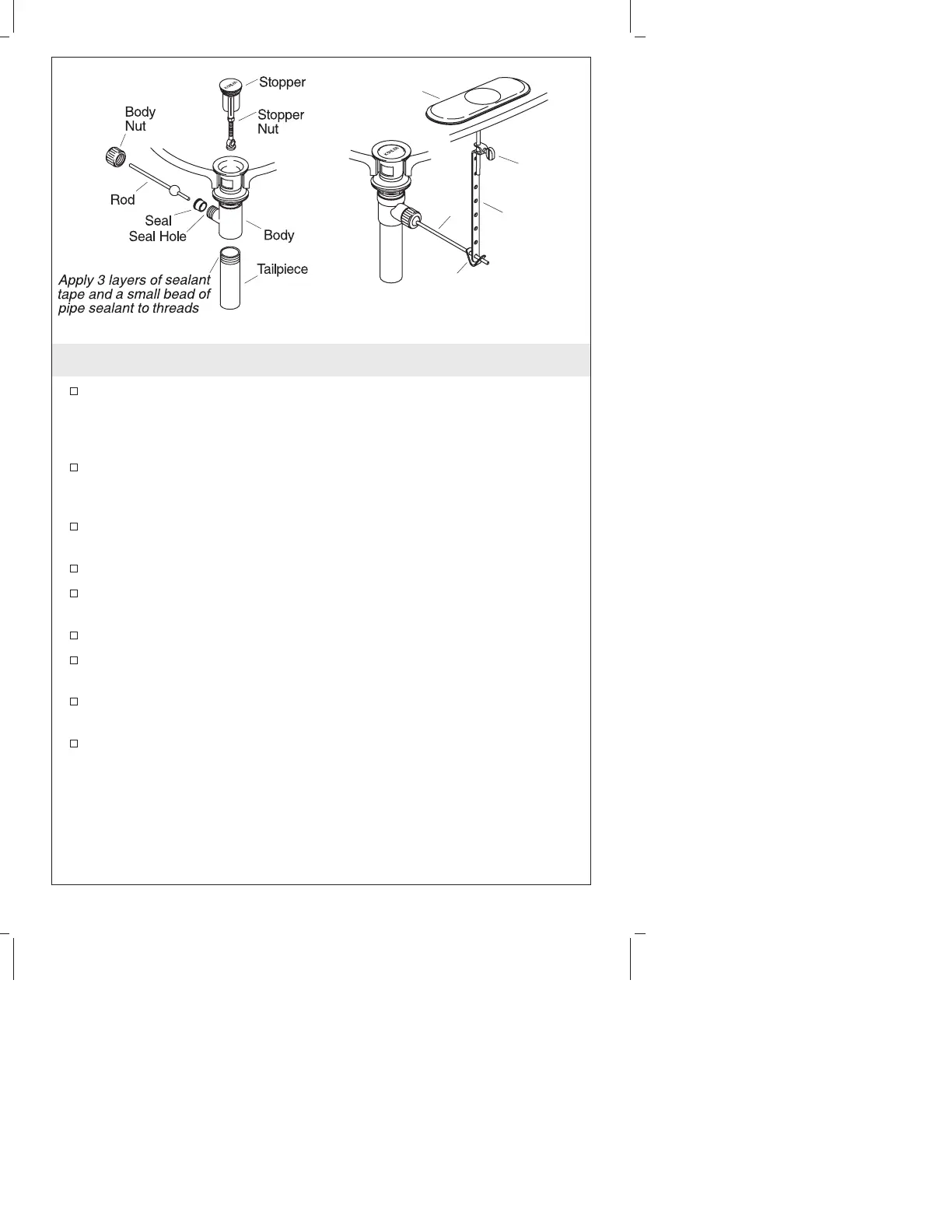

7. Complete Drain Installation-Style A
For regular installations, insert the short end of the rod into the
body seal hole and under the stopper. For vandal-resistant
installations, fit the rod through the hole in the stopper. Secure
with the body nut.
Remove and adjust the stopper so it lifts about 3/8″ (1 cm) when
opened. To adjust, loosen the stopper nut and shorten or lengthen
the stopper as needed. Tighten the stopper nut.
Apply three layers of thread tape and a small bead of pipe
sealant to the tailpiece threads.
Thread the tailpiece to the body and tighten securely.
Slide one end of the clip onto the rod. Slide the link onto the rod
with the thumbscrew facing the back of the fixture.
Squeeze the other end of the clip, aligning the hole with the rod.
Move the link to the proper position by squeezing the clip and
sliding it along the rod.
Insert the lift rod into the hole in the faucet and then into the
hole in the link.
Tighten the thumbscrew onto the link so the lift rod knob extends
above the lift rod hole.
Faucet
Rod
Clip
Thumb
Screw
Link
Kohler Co. 9 1010441-2-B
