Kohler K-18829 - Install the Actuator

10. Install the Actuator

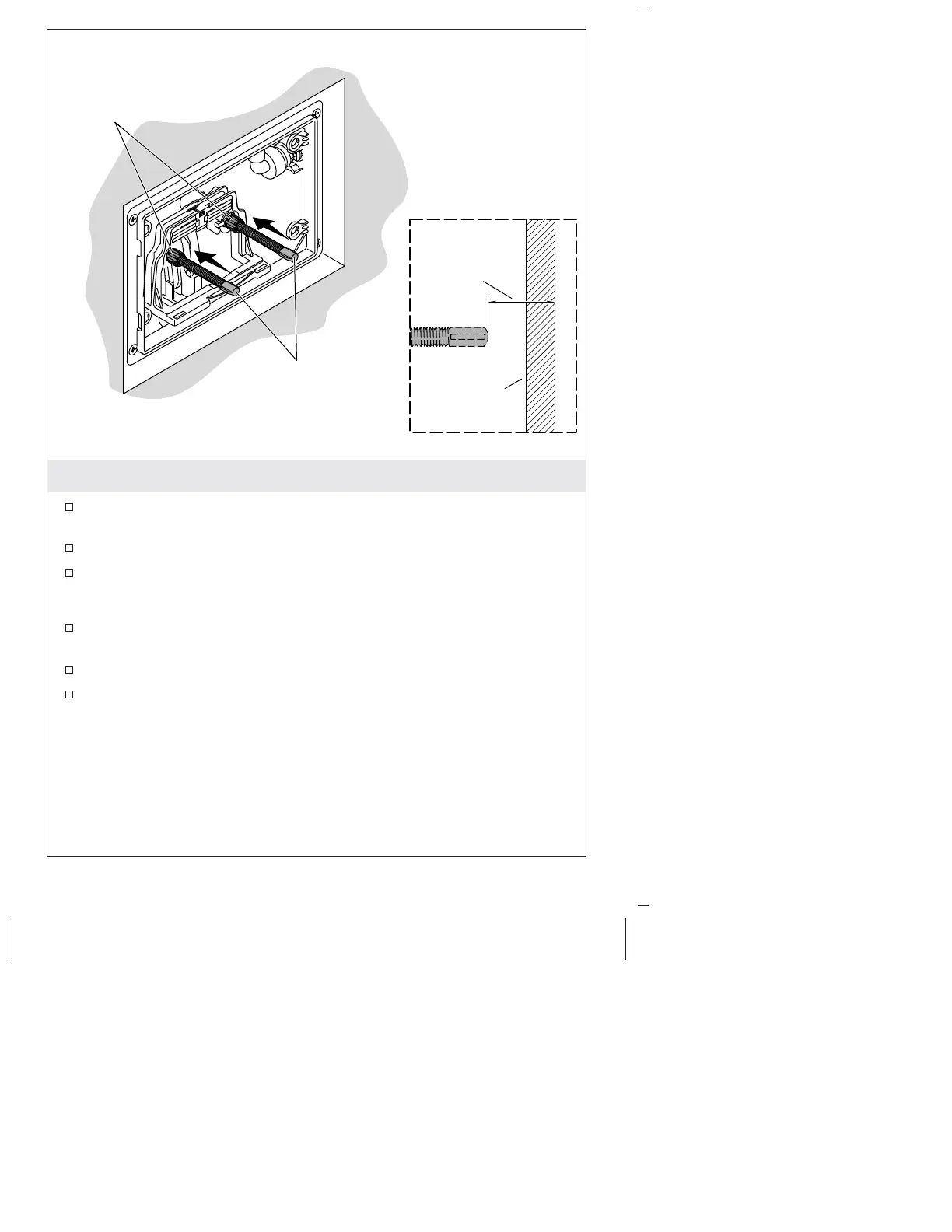

Thread the push rods into the actuator assembly 1/2″ (13 mm)
behind the finished wall.
If needed, trim the threaded end of the push rods.
Secure the push rods in place with the push rod nuts.
K-4177, K-8857 and K-5413
Thread the push rods into the actuator assembly flush with the
finished wall.
If needed, trim the threaded end of the push rods.
Secure the push rods in place with the push rod nuts.
1/2"
(13 mm)
Min
Push Rod
Nuts
Push Rods
Finished
Wall
Side View
1246750-2-B 16 Kohler Co.
