1. Install the Framing
IMPORTANT! Note the 1-3/4″ (44 mm) or 3-1/4″ (83 mm)
dimension from the front edge of the framing to the center of the
outlet pipe depending on your installation. This dimension is critical
for the installation.
NOTE: Refer to the specification sheet for more details and
dimensions for roughing-in.
NOTE: The waste outlet pipe may need to be relocated for this
installation.
NOTE: A PVC elbow is supplied with this product. A cast iron
elbow may be required by codes in some areas. The height of the
toilet drain pipe may need to be adjusted if the cast iron elbow is
used.
NOTE: Double studs must be used on either side of the stud
pocket.

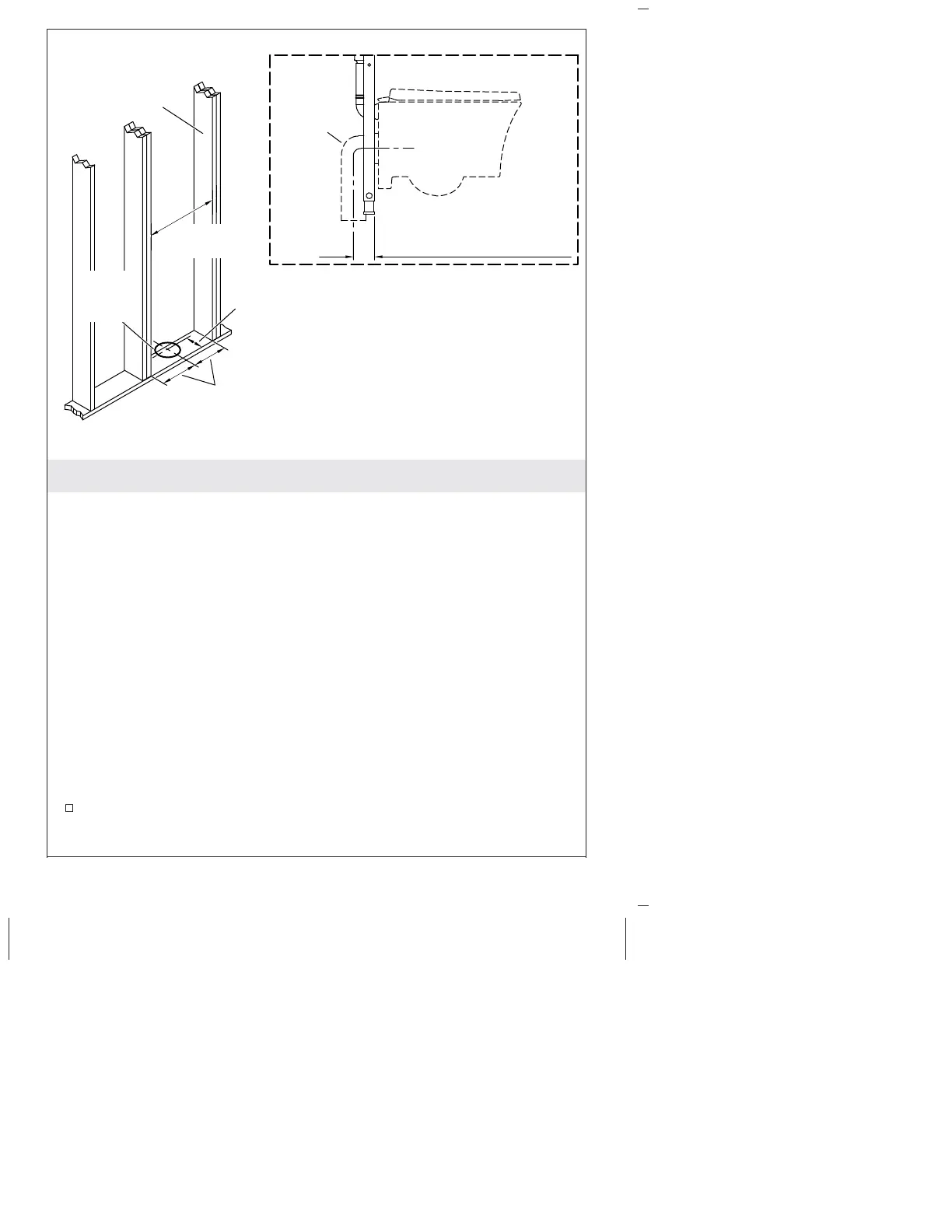

Construct the stud pocket using the dimensions shown.
1-3/4" (44 mm) [2x4 Studs]
3-1/4" (83 mm) [2x6 Studs]
2x4 Studs or
2x6 Studs
8" (203 mm) [Plywood Subfloor]
9-1/8" (232 mm) [Concrete Subfloor]
Waste
Outlet
Pipe
23-1/4"
(591 mm)
PVC
Elbow
1-3/4" (44 mm) [2x4 Studs]
3-1/4" (83 mm) [2x6 Studs]
1246750-2-B 4 Kohler Co.
