1. Install the Wall Elbow
NOTE: If desired, remove the adapter using a 3/8 hex wrench if a
male hose connection is used.
Rough-in a 1/2 NPT nipple that extends 9/16 (1.4 cm) from the
finished wall.
Wet the O-ring with water.
Insert the O-ring into the grooves of the escutcheon.
Slide the escutcheon onto the elbow.
Apply clear silicone caulk or sealant to the back of the escutcheon
according to the sealant manufacturer’s instructions.
Thread the wall elbow onto the nipple.
Tighten the wall elbow using a clean strap wrench or heavy duty
screwdriver inserted into the outlet.
Press the escutcheon against the finished wall.
Remove any excess caulk or sealant.

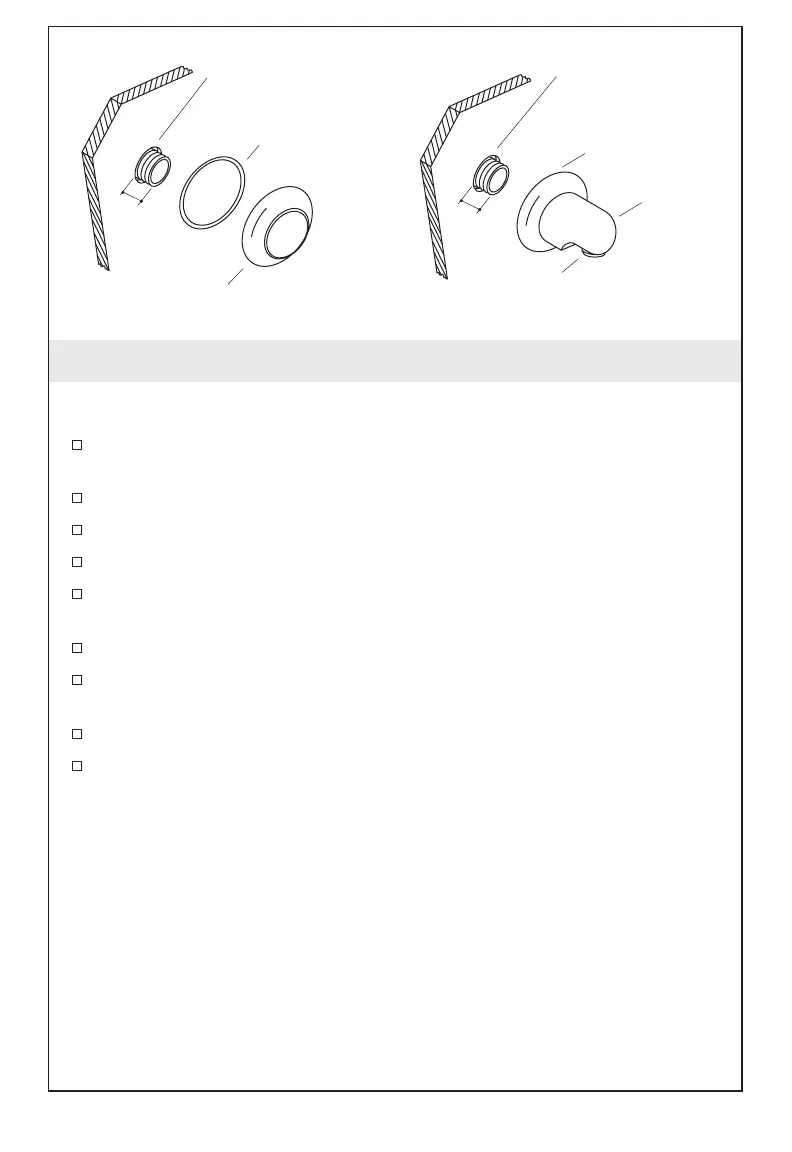

Escutcheon
O-Ring
1/2" NPT Nipple
9/16"
(1.4 cm)
Adapter
Elbow
1/2" NPT Nipple
9/16"
(1.4 cm)
Apply caulk to
escutcheon.
Kohler Co. 3 1000524-2-AD
