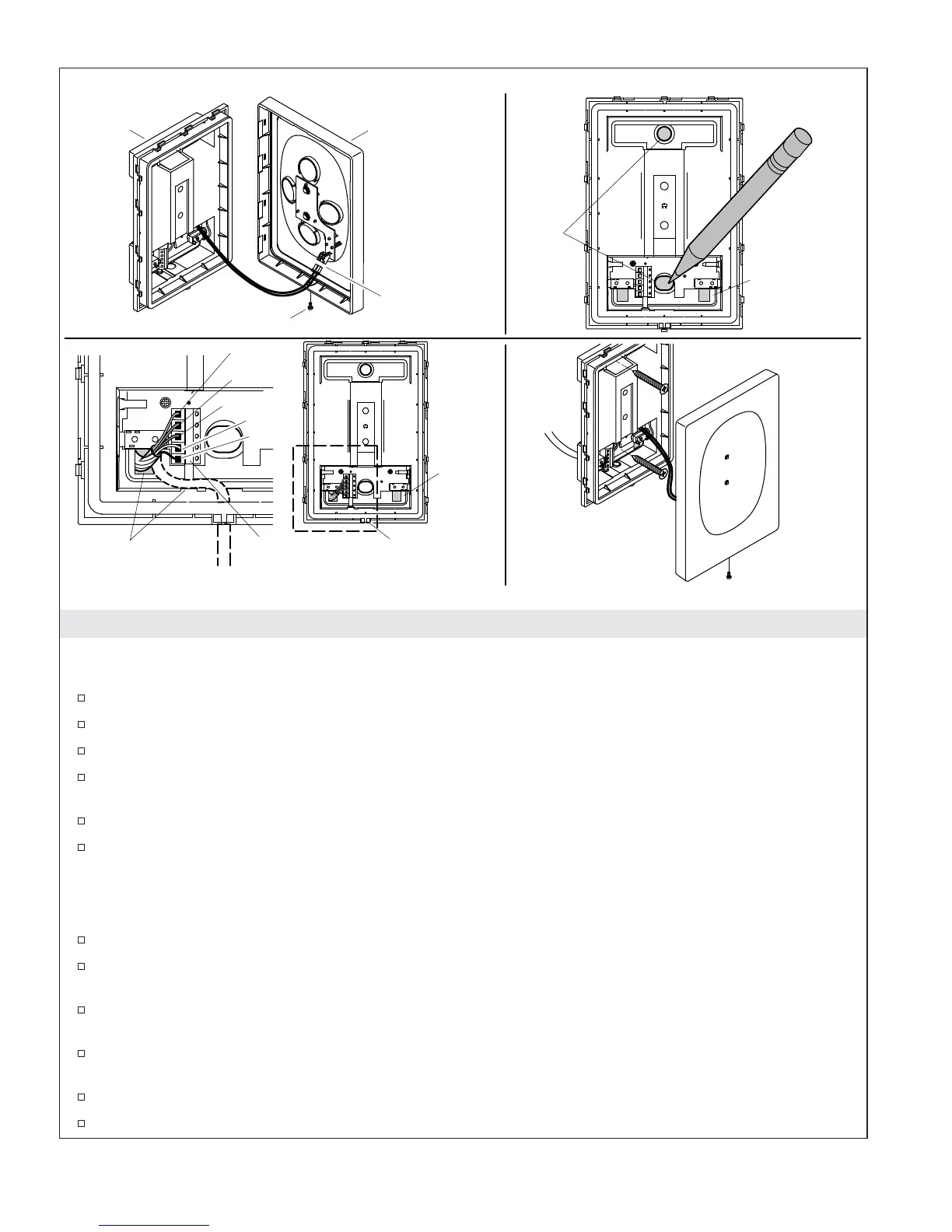

1. Install the Remote Dock
NOTE: The docking station comes with a 15’ (4.6 m) cord. Locate the docking station to allow the docking
cord to reach the toilet.
Unpack the box containing the remote control components.
Remove the remote control from the dock and set aside.
Remove the small screw on the bottom of the docking station.
Carefully remove the cover plate by gently prying the sides of the cover plate out until they
disconnect from the dock.
Carefully disconnect the cover plate plug.
Tape the screw to the cover plate and set it aside.
NOTE: When the docking station cord is routed externally through the wall, it may be easier to use the
back cord opening. When the cord is routed externally along the face of the wall, use the bottom cord
opening.
For installations using the back cord opening, route the power cord through the back cord opening.
For installations using the bottom cord opening, route the power cord through the bottom cord
opening.
Position the docking station in the installation position and mark the screw locations using the dock
as a template.
Drill appropriate size mounting holes at the screw mounting locations. The size of the hole will
depend on the need for wall anchors, wall material, and installation requirements.
Loosen each of the five small screws located where the wires will be connected.
Run the power cord into the docking station.
Holes
Red
Blue
White
Black
Orange
Screw
Connector
Harness
Docking
Cord
Back Cord
Opening
Bottom Cord
Opening
Back Cord
Opening
Disconnect.
Front Plate
Rear
Plate
1132336-2-D 10 Kohler Co.
