1. Install the Framing
IMPORTANT! This installation requires 2x6 studs. Note the
center-to-center stud dimension is not standard.
IMPORTANT! Note the 3-3/4″ (95 mm) dimension from the front
edge of the framing to the center of the outlet pipe. This dimension
is critical for the installation.
NOTE: Refer to the specification sheet for more details and
dimensions for roughing-in.
NOTE: The waste outlet pipe may need to be relocated for this
installation.
NOTE: A PVC elbow is supplied with this product. A cast iron
elbow may be required by codes in some areas. The height of the
toilet drain pipe may need to be adjusted if the cast iron elbow is
used.
NOTE: Double studs must be used on either side of the stud
pocket.

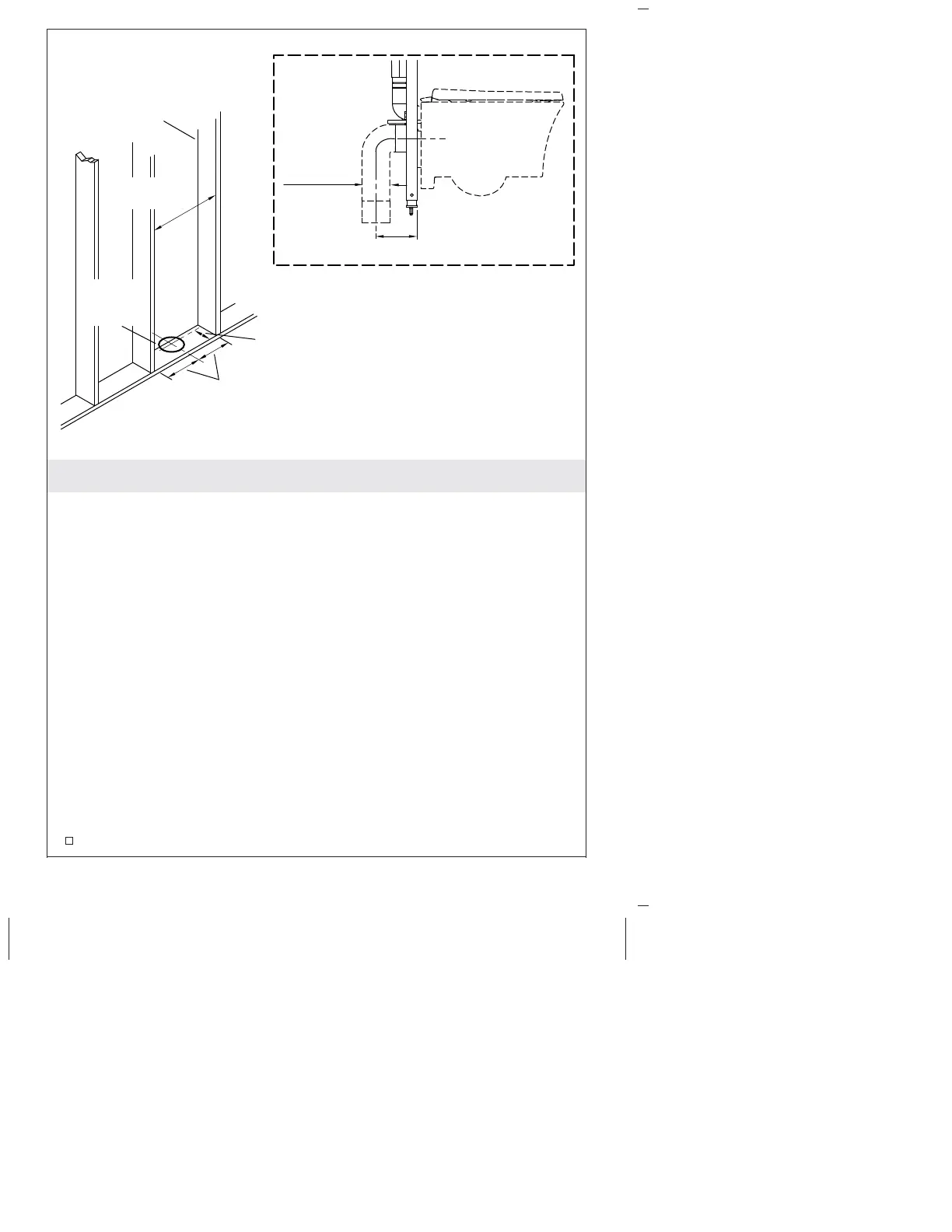

Construct the stud pocket using the dimensions shown.
19"
(483 mm)
19"
(483 mm)
Waste
Outlet
Pipe
3-3/4" (95 mm)
9-1/2" (483 mm)
2x6 Studs
19"
(483 mm)
3-3/4" (95 mm)
Ø 3-9/16"
(90 mm)
1142998-2-D 4 Kohler Co.
