Verify the Temperature Settings
CAUTION: Risk of personal injury. The water temperature
should never be set above 120° F (49° C).
NOTE: The thermostatic valve cartridge is calibrated at the factory
for a shower temperature of approximately 104° F (40° C) to 105° F
(41° C) and a maximum hot temperature of 120° F (49° C).
Turn the water on.
Attach a trim handle or plaster guard (found in volume control
valve K-671 or K-681 or transfer valve K-672) onto the valve
spline adapter.
Turn the valve spline adapter fully counterclockwise so the trim
handle or plaster guard can no longer move. The valve spline
adapter is now in the full hot position.
Allow the water to run for several minutes to stabilize the water
supply temperatures.
Position a thermometer in the water stream to check the
temperature of the hot water.
If the water temperature exceeds 120° F (49° C) or is less than
desired, proceed to the ″Hot Temperature Adjustment″ section.
Turn the trim handle or plaster guard clockwise until you hear a
click. Do not turn any farther. This is the shower temperature
position.

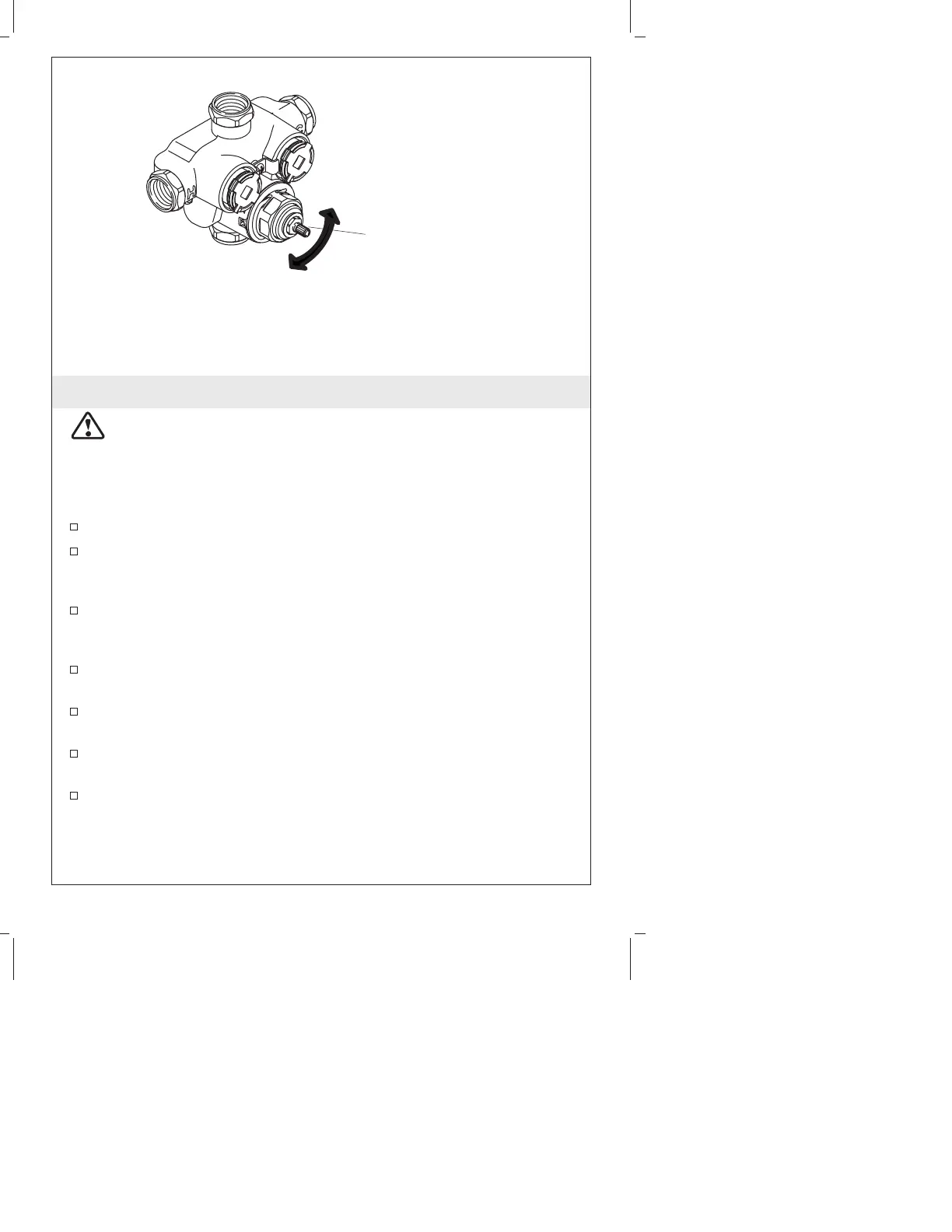

Valve Spline Adapter
Increase
temperature.
Decrease
temperature.
1041158-5-B 4 Kohler Co.
