Shower Temperature Adjustment
NOTE: To ensure the correct shower temperature, first turn the
valve spline adapter to the full hot position then adjust the shower
temperature.
Place the trim handle (not shown) or plaster guard (not shown)
onto the valve spline adapter.
Turn the valve spline adapter fully counterclockwise so the trim
handle or plaster guard can no longer move. The valve spline
adapter is now in the full hot position.
Next, turn the trim handle or plaster guard clockwise until you
hear a click. Do not turn an farther. This is the shower
temperature position.
Remove the trim handle or plaster guard from the valve spline
adapter.
Allow the water to run for a few minutes to stabilize the
temperature.
If the temperature is less than 104° F (40° C):
Pull out the detent collar.
Turn the detent collar counterclockwise.
Verify the temperature.
If the temperature is greater than 105° F (41° C):
Pull out the detent collar.

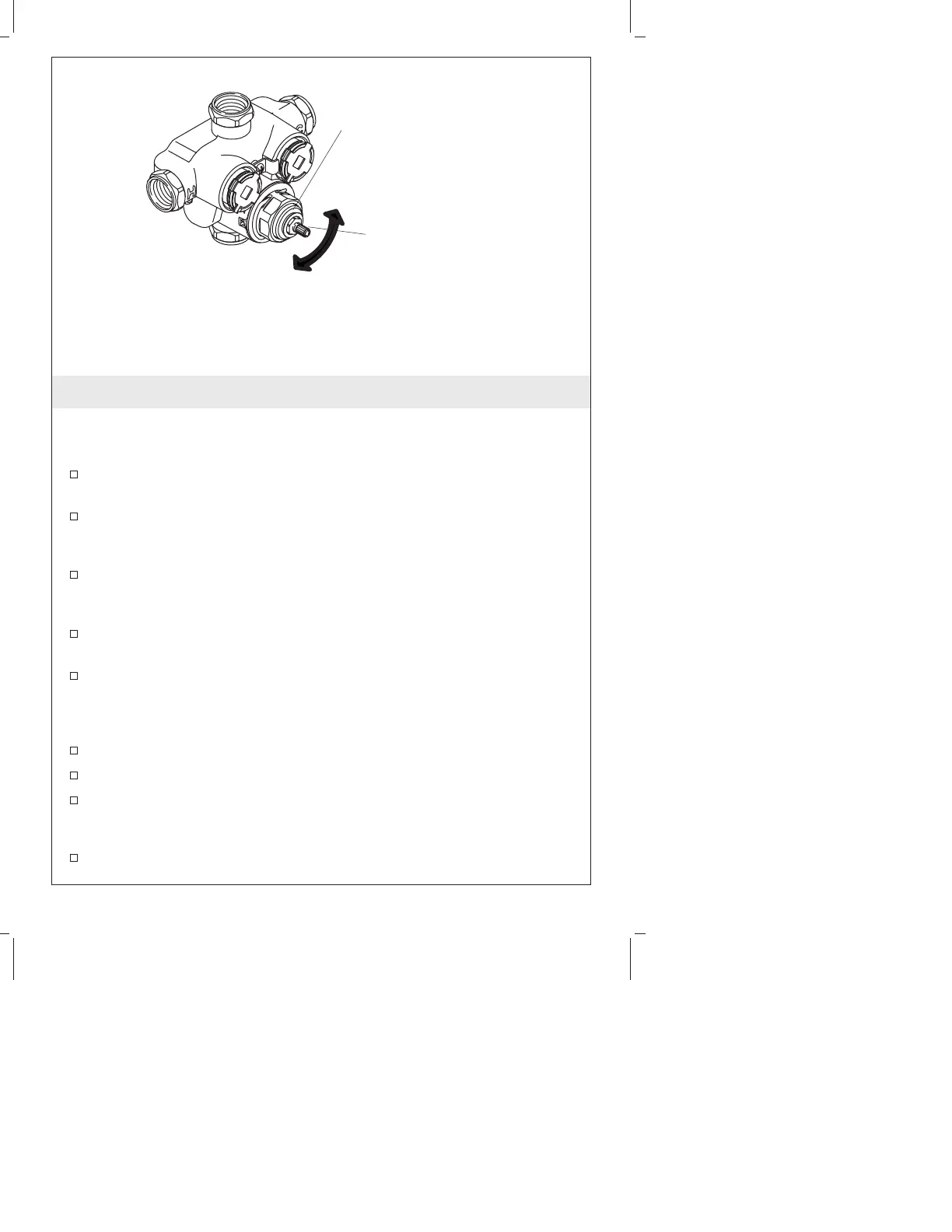

Detent Collar
Valve Spline Adapter
Increase
temperature.
Decrease
temperature.
1041158-5-B 8 Kohler Co.
