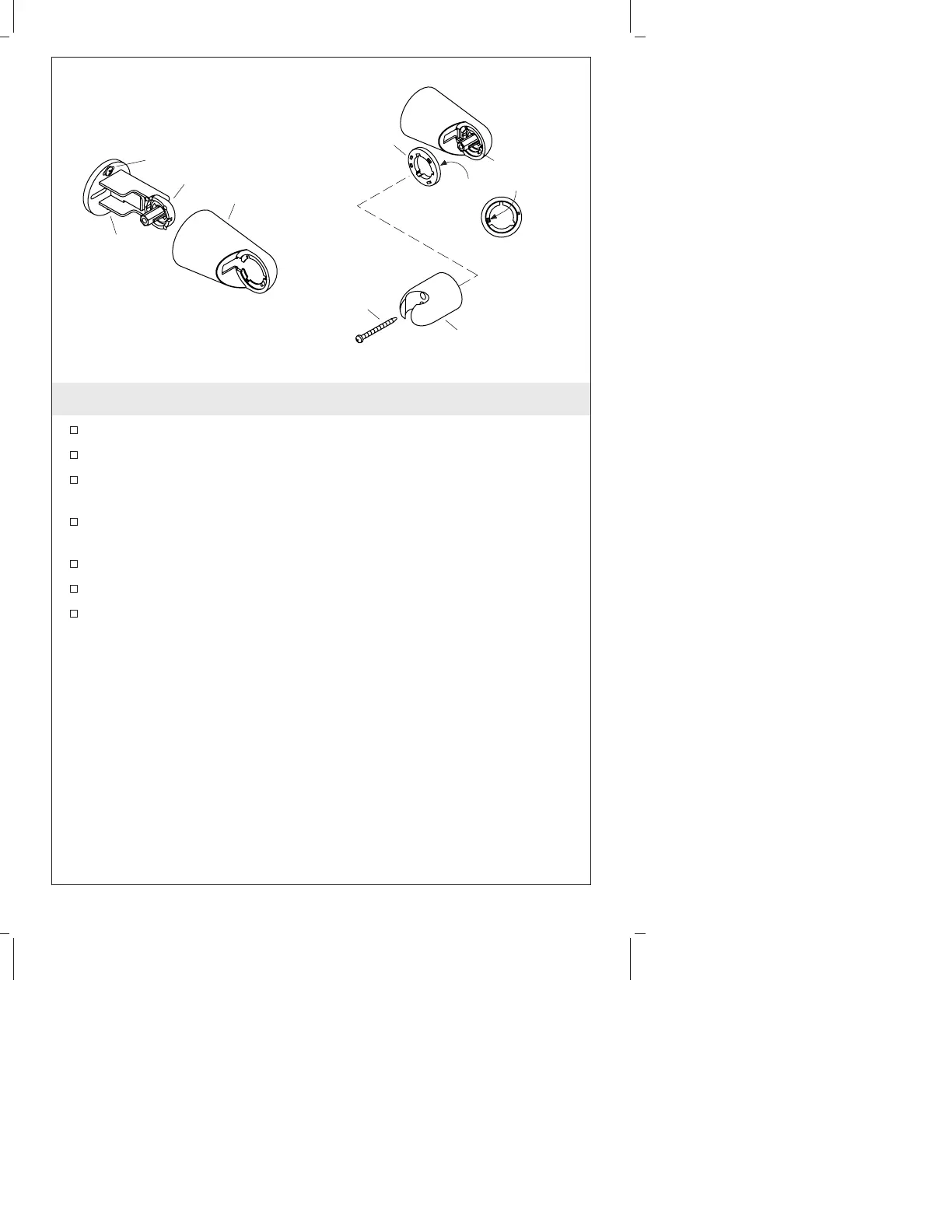

3. Install the Spray Holder
Secure the bracket to the finished wall with the provided screws.
Fit the housing over the bracket, and snap it into place.
Position the ring onto the housing with the larger of the two
indents situated over the housing tab.
Position the spray holder on the ring with the tapered end of the
groove facing down.
Secure the spray holder in place with the provided screw.
Tighten until snug. The spray holder should be able to rotate.
Adjust the screw as needed.
Screw
Screw
Bracket
Housing
Ring
Larger Indent
Spray Holder
Screw
Housing
Tab
Back View
089408-2-AC 4 Kohler Co.
