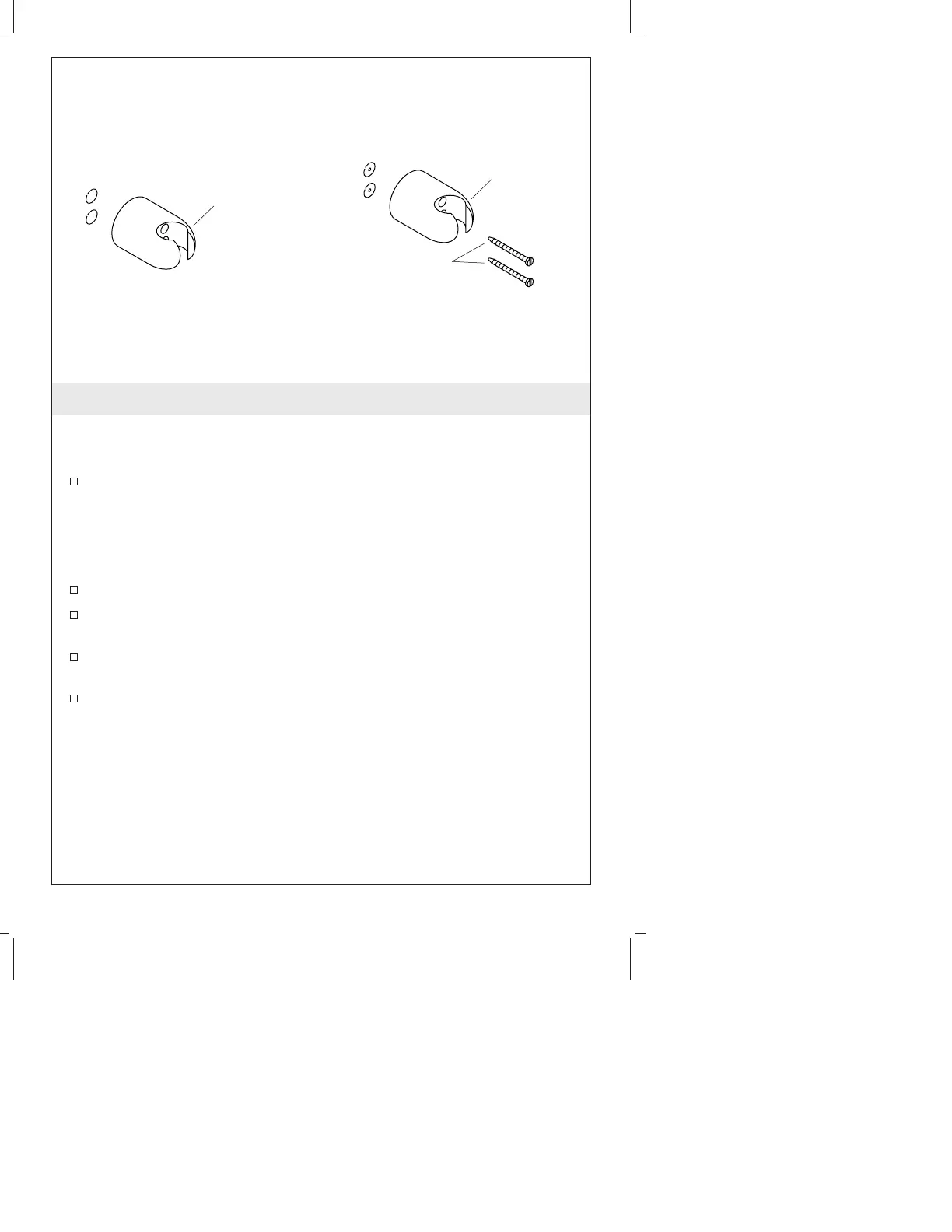

4. Install the Wall Bracket
NOTE: This accessory should not be installed in the area 24″ (61 cm)
to 48″ (121.9 cm) from the floor (the critical support area as defined
in ASTM F446).
Position the wall bracket in the desired install location against the
finished wall, and mark the top and bottom hole locations.
NOTE: Drill the holes with a 3/16″ bit, penetrating through the tile
only when mounting directly to a stud. If the bracket is not being
mounted directly to a stud, drill the holes using a 3/8″ drill bit.
Drill a hole at each mark.
If required, insert wall anchors into the holes following the
directions in the ″Install the Anchors″ section.
Position the wall bracket against the finished wall with the
tapered end of the groove down.
Secure the bracket with the provided screws.
Wall
Bracket
Wall
Bracket
Screws
Kohler Co. 5 089408-2-AC
