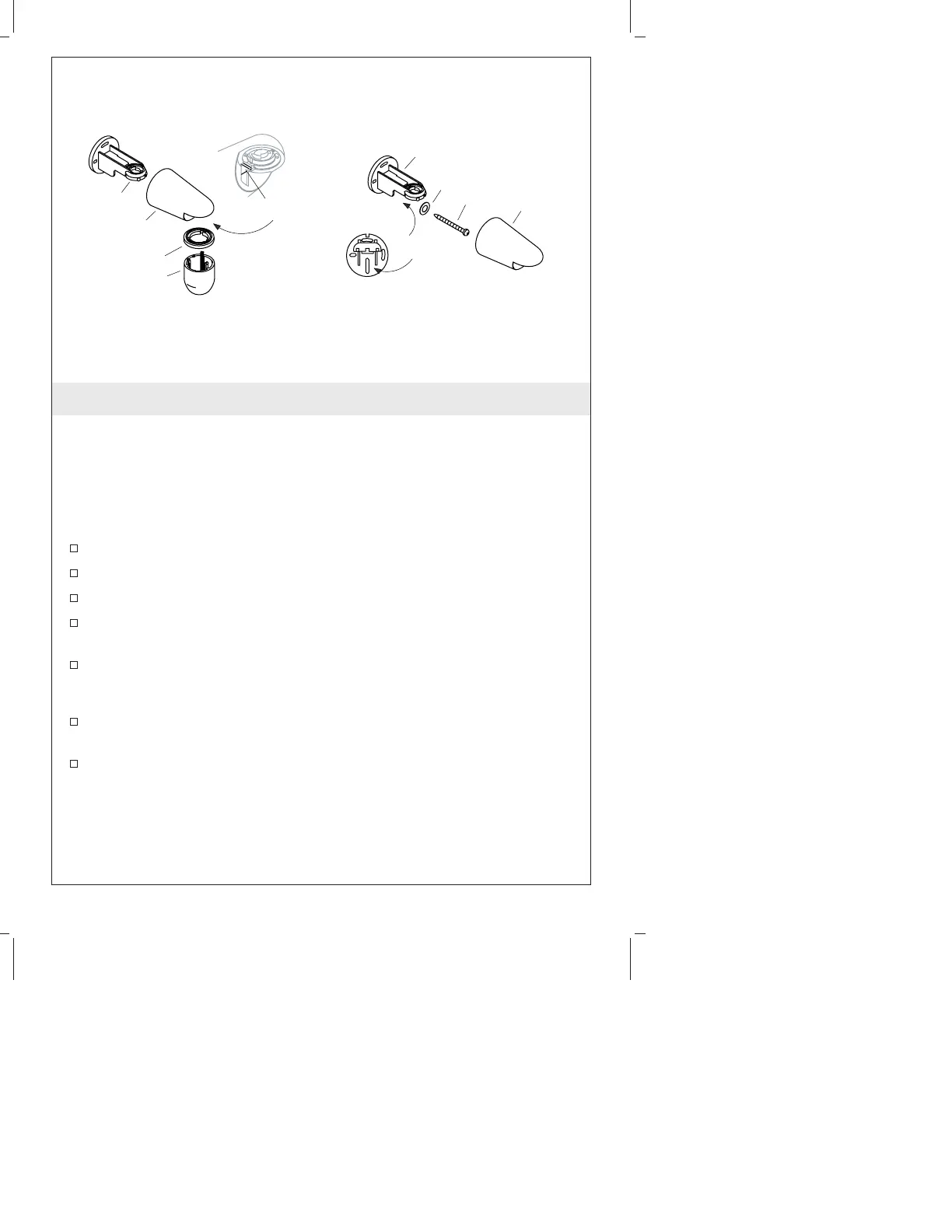

5. Install the Top Bracket
IMPORTANT! The slide bar must be mounted to stud framing
supports at both the top and bottom. Wall anchors will not support
the slide bar.
NOTE: This accessory should not be installed in the area 24″ (61 cm)
to 48″ (121.9 cm) from the floor (the critical support area as defined
in ASTM F446).
Separate the top cover and housing by pulling firmly.
Remove the ring.
Press the tab, and separate the housing from the bracket.
Position the bracket on the finished wall, and mark the top
location of the centermost slotted hole.
Drill a hole at the marked location.
NOTE: Do not use wall anchors.
Position the bracket against the finished wall, and loosely attach it
to the finished wall with the provided screw and washer.
Fit the housing over the bracket, and snap it into place.
Tab
Bracket
Top Housing
Ring
Top Cover
Bracket
Slotted Hole
Front View
Washer
Screw
Top
Housing
089408-2-AC 6 Kohler Co.
