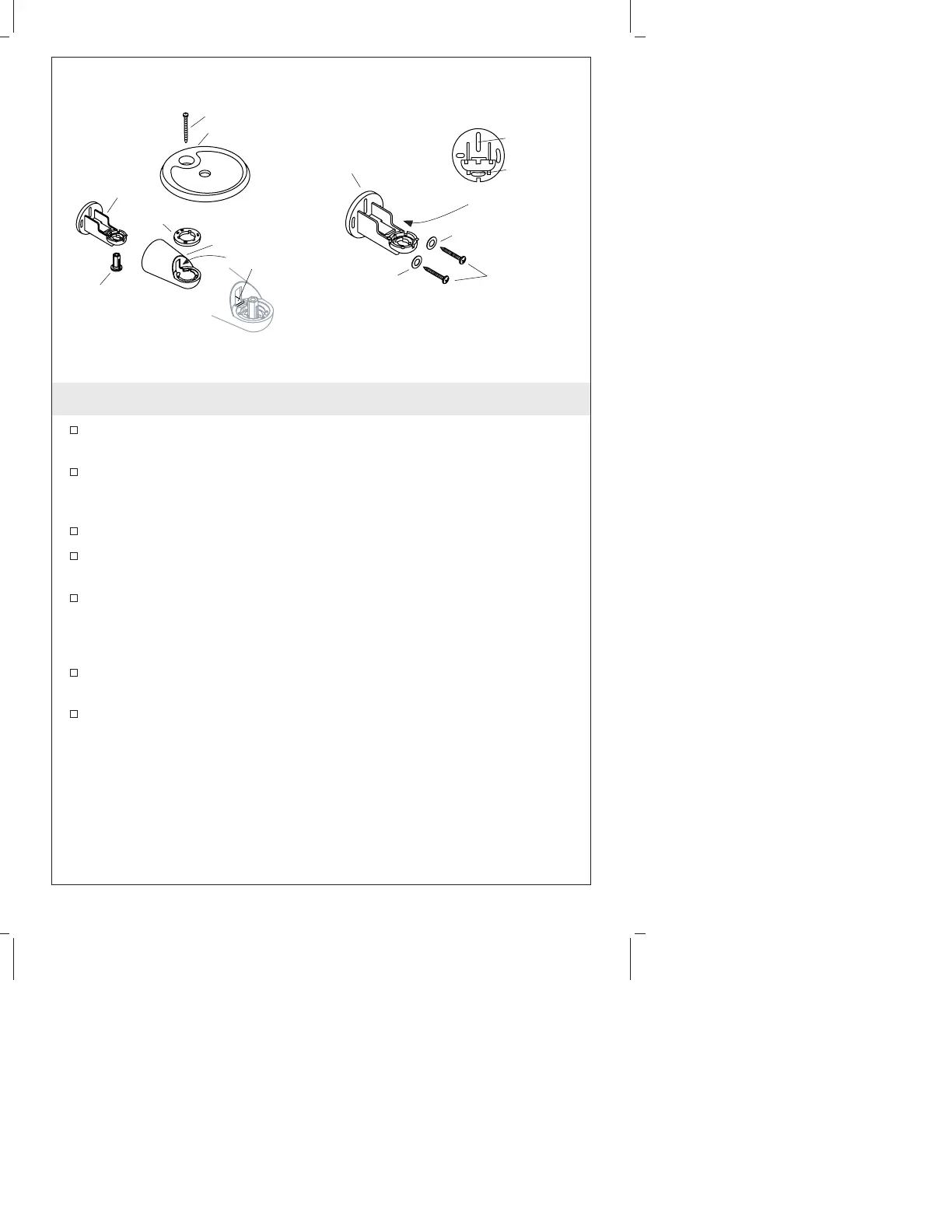

6. Install the Bottom Bracket
Press the bottom cover housing tab, and separate the housing
from the bracket.
Using a tape measure and level, make a pencil mark on the
finished wall exactly 22-3/4″ (57.8 cm) down from the center of
the top bracket assembly.
Push the stop out of the bracket.
Center the bracket over the mark, and mark the top and bottom
hole locations.
For tile or solid surface materials, drill a hole at the marked
locations.
NOTE: Wall anchors are not required for this installation.
Attach the bracket to the finished wall with the screws and
washers provided.
Tighten securely.
Screw
Ring
Tab
Stop
Bracket
Soap Dish
Bottom
Housing
Bracket
Washer
Washer
Screws
Front View
Top Hole
Bottom
Hole
Kohler Co. 7 089408-2-AC
