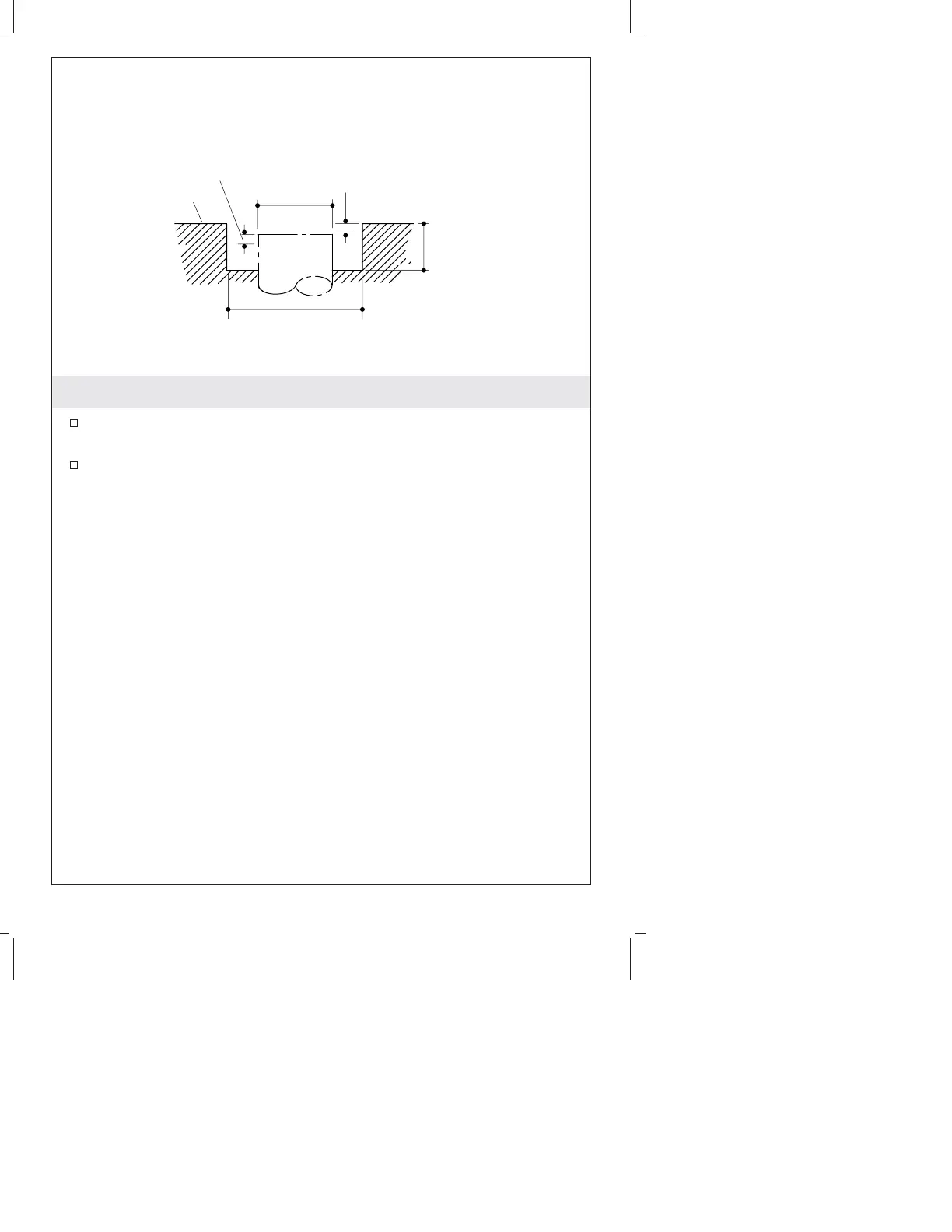

1. Prepare the Site
The 2″ NPT (2-3/8″ OD) drain pipe must extend as specified for
the fixture. Consult the fixture installation instructions.
Provide a 4-5/8″ (11.7 cm) D. minimum hole in the subfloor to
accommodate the 4-1/2″ (11.4 cm) shower drain nut. Provide a
minimum working depth of 1-1/2″ (3.8 cm) to accommodate the
shower drain nut, washer, gasket, and strainer body.
4-5/8"
(11.7 cm) Min
2" NPT
2-3/8" OD
1-1/2"
(3.8 cm)
Min
1/4" (6 mm)
See fixture
instructions.
Subfloor
1032220-2-B 4 Kohler Co.
